Quick start

1. Set up OpenProcessor​

Cropwright is the labeling frontend of OpenProcessor and lives in the same repository (frontend/). It runs as the cropwright profile of OpenProcessor's own compose project, on the project's network, so there is no separate network, image repository or .env to set up. Install or start OpenProcessor first (see Getting started); the API prefix is OP_API_PREFIX=/curation by default.

2. Configure it​

The defaults work out of the box. These optional settings go in the same .env as the rest of the stack:

VariableMeaningDefault
API_UPSTREAMWhere nginx proxies API calls, by service name over the compose networkhttp://op-api:8000
PUBLIC_API_PREFIXMust equal the backend's own OP_API_PREFIX/curation
OP_CROPWRIGHT_PORTHost port to publish5184
OP_UI_BIND_ADDRESSAddress the Cropwright port (and the monitoring UIs) is published onOP_BIND_ADDRESS, then loopback

See Environment variables for the full list, including white-label, bind-address and upload-cap options.

3. Start it​

docker compose --profile cropwright up -d

From a source checkout, docker-compose.dev.yml builds the image from ./frontend:

docker compose -f docker-compose.yml -f docker-compose.dev.yml --profile cropwright up -d --build cropwright

Open http://localhost:5184 (or whatever OP_CROPWRIGHT_PORT you set). The image runs nginx as a non-root user (uid 101) listening on container port 8080; Compose maps OP_CROPWRIGHT_PORT to it. The same origin also serves the backend's API reference (/docs, /redoc, /openapi.json) and, when the docs service is running (docker-compose.docs.yml), this documentation; the top-bar Resources menu links to them.

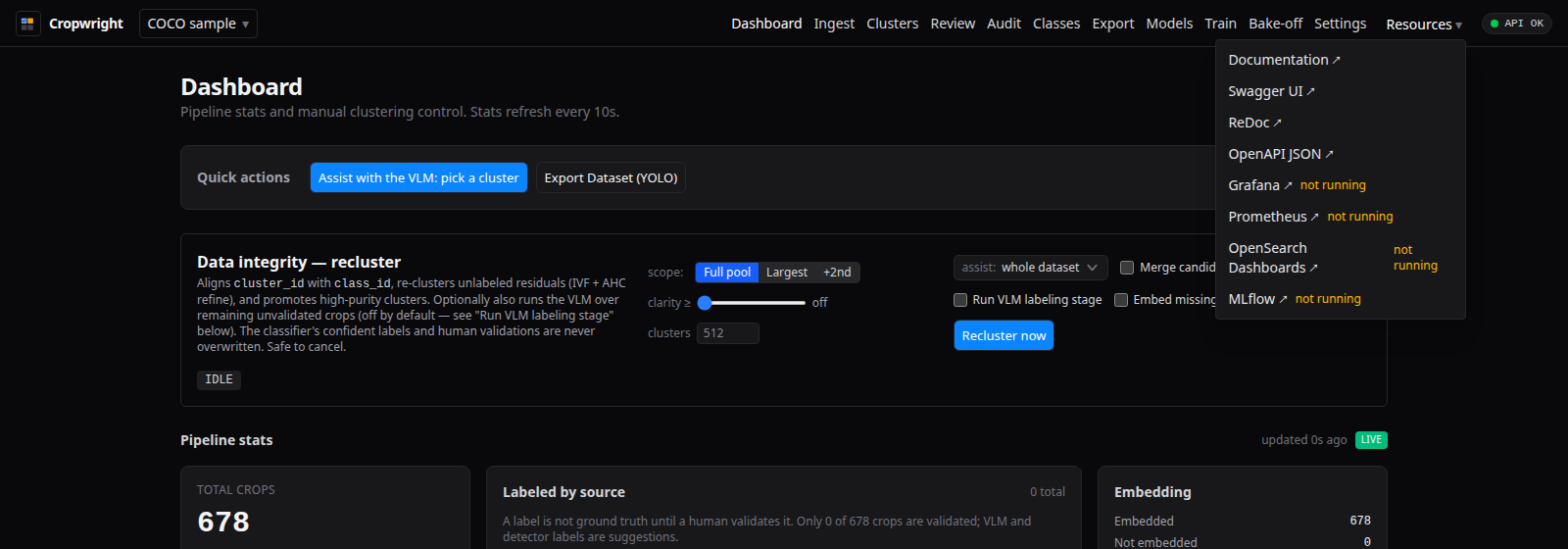

Resources menu — the bundled docs, then exactly the links the backend serves

For frontend development see Development setup.

4. Verify the connection​

  • Look at the top-bar status chip — it polls {PUBLIC_API_PREFIX}/health and turns green when the backend answers.
  • Or from a shell:
curl http://localhost:5184/curation/health

(swap in your own port/prefix.)

Trying it with sample data​

For a new install with no images yet, OpenProcessor ships a script to fetch a small public COCO val2017 subset as sample data (never bundled with the app itself). From the repository root:

make sample-coco-readme   # 200 images, 20 per class
# or: make sample-coco    # the larger 800-image set

Then ingest it through /ingest's server-path panel, pointing at the sample folder the backend mounts under its configured batch source roots — that panel only appears when the backend advertises at least one source root.

5. Pick or create a project​

Cropwright opens in the deployment's default project. Use the project switcher in the top bar, or /projects, to create another; see Projects. Already have labeled data? Use Dataset import.

The end-to-end workflow​

/ingest  ->  /review + /clusters  ->  /classes  ->  /export  ->  /train  ->  /bakeoff  ->  back to /review

Bring images in, label and triage them, manage the class registry, freeze a test holdout and export a YOLO dataset, train and promote a model, compare models, then loop back — Model Disagreements on /review surfaces where a newly promoted model and the human label diverge, feeding the next cycle.

Next steps​
