Accuracy audit (/p/<project>/audit)

The audit answers one question: how often are the detector and the VLM right on this project? A VLM label is only a suggestion until a human confirms it, so the page draws a sample of machine-labelled crops, you label them, and the backend reports precision per class.

Everything on the page is served by the backend. Cropwright does not count, average or judge anything. The audit routes are POST /curation/projects/{project}/audit/start, GET /curation/projects/{project}/audit/queue and GET /curation/projects/{project}/audit/report; how the sample is drawn and what the report means is in the curation workflow.

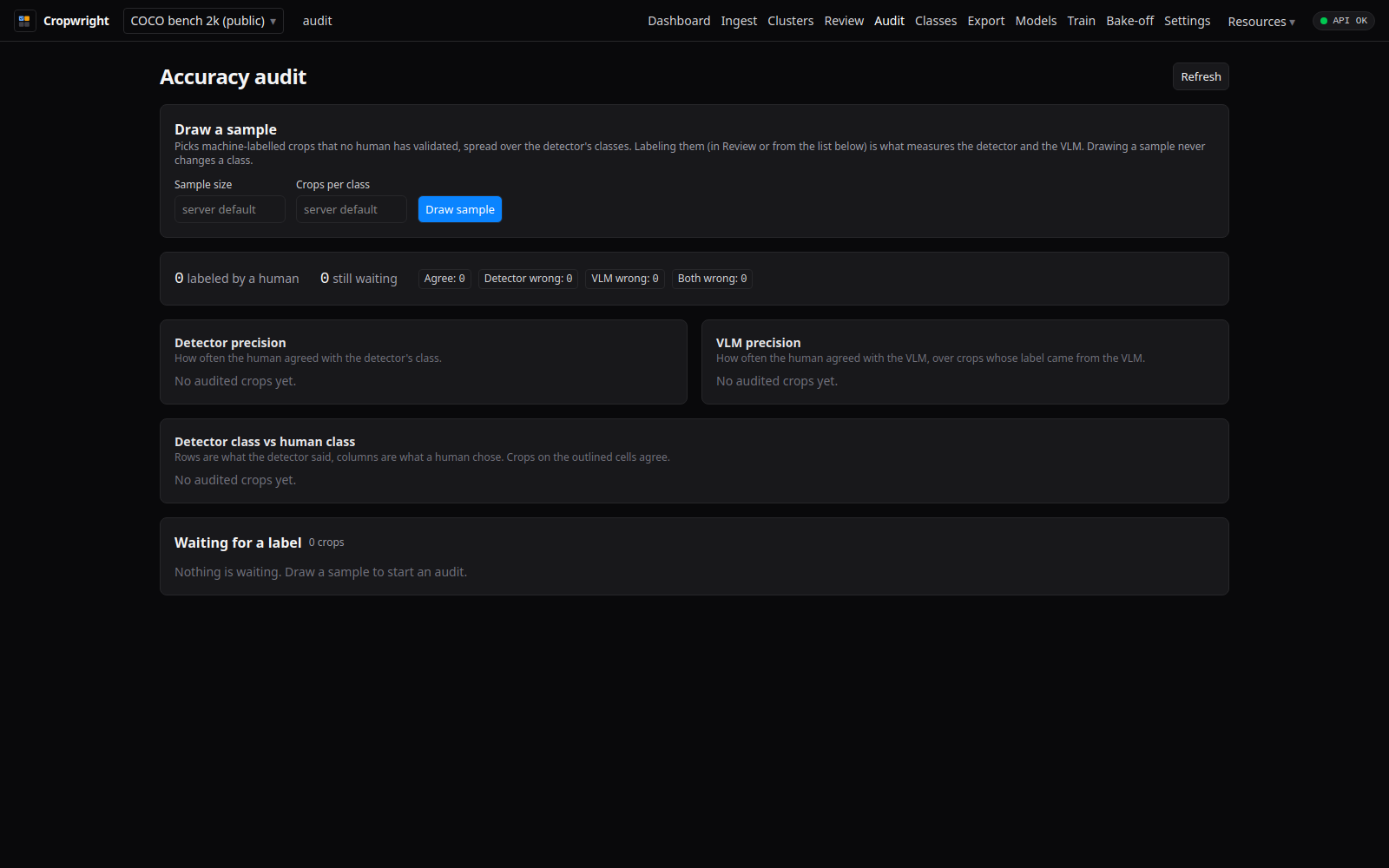

Accuracy audit: draw a sample, label it, read the precision tables

1. Draw a sample​

  1. Open Accuracy audit in the top bar.
  2. Under Draw a sample, optionally set Sample size (the total number of crops, your human-time budget) and Crops per class. An empty field is not sent, so the backend default applies.
  3. Click Draw sample.

The sample is machine-labelled crops that no human has validated, spread over the detector's classes. Drawing a sample never changes a class.

Expected result: a line "Drew N of the M requested crops", and one chip per detector class showing class: sampled of available. An amber chip means the budget left that class fewer crops than Crops per class, although more exist. Raise Sample size or lower Crops per class and draw again.

If there is nothing to draw, the backend answers 409 audit_no_candidates and the form shows its message.

2. Label the sampled crops​

The queue at the bottom of the page lists the drawn crops that still wait for a human label. Each row links to Review on that crop. Confirm or change the class there. Your label is what measures the detector and the VLM, and automated writers never overwrite it afterwards.

3. Read the report​

Click Refresh after labeling. The page shows:

  • labeled by a human and still waiting: how many drawn crops are done and how many are pending, plus the outcome counts (agree, detector wrong, VLM wrong, both wrong).
  • Detector precision: per detector class, how often the human agreed with the detector, with a 95% interval.
  • VLM precision: per class, how often the human agreed with the VLM, over crops whose label came from the VLM.
  • Confusion matrix: rows are the detector's class, columns are the human's class, cells are crop counts. A large off-diagonal cell is a class pair the detector confuses.

A class with too few audited crops is dimmed and marked as an insufficient sample. Do not trust its precision yet; label more crops of that class.

Why it matters​

Automatic promotion of cluster labels is gated on this audit. A class needs enough audited crops and a high enough detector precision before POST /curation/projects/{project}/clusters/auto_promote will validate it; otherwise the backend answers 409 audit_required or 409 audit_precision_low. Cropwright has no screen for that call, so run the audit here first and let the backend promote. See Clusters and the curation workflow.

Troubleshooting​

SymptomCause
The page shows an error and RetryThe report could not be read from the backend. Check the status chip, then click Retry.
"Draw sample" shows audit_no_candidatesNo unvalidated machine-labelled crop with a detector class exists. Ingest and let the detector run first.
Report shows 0 labeledYou drew a sample but have not labeled any of it yet.
