Ingest (/p/<project>/ingest)

Bring images into the current project's pool. The ingest router is always mounted, so the nav link always appears — the page itself reads the backend's served ingest config before showing any upload UI.

Served on/off switches​

Both upload paths are switches the backend controls per project, not something Cropwright decides on its own:

  • If browser upload is disabled on the deployment, the upload panel is replaced with a single line saying so.
  • Server-path ingest (bulk ingest and the paste-a-few-paths panel) only appears when the backend both enables it and has at least one configured source root.

Browser upload​

Files, folders, and drag-and-drop, chunked to the backend's served per-request cap with bounded concurrency (default 2 in flight). Already- indexed identifiers are pre-filtered via a lookup call before anything uploads. Each file's result — ingested, duplicate, or failed with a stable error code and the backend's own reason — shows in a table with pause, resume and cancel.

An amber "uploads aren't kept" banner appears only when the backend reports that it doesn't persist uploaded bytes server-side. A stock deployment persists them (content-addressed), so this banner is normally absent.

Bulk ingest (folder or manifest)​

Starts a background run over a folder, or a manifest listing image paths, that the backend already has mounted under a source root. The roots are listed above the form. Mounting a share, trial runs, timing and disk are in the Ingest a large folder guide.

  1. Choose Folder or Manifest.
  2. Enter the path as the backend sees it (it starts with the root, for example /data/source).
  3. Press Start bulk ingest. Advanced has file extensions, images per batch and batches in flight; the placeholders are the backend's defaults.

The run belongs to the backend, the same one scripts/curation/bulk_ingest.py drives, so it keeps going if you leave the page and the page picks it up when you return. While it runs the panel shows what the backend serves: images found so far (a folder is scanned while it runs), ingested, duplicate and failed counts, the speed over the last 30 seconds and over the whole run, the time left and a "Where the time went" table of seconds per stage.

  • Cancel stops after the batches in flight; images already stored stay stored.
  • Resume appears after a cancel, a backend restart or a run that finished with failed images. It starts the same source again and skips what is already stored.
  • Failed images are listed with the reason for each.
  • Only one run per project can be live; a second start shows the backend's answer.
The bulk ingest panel: the backend's source roots, folder or manifest, and Start
A run in progress

Sources (S3 buckets and watched folders)​

The Sources panel keeps a project fed from an S3 bucket prefix or a server folder. What may be read is set on the deployment (the bucket allow-list and credentials live in the API's environment, see Ingest from S3 and watched sources); Cropwright never asks for or shows a credential. If S3 is not allowed, the form says so and only Server folder is offered.

  1. Press Add a source, name it, and choose S3 bucket (bucket and prefix) or Server folder.
  2. Pick triggers: Watch every N seconds, On a schedule (five-field cron, UTC), and for S3 Accept S3 event notifications (webhook). With none, the source runs only when you press Run now. Options has file extensions, batch size and concurrency.
  3. Save. Each source then shows what the backend serves: counts (pending, ingested, retrying, gave up), last and next poll or fire, the webhook path and its event counts, the scan in progress, the last run and the objects that failed with the reason.
  • Run now scans the source and drains its queue. When the backend cannot run it (a run of this project is live, S3 not allowed), the button is disabled and the backend's reason is shown next to it.
  • Retry the N that gave up queues failed objects again.
  • Edit changes the name, triggers and options; the location cannot change.
  • Remove asks first. Images already ingested stay in the project.

The panel refreshes on the interval the backend serves.

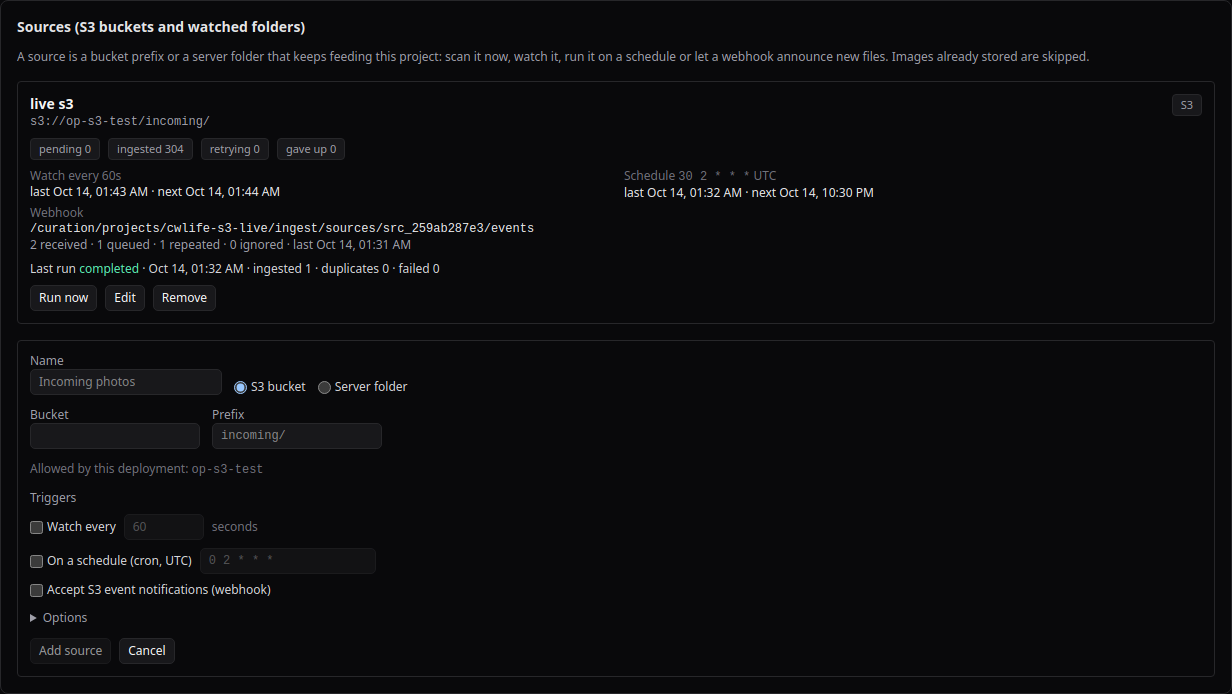

The Sources panel: a source card and the create form (S3 bucket, triggers, options)

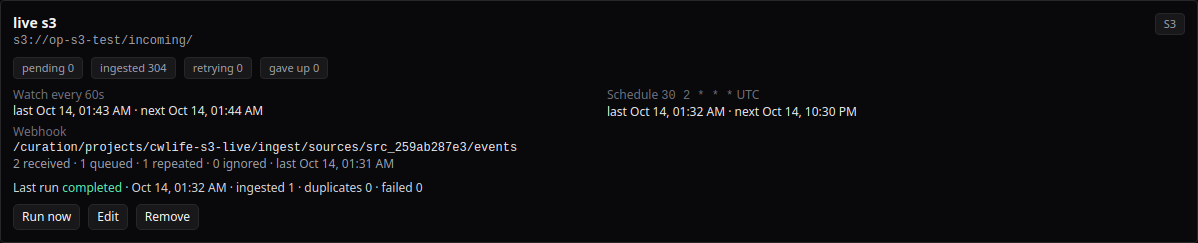

A source card as the backend serves it

Verified live. On the dev stack with a real MinIO and public COCO images: adding an S3 source (bucket op-s3-test, prefix ui/), Save and Run now ended with "Last run completed · ingested 5 · duplicates 0 · failed 0" and counts pending 0, ingested 5, retrying 0, gave up 0. Remove asked for confirmation and the 5 images stayed in the project. With the allow-list narrowed to another bucket the card showed Run now disabled with "This bucket or prefix is outside OP_S3_ALLOWED" and the watch error with its retry time. The Ingest page at 430 px wide had no horizontal overflow (scrollWidth 430, clientWidth 430; 1600/1600 at desktop width). The server-side checks (idempotent re-run, webhook, poll, cron, a rejected credential, project isolation) are in Verified on a live stack. On a second pass: a Server folder source (path under a source root, watch every 10 s) ingested its files, picked up a file added later without a click and ingested 0 on Run now again. For objects that gave up (a text file named .jpg, an empty file), the card showed Retry the 2 that gave up; after the click it read pending 2, gave up 0 and the button disappeared (the button only queues them, so a source with no trigger needs Run now), and Run now ended with ingested 2. The button is not shown when nothing gave up. With S3 off on the deployment the S3 sources show Run now disabled with "S3 is off on this deployment: OP_S3_ALLOWED is empty" and the form offers only Server folder; if the list cannot be loaded the panel shows "Could not load sources: ..." and no cards, and recovers by itself.

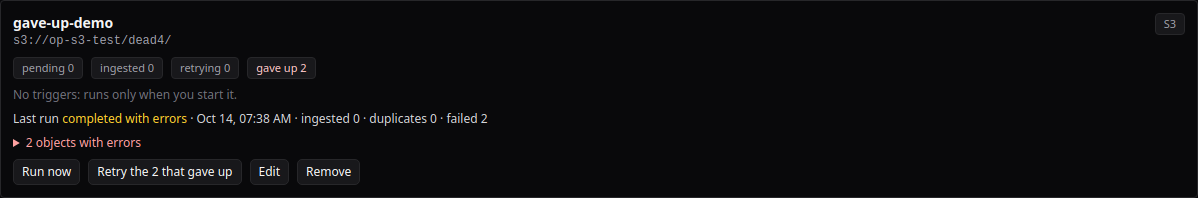

A source with objects that gave up: the Retry button

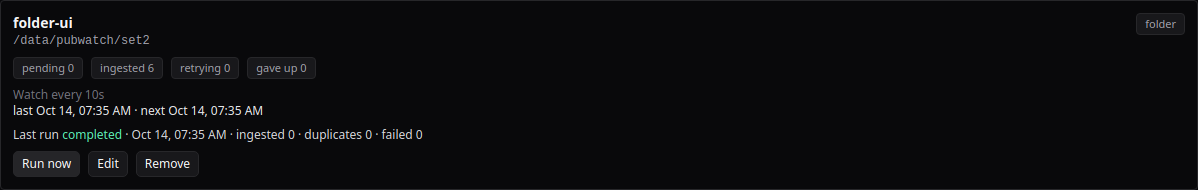

A Server folder source

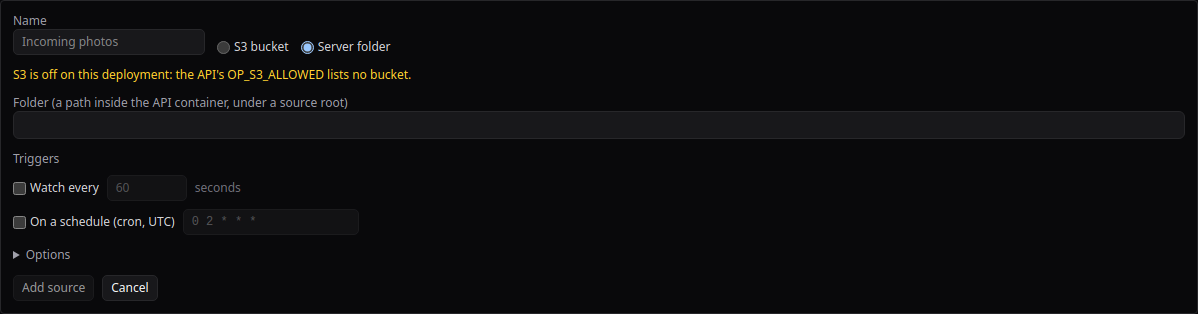

S3 off on the deployment: the form offers only Server folder

Server-path batch ingest​

Points at a folder the backend already has mounted (for example, OpenProcessor's sample-data output) rather than uploading bytes through the browser.

Importing an already-labeled dataset​

When the backend supports it, a link on this page opens the dataset import wizard, for images that already come with labels.

Detector and ingest policy​

When the backend reports a detector, the page shows a card for it, and a policy decides what an ingest keeps and which detections get a vector. See Detector and ingest policy. The run and batch panels also show how many detections were embedded, not embedded or filtered out.

Ingest status and region drain​

A status table by source, and — with a served region profile — a region-drain panel showing whether the backend has finished processing everything ingested so far. The clustering handoff below waits for that served "drained" verdict before treating the pool as ready.

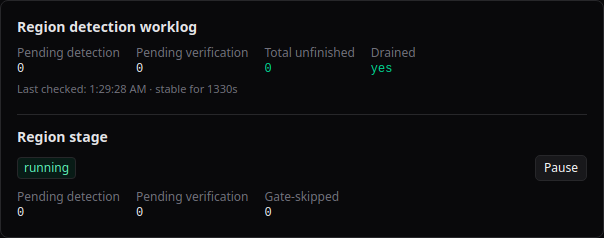

Region stage — the worklog counts, the running or paused state and the Pause control

Clustering handoff​

Reuses the same AutoLabelPanel as the dashboard, gated on the drain verdict above.

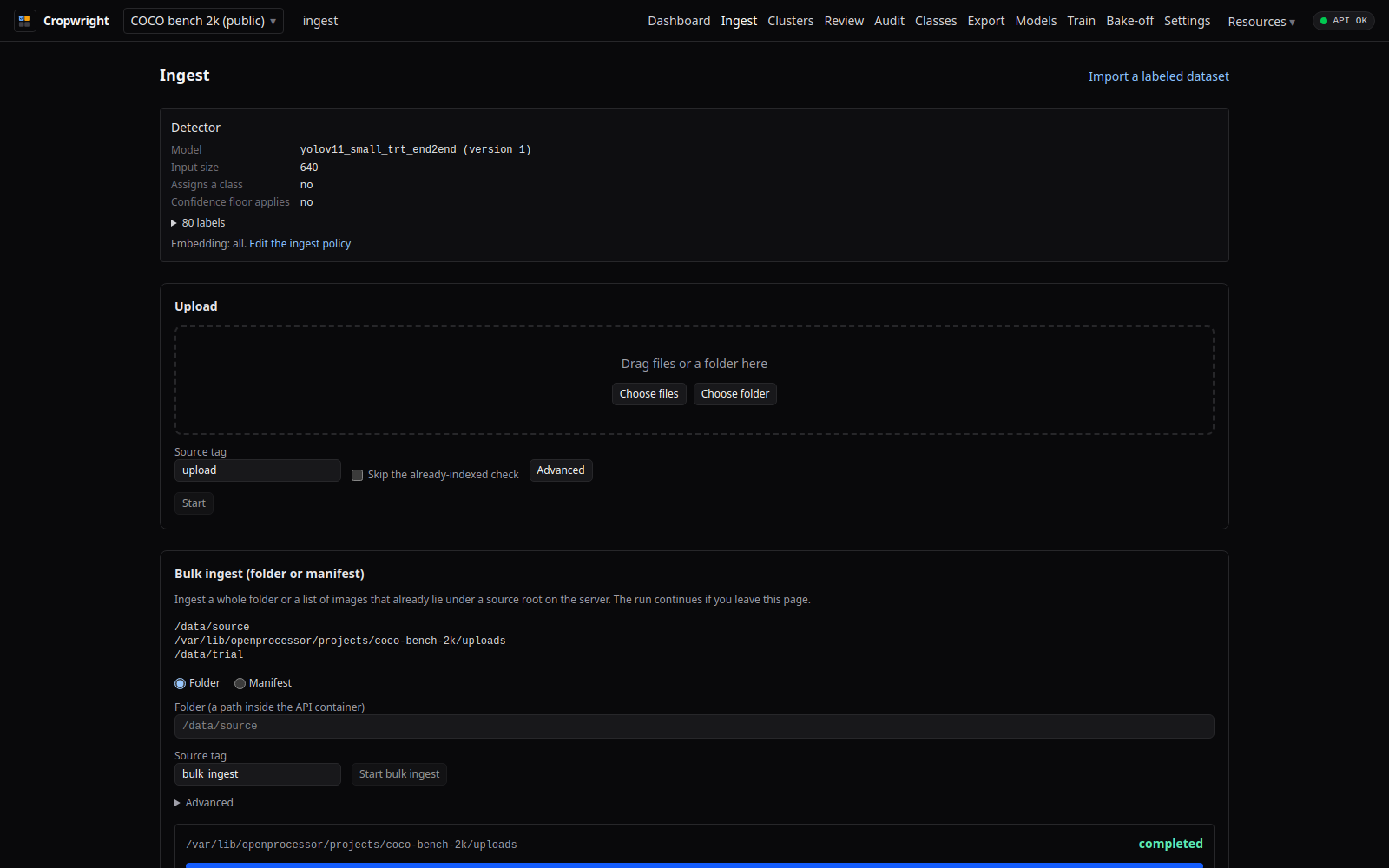

Ingest — upload run panel and status table
