Multi-box regions

An item can carry any number of region boxes, each with its own state. The data model and the API are in the Multi-box regions guide. Cropwright sets no limit of its own; the only cap is the backend's per-write limit, shown as "N / max" next to Add box.

Box states

Boxes are drawn in the colour of their state, using the vocabulary the backend serves: accepted boxes are green, proposed boxes amber, and rejected or false-positive boxes dashed grey. Cards, the details panel and the source image overlay all show every box.

Reviewing a region item

On the region tab of Review:

Action	Default key	Effect
Accept selected box	Y	Saves that box as accepted immediately; the queue does not advance.
Reject selected box	R	Saves that box as rejected immediately; the queue does not advance.
Select next box	Tab	Cycles through the item's boxes.
Confirm	Enter	Confirms every box that is still proposed, and any pending geometry edit, in one write. Boxes you already rejected or marked false-positive are left as they are.

A whole-item confirm never overrides a per-box decision you made. The on-screen buttons do the same as the keys. The keys are configurable, and a key reserved by an action can't be bound to a class.

Editing boxes

Edit mode (E) lets you select, move, resize, add and delete boxes on the canvas, with the arrow keys nudging the selected box and [ / ] adjusting its edge. Save writes the whole set in one request; cancel discards your changes. The same editor opens from the pencil on a crop card, where saving doesn't imply confirming anything. A lock icon marks a box a human set that the backend won't overwrite.

Saves are checked against the item's current revision. If the item changed under you (another reviewer, a reprocess), the backend rejects the write, Cropwright adopts the current item it returns, and you retry from there. An item whose set of boxes is incomplete shows a chip.

The region gallery

The region gallery on /clusters shows item and box counts side by side, and adds a Box state filter. Opening a region cluster and triaging in bulk changes the box state of the selected boxes, not their sibling boxes on the same item. A "rows truncated" chip appears when the backend cut the listing short.

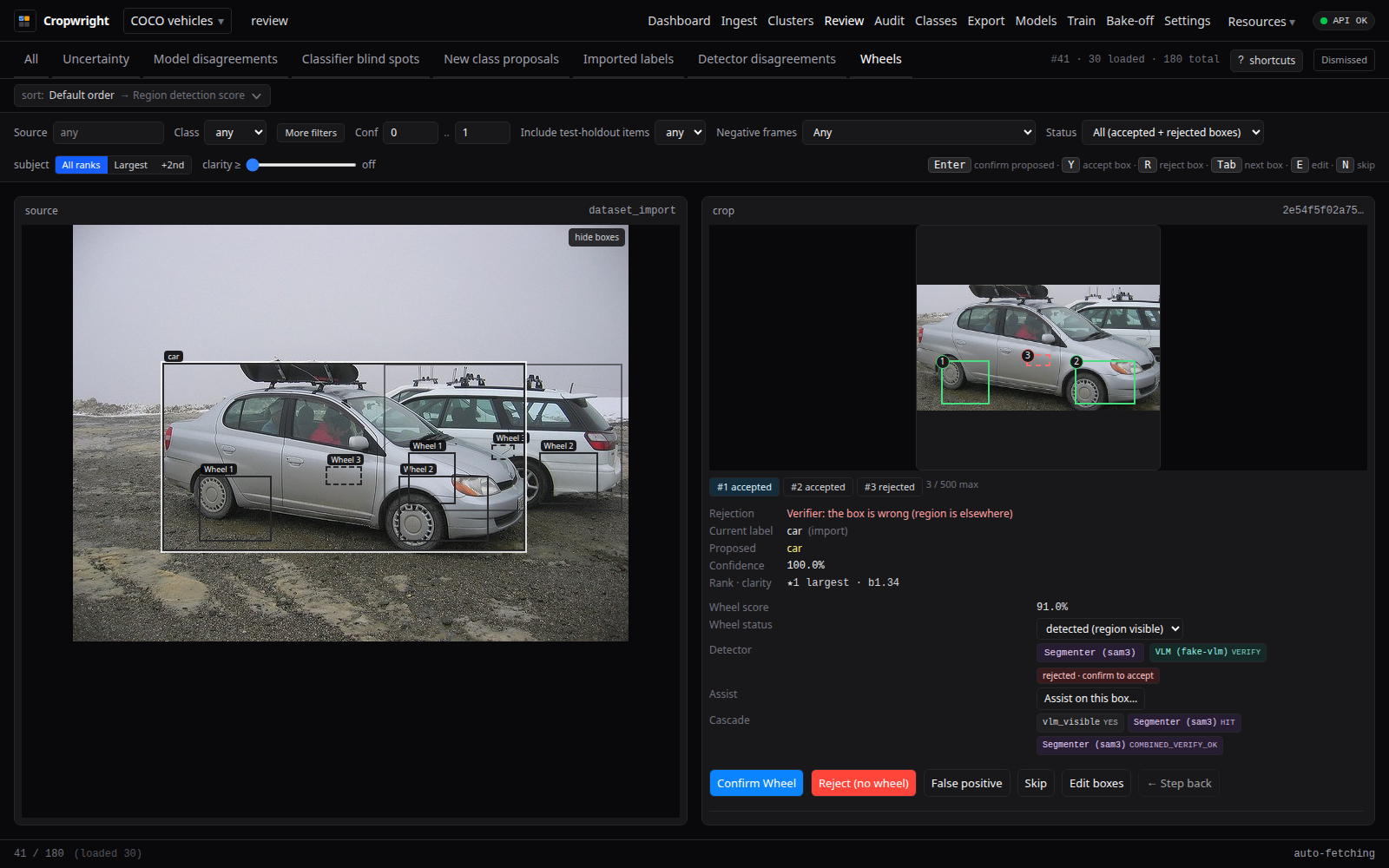

Region review — several boxes on one item, each with its own state

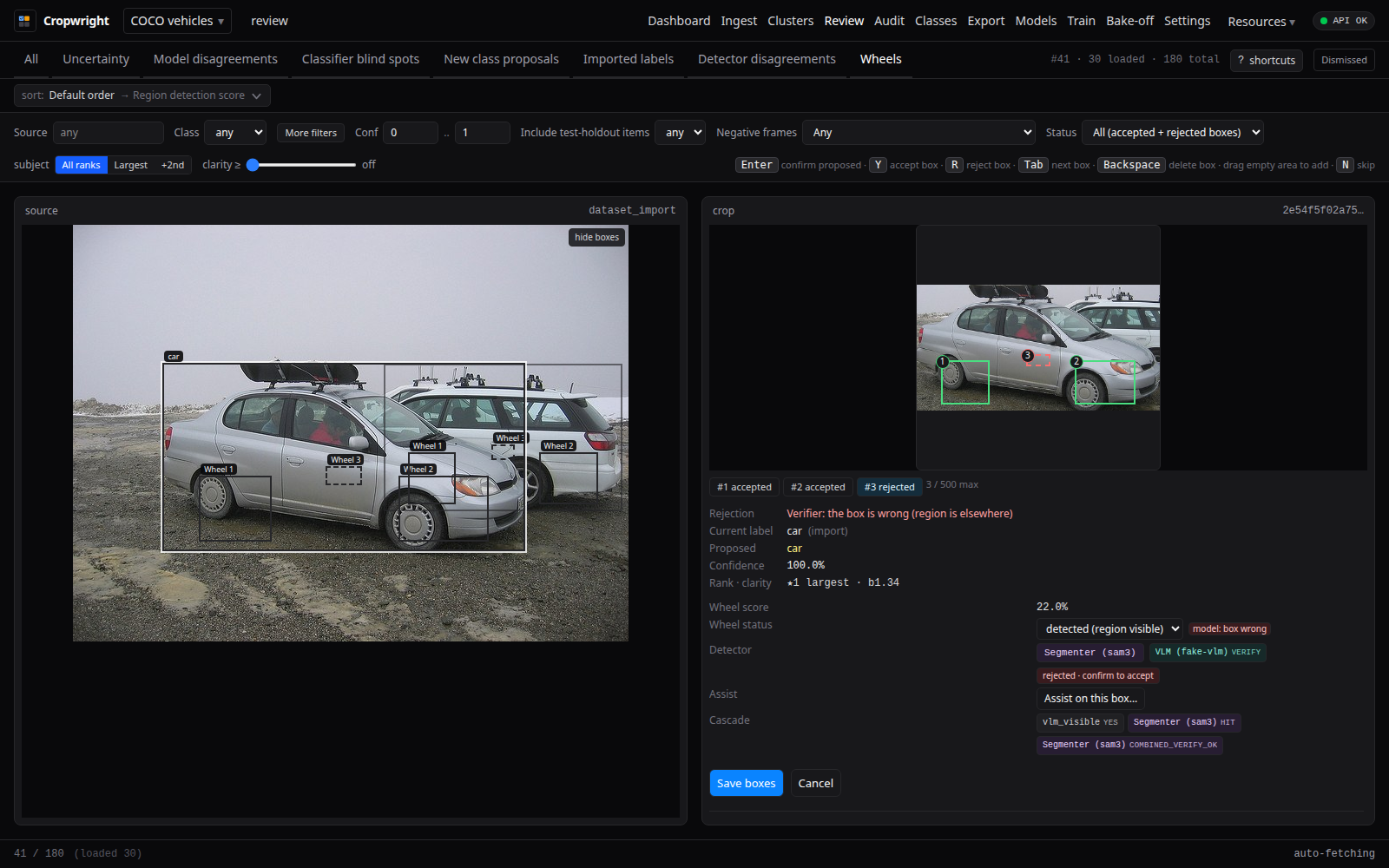

Box editor — select, move, add and delete boxes

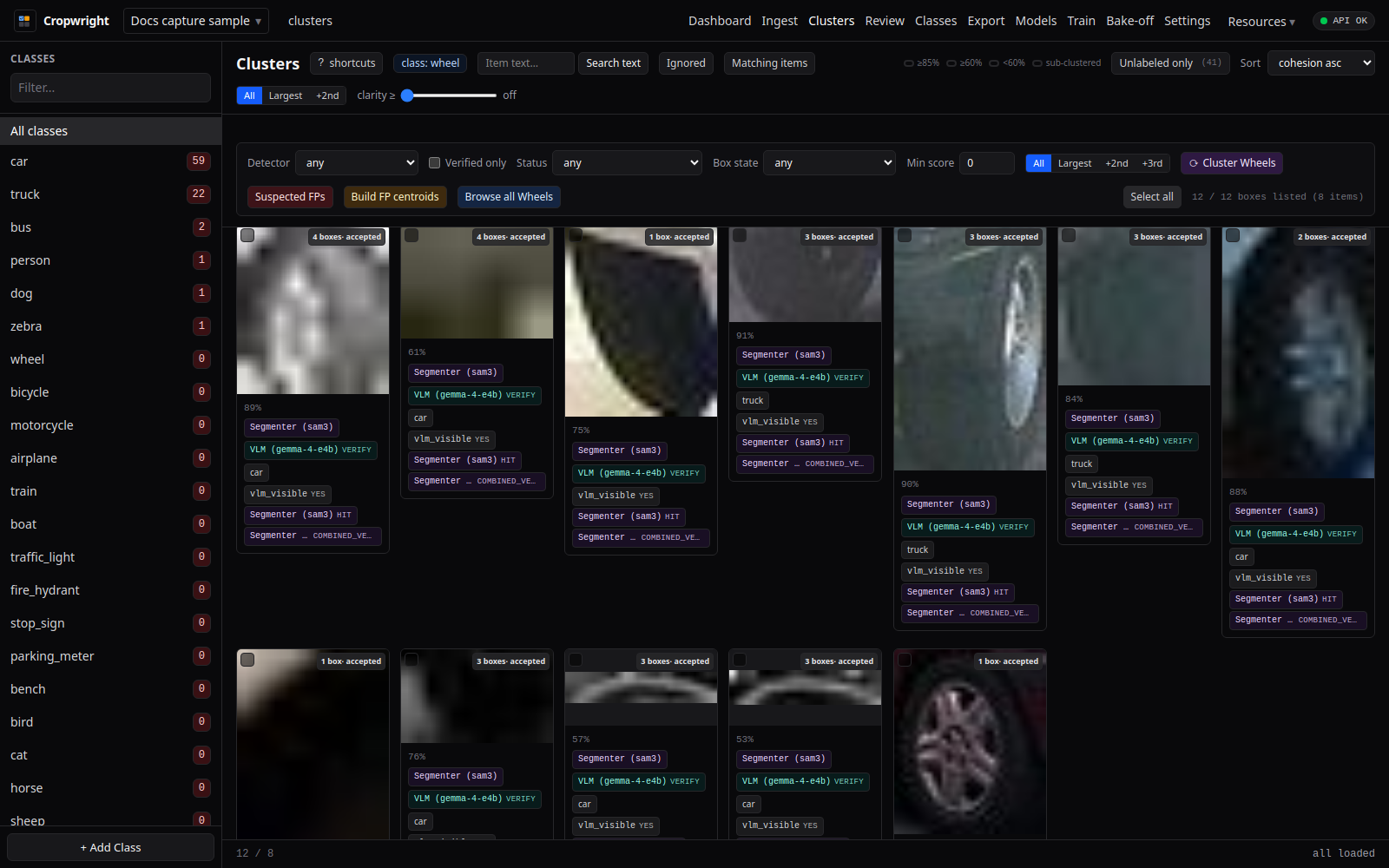

Region gallery — read the toolbar count as boxes listed versus items (12 / 12 boxes listed, 8 items)
