Open-vocabulary sets (/p/<project>/settings/open-vocab)

This page covers the editor. What a set and a target are, discovery mode and the API path are in the Open-vocabulary guide.

The pages appear only when the backend serves open-vocabulary sets; otherwise Settings has no Open-vocabulary card. Whether the segmenter is configured and reachable is shown on both pages. A set can be prepared before the segmenter is ready, so the editor is never disabled by it.

The list​

/settings/open-vocab lists the project's sets and the read-only templates the backend ships.

  • Create starts a new set; the backend fills in the defaults.
  • Clone copies a set or template into a new editable set, or the set of the same name from another project ("Copy from another project").
  • Delete removes a set (confirmed).
  • The active set panel offers Rollback and Turn off, both confirmed.

The editor​

/settings/open-vocab/<name> has one row per target, with the common fields inline and the advanced ones in a per-row expander. The class cell suggests the project's classes but accepts any text. Set-level and gating fields are drawn from the backend's own schema. Nothing is validated in the browser: a moment after you stop typing, the draft goes to the backend, and each problem it finds appears next to the cell it names.

  • Save writes a new revision. If the set changed since you opened it you are offered Reload or Keep my edits.
  • Revisions. Open an older revision read-only, Restore as new revision, or Activate a specific one.
  • The backend's own limit on enabled targets is shown as a fact; the validator, not the page, refuses a set with too many.
  • Check the draft for activation runs the activation checks without activating.

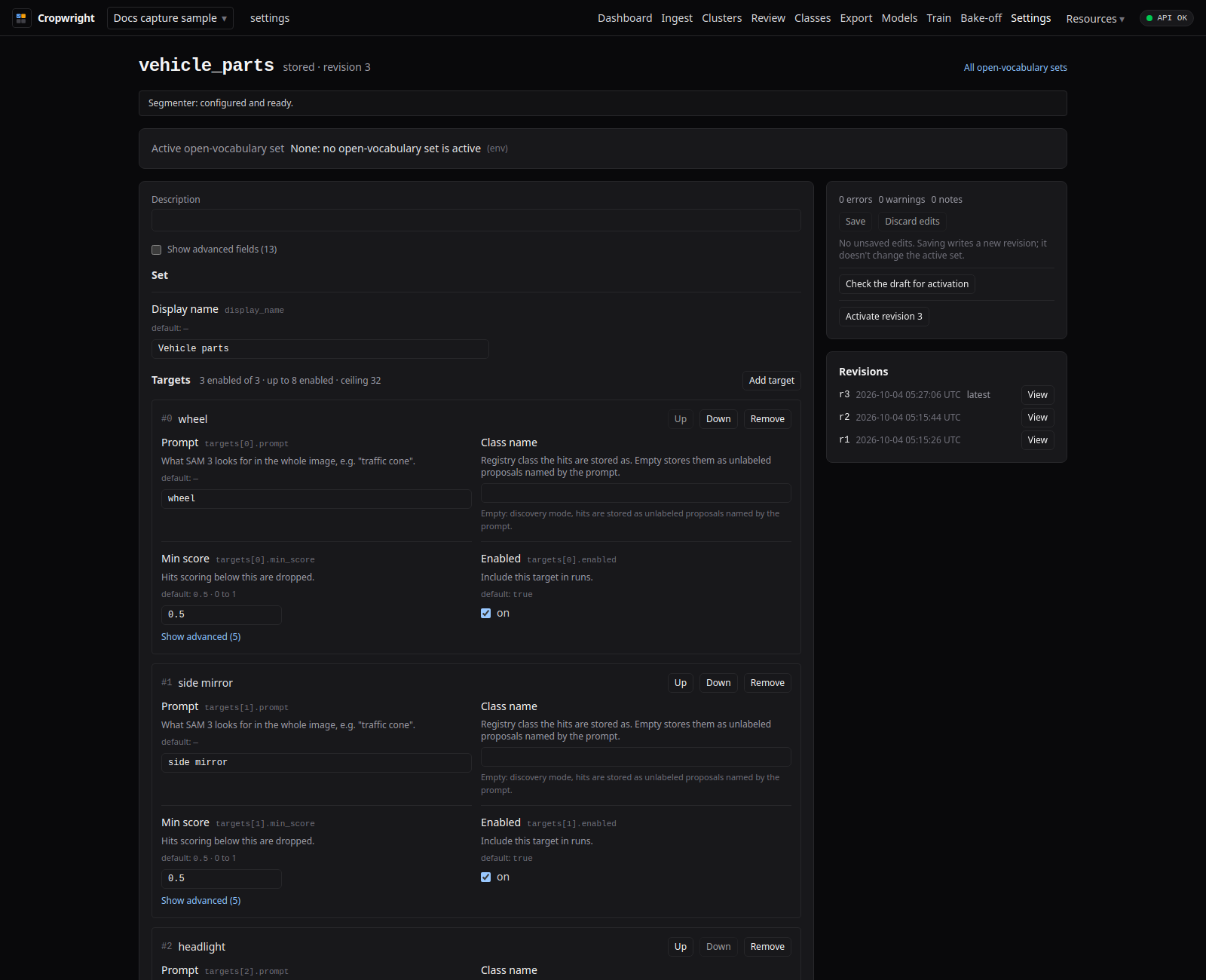

Open-vocabulary editor — the segmenter notice, set fields and one row per target

Activating​

Activating pins the revision you are looking at and asks for confirmation. Activate anyway appears only when the backend's report says the check can be overridden.

Test on one image​

The Test panel runs one target (any row of your draft, or the saved revision) on one image, without storing anything. The image is a stored crop's source image or a file you upload. You can tick the optional VLM pre-check. The result shows the gate decision and each hit with its score, whether it was selected, and why a dropped hit was dropped. Hits are drawn over the image, with dropped ones dimmed. A segmenter error is shown as an error, never as "no hits".

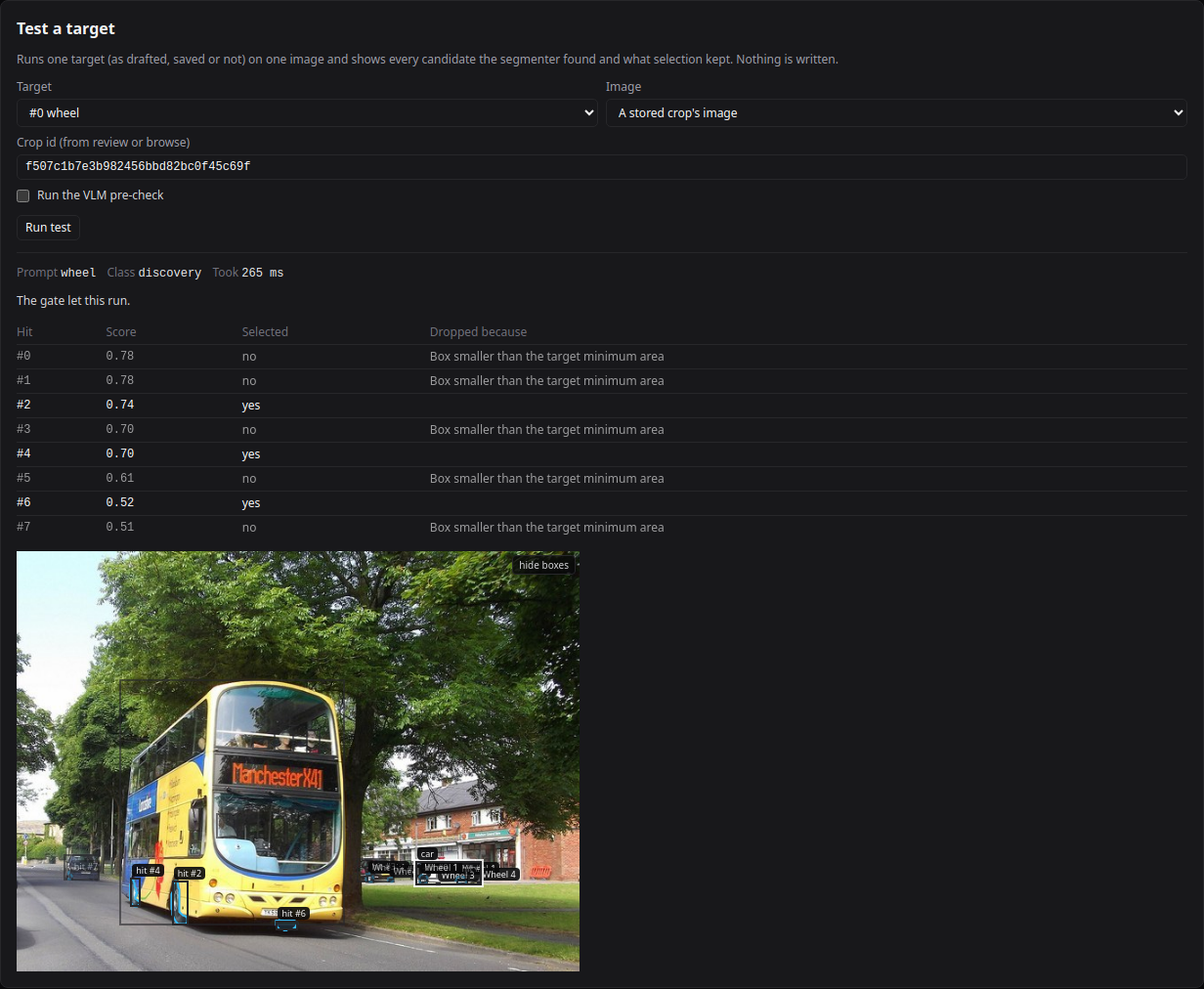

Test a target — every hit with its score and why dropped hits were dropped, drawn over the image

Run on existing images​

While a set is active, the list page offers re-run buttons that apply it to images already in the project: all images, or only those whose open-vocabulary status is pending, skipped_gate or failed. Each opens the same dialog as Reprocess: a dry run first, then the real run behind a confirmation.

Where the hits show up​

An item found by a set carries its prompt, the set and revision, and a "Show matching items" link on its detail panel. That link opens Matching items filtered to that set and prompt.

The region stage's own pause, resume and re-run gate-skipped controls are on the Ingest page.
