VLM models (/p/<project>/settings/models)
The vision language model (VLM) suggests labels and verifies regions. The VLM registry lets you register more than one VLM endpoint, test each, and choose which one each project uses. The registry is shared by every project; the choice of active endpoint is per project. The pages appear only when the backend serves the registry; without it there is no Models card on Settings and no link from Models.
A new project has no VLM: the page shows off: no VLM runs for this project until you
activate an endpoint, the backend's built-in env endpoint included. Turn off
switches an active project back to that state. Which pipeline settings to use, and why, is
in Pipeline modes; the endpoint, activation and
policy routes are in VLM selection.
Secrets stay on the host
An endpoint that needs an API key stores only a reference to a secret held by the backend host. Cropwright shows the reference and whether the host actually has that secret; it never reads, displays or asks you to type the key itself.

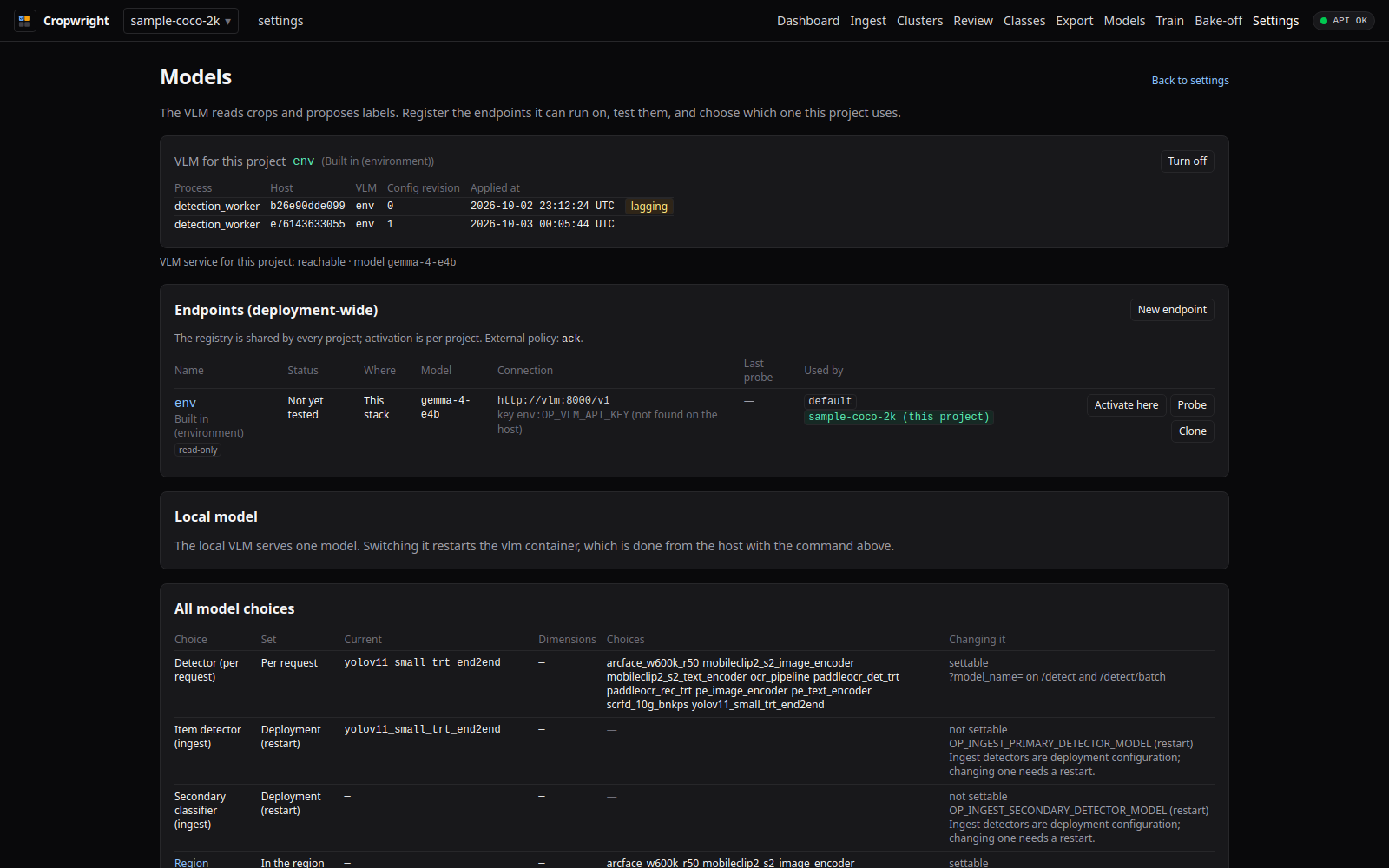

The Models page
- Active endpoint for this project, with Rollback, Turn off (both confirmed) and the VLM's current health.
- Endpoints. Each registered endpoint with its status, whether it is local or external, and where it came from. An endpoint that sends crops outside your deployment carries a red chip with the backend's warning. Actions: Activate here, Probe (test it now), Clone, and Delete for stored endpoints (refused with the project names if some project still uses it). Endpoints defined by the backend's environment are read-only; clone one to edit a copy.
- Local model. When the backend runs a local VLM, the catalog of models it can serve, with a confirmed Switch. A switch may need a restart: the page then shows the backend's reason and the exact command to run, and follows the backend until the new model is serving. If a model doesn't fit the hardware you are asked to confirm before forcing it.
- All model choices. A read-only table of every model the project can be pointed at, linking to the editor for the role it plays.

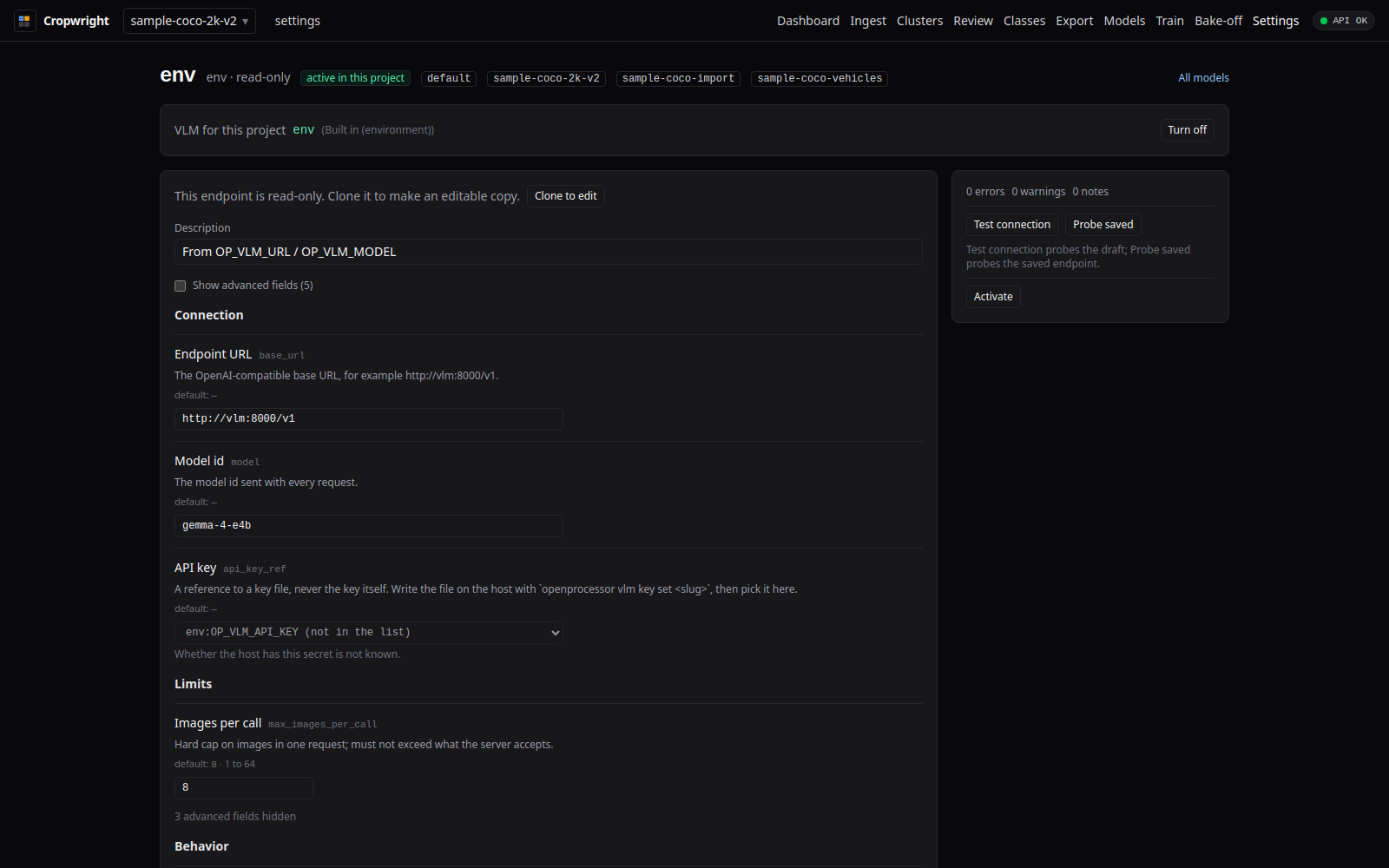

Creating and editing an endpoint
/settings/models/new-endpoint and /settings/models/vlm/<name> show a form
built from the backend's schema, validated as you type. Test connection
probes the unsaved draft, Probe saved re-reads the saved endpoint, and
revisions can be viewed and restored. If a probe is already running you get
the backend's "busy" message.
Sending images outside your deployment
Activating an endpoint that sends crops outside the deployment (a hosted service, say) shows the backend's warning and an I understand checkbox. The acknowledgement is sent only if you tick it, never by default. The same rule applies to every place a VLM can be chosen.

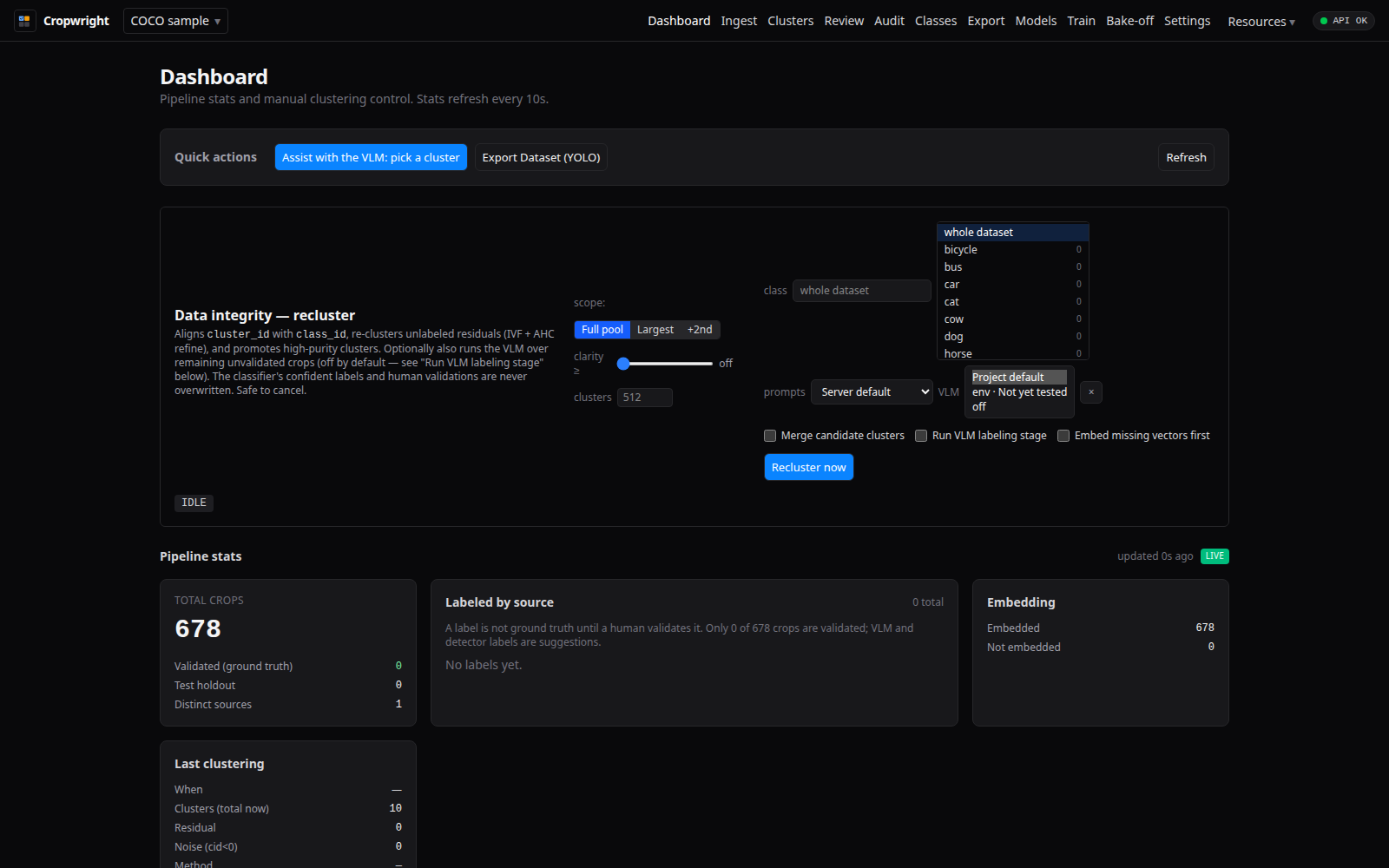

Choosing a VLM per run
A Project default option sends nothing and uses the active endpoint. Alternatively, choose a specific endpoint for one run in:
- the dashboard's assist bar (a pick implies running the VLM);
- the Assist… dialog (a cluster, a sub-cluster, a selection, one crop or one box; see Assist), which also carries the prompt pack;
- the prompt-pack and region-profile test on a crop panels.
Each shows the endpoint's status; an external endpoint shows the warning and needs the acknowledgement for that run. If a run is refused, the backend's reason is shown, and an unknown endpoint names the valid ones.
On Settings the VLM default is a dropdown of the same endpoints, including off; an external endpoint without a recorded acknowledgement is disabled with a link back to this page.
Where the VLM shows up
The Models page lists one row per registered endpoint with its
resolved model and an active chip. An item's Details panel shows the
VLM endpoint (name@revision), model and prompt pack that labeled it, when
that is recorded.
