Combine projects

Combine builds a new project from 1 to 8 existing ones. The source projects are only read. Source data is preserved, and class-name conflicts are resolved explicitly by a mapping you review first.

API=http://localhost:4603 is assumed. Combine routes are global, not project scoped.

Concepts

Target. A new project, created in status building. It becomes active when the job succeeds and failed when it does not. Deleting a failed or unwanted target is a complete undo; see Projects.
Source order is priority. The first source wins a label conflict and donates the image of a duplicate.
Class mapping by name. The target owns its class ids. Nothing numbered in a source crosses over. Each source class is mapped by name with the same actions as Dataset import: map to a target class, create a target class, skip, or region. The preview returns a suggested_mapping. Every source class that has data needs a decision, or the preview reports unmapped_class.
Dedup. content_hash (default) treats byte-identical images as one: the image is copied once, and the boxes of the duplicates are merged by IoU (dedup_iou, default 0.9). none keeps every image. Two boxes that overlap with the same target class merge, and the more trusted label survives (human, then import, then VLM, then model). Two overlapping boxes with different classes keep the priority label and the item is flagged combine_conflict, with combine_conflict_origins.
Holdout. preserve_union keeps the frozen test splits of the sources as the target's frozen test split. recompute draws a new split and warns that models trained on a source may have seen the new test images. none freezes no test split in the target.
Clusters. Source clusters are not copied. Recluster the combined items after the job finishes (next_steps says so).
Provenance. Items record origin_project, origin_item_id and origin_image_id.
Label state filter. Per source, include.label_states is all or validated_only.
Settings. settings_from names a source whose settings defaults, activations and prompt packs are copied to the target.
Preview hash. The preview returns preview_sha, which covers the request and the state of every source. Starting requires the same hash, so a source that changed in between is caught.
Busy sources. A source with a running job cannot be combined.

Routes

Call	Purpose
`POST /curation/projects/combine/preview`	Dry run; writes nothing
`POST /curation/projects/combine`	Start the job
`GET /curation/projects/combine/{job_id}`	Job status
`POST /curation/projects/combine/{job_id}/cancel`	Cancel a running job
`POST /curation/projects/combine/{job_id}/resume`	Resume an interrupted or cancelled job

Preview

curl -s -X POST "$API/curation/projects/combine/preview" \
  -H 'Content-Type: application/json' \
  -d '{
        "target": {"slug": "fleet", "display_name": "Fleet", "description": "Cars and trucks"},
        "sources": [
          {"project": "cars", "include": {"label_states": "all"}},
          {"project": "trucks", "include": {"label_states": "validated_only"}}
        ],
        "class_mapping": {},
        "target_classes": null,
        "dedup": "content_hash",
        "dedup_iou": 0.9,
        "holdout": "preserve_union",
        "settings_from": "cars"
      }'

The response has:

Field	Content
`ok`	False when there are errors
`errors`, `warnings`	Issues with `code`, `severity`, `project`, `message`, `detail`
`preview_sha`	The hash to pass back when starting
`suggested_mapping`	Source project to a list of mapping rows (`dataset_class`, `action`, `class_id`, `new_class_name`, `new_class_group`)
`sources`	Per source: `images`, `items`, `labeled_items`, `holdout_images` and its classes with `count` and `mapped_to`
`target`	`slug`, `slug_available`, the resulting `classes`, and what the finished target will hold: `projected_images`, `projected_items` (after duplicate merging; includes `unclassed_items`, which are copied without a class), `holdout_images`. A combine target is always new, so these are totals, not additions to existing data.
`dedup`	`identical_images`, `merged_items`, `conflicts`, `conflict_samples`
`bytes`	`to_link` and `to_copy`

Typical flow: preview, copy suggested_mapping into class_mapping, edit the decisions, preview again until ok is true.

A mapping row in class_mapping uses the source project slug as its key:

{
  "class_mapping": {
    "cars": [
      {"dataset_class": "car", "action": "create", "new_class_name": "vehicle"}
    ],
    "trucks": [
      {"dataset_class": "truck", "action": "map", "new_class_name": "vehicle"},
      {"dataset_class": "wheel", "action": "region"}
    ]
  }
}

target_classes is an optional list that fixes the order of the target classes (and so their ids); every name in it must be created by a mapping row. Because the target registry is new, a create row defines a target class, and a map row names one by new_class_name. The same create name in two sources is one class.

Issue codes include too_many_sources, duplicate_source, target_is_source, source_not_found, source_not_ready, source_busy, slug_invalid, slug_taken, slug_retired, shard_budget_exceeded, shard_budget_high (warning), unmapped_class, mapping_target_invalid, label_conflicts (warning), holdout_recompute_contamination (warning), embedding_model_mismatch (warning) and region_profiles_differ (warning).

embedding_model_mismatch names a source whose stored vectors have a different dimension than the target encoder (detail: project, items, source_dim, target_dim). Those vectors are not copied; the items are deferred for re-embedding. region_profiles_differ lists each source's active region profile (name, content hash) and the target_profile (the settings_from source's, or null). Neither blocks the combine.

Start

curl -s -X POST "$API/curation/projects/combine" \
  -H 'Content-Type: application/json' \
  -d '{ ...the same body as the preview..., "expected_preview_sha": "<preview_sha>" }'

The answer is 202 with {"job_id": "...", "target": "fleet"}. The target project appears at once in status building.

Follow, cancel, resume

curl -s "$API/curation/projects/combine/JOB_ID"
curl -s -X POST "$API/curation/projects/combine/JOB_ID/cancel"
curl -s -X POST "$API/curation/projects/combine/JOB_ID/resume"

All three return the job: job_id, status, phase, target, sources, done, total (images), report, next_steps, error, started_at and finished_at.

Statuses: queued and running are active. completed and completed_with_errors are finished. failed is terminal. interrupted (for example after a restart) and cancelled can be resumed. The phases of a running job are registry, images, holdout and done. Progress is also published as the combine.progress event on the global stream.

Cancel works only on an active job. Resume works only on an interrupted or cancelled job. It re-checks every source and the preview hash, so a source that changed since the preview ends in preview_stale, and a new combine is needed. The target must still be building.

Jobs live under OP_COMBINE_JOBS_DIR, in chunks of OP_COMBINE_PAGE_SIZE.

Errors

Status	`error`	When
422	`combine_invalid`	The start request has errors; `report` lists them
409	`preview_stale`	A source changed since the preview
404	`combine_not_found`	Unknown job
409	`combine_not_resumable`	Cancel of a job that is not running, or resume of a job that is running, finished, or whose target or sources can no longer be used
404	`project_not_found`	A named project does not exist
409	`shard_budget_exceeded`	Creating the target would exceed the shard limit

Cropwright

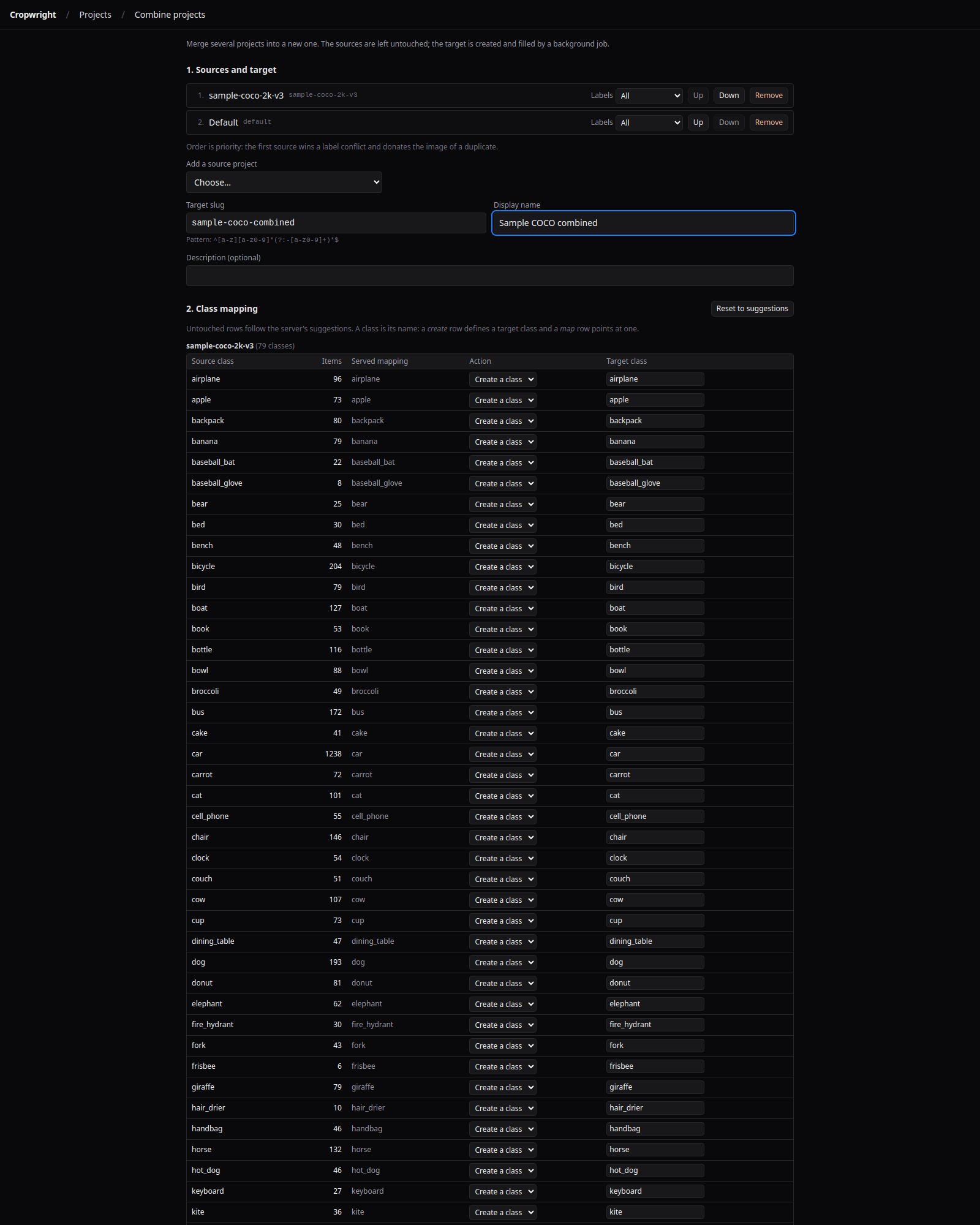

Combine wizard with two source projects, the target slug and the class mapping table — The combine wizard: sources, target and class mapping (top of the page; nothing is started) (captured from Cropwright against the public COCO sample projects)
