Dataset import

Bring an already-labeled dataset into a project: a YOLO dataset, a COCO dataset, or an OpenProcessor export. Classes are mapped by name, never by index. A dataset's class order is not trusted across the boundary.

API=http://localhost:4603 and project cars are assumed.

Concepts​

  • Formats. yolo (a data.yaml with class names, plus images/ and labels/ per split; polygon and oriented-box rows are imported as their bounding box), coco (instances JSON files, with an images directory per file) and openprocessor_export (an export written by this system, which can be re-imported where it was written). auto detects the layout. Detection order: export, then YOLO (a data.yaml), then COCO (an annotations/ directory with JSON files and no labels/ directory, which includes images/ next to annotations/), then YOLO (an images/ directory, or a child directory with images/).
  • Allowed paths. source.path must be absolute and, after symlinks are resolved, sit under a configured image source root (OP_SOURCE_ROOT and OP_SOURCE_PATH_ALIASES), the project's upload root, or the project's export root. Anything a dataset names (a data.yaml path, a COCO file_name, an archive member) must stay inside it.
  • There is no root request parameter. The dataset location is source.path only (a directory, or for YOLO a data.yaml file), in one of the forms above; root is a field of the preview response (the resolved directory) and is ignored as input. A COCO dataset is a directory holding images/ and annotations/*.json (for example /data/source/my_coco/images/ and /data/source/my_coco/annotations/instances_train.json), with "format": "coco" or "auto"; pass the directory that contains those two folders, not images/ or a JSON file.
  • Preview, then import. A preview writes nothing and returns the detected format, totals, splits, a decision row per dataset class, issues and an import_key. The import re-scans and is authoritative.
  • Class mapping. Every dataset class that has boxes needs one decision: map to an existing class (class_id), create a class (new_class_name, optional new_class_group), skip (the frames stay unlabeled), or region (the class is a region of its parent item, not an item; needs an active region profile). The preview suggests a decision with a match kind: same class, exact name, case or spacing difference, merged class, prompt-pack synonym, the region class, or none. accept_suggestions: true fills in only the safe matches (same class, exact name, case or spacing difference, region class). Synonym, merged and create suggestions always need an explicit decision. index_would_have_mapped_to shows what an index-based mapping would have done wrong.
  • Idempotent. import_key hashes the source, mapping and the options that change what is written. Repeating a completed import returns the finished job with reused: true.
  • Chunked and resumable. Imports are persisted per chunk. One import runs per project at a time.
  • Human edits win. A label or box a person set between preview and write is not overwritten. Such conflicts are counted as label_conflicts_locked.
  • Undo. Restores class snapshots and box history, deletes the items and images the import created, and deprecates classes it created. Items edited by a person or shared with another import are kept.

Routes​

CallPurpose
POST /curation/projects/{project}/datasets/uploadsUpload a dataset archive
GET /curation/projects/{project}/datasets/formatsFormats, choices, issue catalog, upload limits
POST /curation/projects/{project}/datasets/previewPreview; writes nothing
POST /curation/projects/{project}/datasets/importsStart an import
GET /curation/projects/{project}/datasets/importsList imports (page, page_size, status)
GET /curation/projects/{project}/datasets/imports/{import_id}Status and report
GET /curation/projects/{project}/datasets/imports/{import_id}/entriesPer-image rows
GET /curation/projects/{project}/datasets/imports/{import_id}/issuesIssues with samples
POST /curation/projects/{project}/datasets/imports/{import_id}/cancelStop a running import
POST /curation/projects/{project}/datasets/imports/{import_id}/resumeContinue an interrupted, failed or cancelled import
POST /curation/projects/{project}/datasets/imports/{import_id}/undoDry run or real undo

Upload an archive​

If the dataset is not already under a source root, upload it. One .zip, .tar or .tar.gz, as multipart form data with the field file:

curl -s -X POST "$API/curation/projects/cars/datasets/uploads" \
  -F 'file=@my_dataset.zip'

The answer is 201 with upload_id, dataset_path, files and bytes. Use dataset_path as source.path. Extraction is content addressed and safe: only regular files and directories are extracted, a symlink or device file fails the whole archive, and member count, written bytes and compression ratio are capped. Limits come from OP_DATASET_UPLOAD_MAX_BYTES (default 2 GiB), OP_DATASET_UPLOAD_MAX_FILES and OP_DATASET_UPLOAD_TTL_H (uploads are swept after the TTL). GET .../datasets/formats returns the live limits as upload_limits.

Preview​

curl -s -X POST "$API/curation/projects/cars/datasets/preview" \
  -H 'Content-Type: application/json' \
  -d '{
        "source": {"path": "/data/source/my_dataset", "format": "auto"},
        "mapping": [],
        "accept_suggestions": false,
        "options": {"processing": "none", "label_trust": "validated"}
      }'

The response has format, root, source_sha, import_key, splits (images, labeled, negatives, unlabeled, boxes), totals (images, boxes, already indexed, to ingest), classes (one row per dataset class with boxes, images, suggestion, resolved, merged_from), region (when region classes are mapped), issues, blocking, force_allowed and estimate (detector images and embeddings). For an OpenProcessor export it also carries op_export.

For a COCO dataset with explicit files, give source.coco_annotations:

{
  "source": {
    "path": "/data/source/coco_set",
    "format": "coco",
    "coco_annotations": [
      {"path": "annotations/instances_train.json", "images_dir": "images/train", "split": "train"}
    ]
  }
}

Options​

OptionDefaultMeaning
processingnonenone imports as-is. propose also runs the detector to find what the labels missed
label_trustvalidatedvalidated: imported labels count as ground truth. suggestion: imported boxes are proposals a reviewer confirms
parentsautoFor region classes: take parent items from the labels, or run the detector (detect)
freeze_test_splitnullFreeze the dataset's test split as the project's held-out set. Null means false, except for an OpenProcessor export that was itself frozen
missing_labelunlabeledAn image with no label file is unlabeled, or negative (no object)
region_negativestrueOn labeled or negative frames, parent items with no region box are recorded as having no region
region_containment0.90.5 to 1.0. Containment threshold for assigning a region box to a parent item
namedataset_importLabel of the job, 1 to 120 characters
source_tagdataset_importTag stored on imported items, 1 to 120 characters
forcefalseStart despite blocking issues that are bypassable

name, source_tag and force do not change import_key.

Start​

curl -s -X POST "$API/curation/projects/cars/datasets/imports" \
  -H 'Content-Type: application/json' \
  -d '{
        "source": {"path": "/data/source/my_dataset"},
        "mapping": [
          {"dataset_class": "car", "action": "map", "class_id": 0},
          {"dataset_class": "wheel", "action": "region"},
          {"dataset_class": "bus", "action": "create", "new_class_name": "bus", "new_class_group": null},
          {"dataset_class": "other", "action": "skip"}
        ],
        "options": {"name": "my_dataset", "freeze_test_split": true},
        "expected_import_key": "<import_key from the preview>"
      }'

expected_import_key makes the call fail with 409 dataset_changed if the dataset or mapping changed since the preview. The answer is 202 with the job. A repeat of a completed import answers 200 with reused: true.

Follow, inspect, control​

curl -s "$API/curation/projects/cars/datasets/imports/IMPORT_ID"
curl -s "$API/curation/projects/cars/datasets/imports/IMPORT_ID/entries?status=failed&page_size=100"
curl -s "$API/curation/projects/cars/datasets/imports/IMPORT_ID/issues?code=label_file_missing"
curl -s -X POST "$API/curation/projects/cars/datasets/imports/IMPORT_ID/cancel"
curl -s -X POST "$API/curation/projects/cars/datasets/imports/IMPORT_ID/resume"

The job has status (queued, running, paused_backpressure, completed, completed_with_errors, failed, cancelled, interrupted, undoing, undone), progress (images and chunks done, images per second, eta_s), waiting_for, poll_after_s, report, mapping, options, source, issues_summary, undo, next_steps and error. paused_backpressure means the region worker queue is full (OP_DATASET_IMPORT_MAX_PENDING); the import continues by itself.

report counts images_created, images_reused, images_failed, images_skipped, items_created, items_updated, items_noop, labels_written, boxes_written, standalone_regions, negatives, unlabeled, parents_detected, proposals_created, proposals_merged, holdout_frozen, label_conflicts_locked, items_reconciled_removed and disagreements (counts and samples where the dataset label differs from the existing label). next_steps lists calls worth making next, each with action, method, path and reason.

Entry filters are split, label_state and status. Resume only works for an interrupted, failed or cancelled import and re-checks the source. A dataset updated over an earlier import removes the items the new version no longer has, except those a person or a held-out freeze touched.

Undo​

A dry run is the default and writes nothing:

curl -s -X POST "$API/curation/projects/cars/datasets/imports/IMPORT_ID/undo" \
  -H 'Content-Type: application/json' \
  -d '{"dry_run": true, "remove_images": true, "deprecate_created_classes": true}'

It returns the report: items_deleted, items_restored, items_reinstated, items_kept_human_edited, items_kept_shared, class_labels_removed, boxes_removed, boxes_kept_human_edited, holdout_flags_cleared, images_deleted, images_kept, classes_deprecated and samples. With "dry_run": false the undo runs in the background and the call returns the job. Poll it until undone.

Issues​

GET .../datasets/formats serves the full catalog (code, severity, blocking, bypassable, label). Blocking issues refuse the import with 422 import_blocked. Only issues marked bypassable can be bypassed with force. The only bypassable one is test_split_changed: the frozen test split no longer matches TEST_FROZEN.json. Frequent blocking codes:

CodeMeaning
dataset_path_not_allowed, format_undetectedPath outside the allowed roots, or no layout found
data_yaml_invalid, data_yaml_names_missing, coco_json_invalid, coco_category_duplicate_nameUnreadable or ambiguous class list
dataset_too_large, dataset_file_too_largeOver the preview file limit or a file size cap
class_unmapped, class_mapping_conflict, class_name_exists, class_mapped_to_deprecatedMapping problems
region_profile_requiredA region mapping with no active region profile
names_mismatch, manifest_unreadableAn OpenProcessor export that does not match its registry

Common warnings: label_file_missing, label_row_malformed, label_class_out_of_range, label_coords_out_of_range, label_box_degenerate, image_unreadable, image_size_mismatch, coco_bbox_out_of_image, label_conflicts_locked.

Errors​

StatuserrorWhen
404import_not_foundUnknown import_id
409dataset_changedexpected_import_key no longer matches
409import_busyAnother import or undo is running in the project
409import_resumableAn interrupted import of this dataset exists; resume it
409import_not_resumableResume of an import in another state
409import_not_undoableUndo of a running import
413upload_too_largeArchive over the limit
422archive_invalidNot a readable, safe archive
422dataset_path_not_allowed, format_undetectedSee above
422class_mapping_incompleteA dataset class with boxes has no mapping; unmapped lists them
422class_mapping_invalidBad mapping, or a class could not be created; issues lists them
422import_blockedBlocking issues; issues lists them
503config_store_unavailableThe encoder or ingest is not ready

Cropwright​

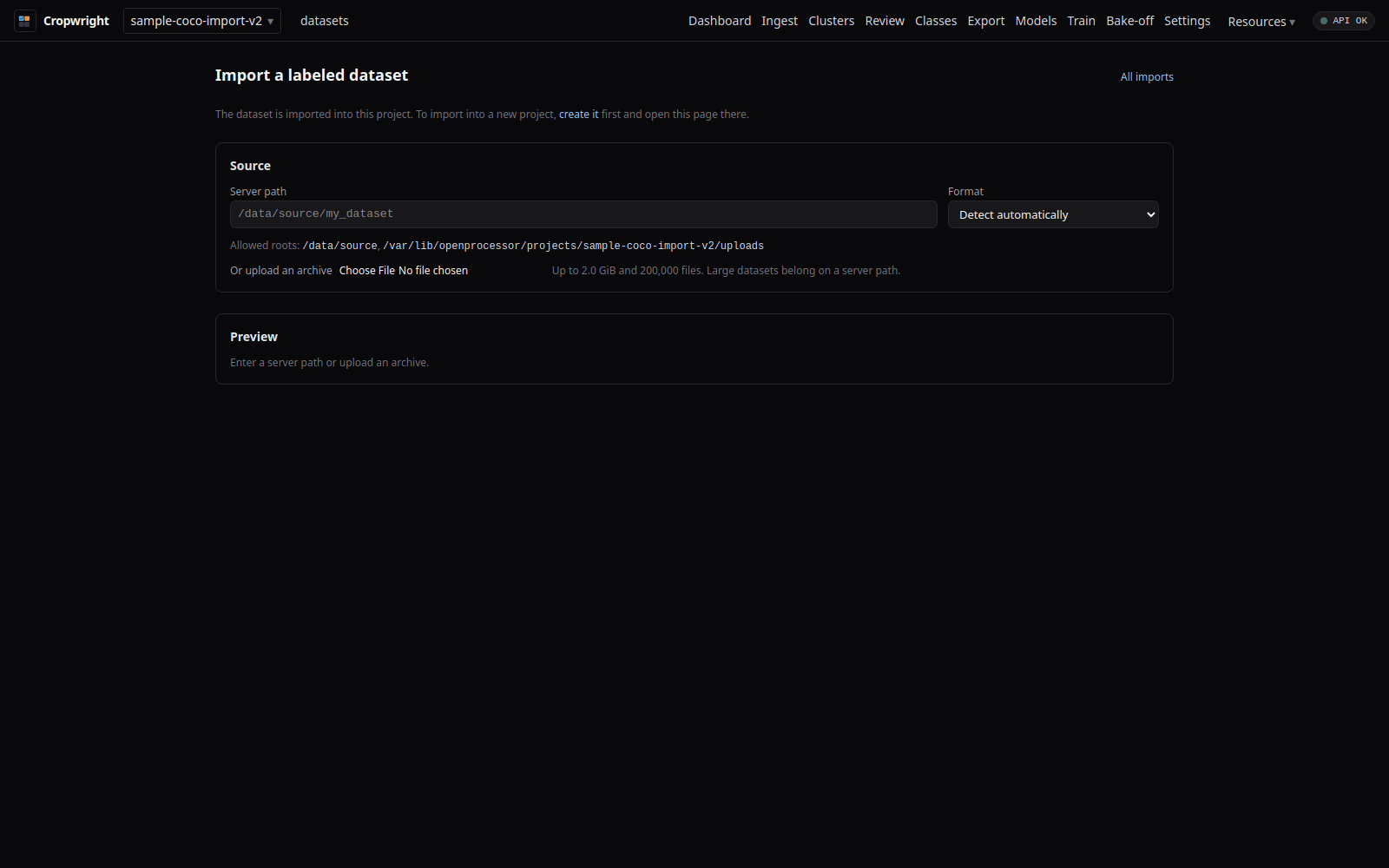

The import wizard's source step (captured from Cropwright against the public COCO sample projects)

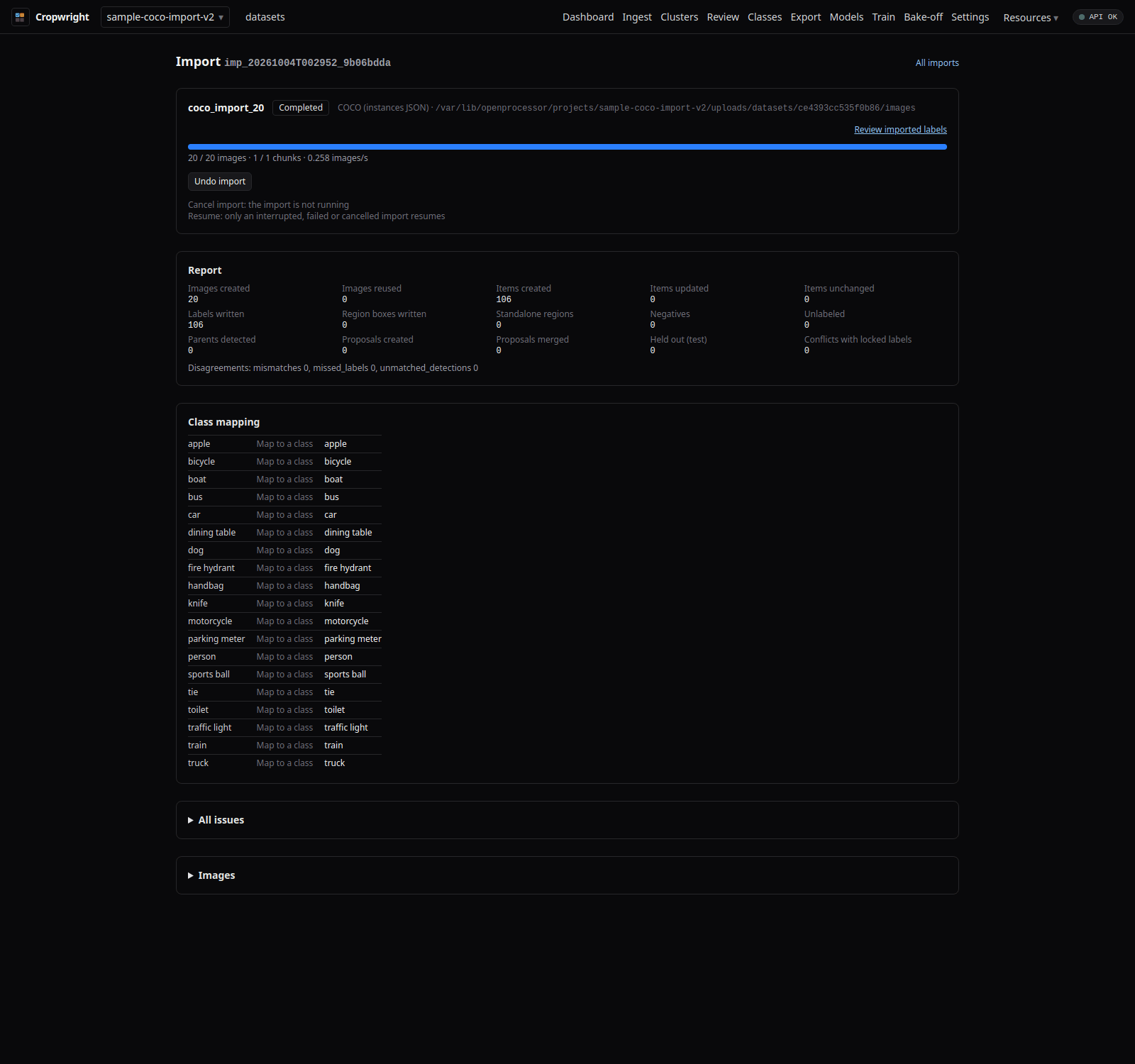

A completed import job: progress, report and the class mapping (captured from Cropwright against the public COCO sample projects)
