Ingest a large folder

This guide takes you from a photo share on a NAS to a finished bulk ingest into a project. It covers mounting the share, a small trial run, the full run (command line or Cropwright), what to do when a run stops, how long it will take and how much disk it needs.

To ingest from an S3 bucket instead, or to keep a project fed by a poll, a schedule or S3 events, see Ingest from S3 and watched sources.

:::note Before you start Work through this list once. Each item has a step below.

• The stack is healthy: ./openprocessor health.
• A detector is configured. Ingest answers 503 No detector configured for ingest until OP_INGEST_PRIMARY_DETECTOR_MODEL names a Triton model.
• The share is mounted on the host and the container user can read it.
• OP_SOURCE_ROOT_HOST is set and the three services that mount it were recreated.
• GET /curation/projects/{project}/ingest/bulk/config lists /data/source.
• A fresh project exists and its ingest policy is set. A policy changes future ingests only.
• A trial of 200 to 500 images passed (step 5).
• Free disk was checked (step 11).
• You know whether GPU decode is on: ./openprocessor gpu plan (step 10). :::

Example paths use /srv/nas/photos for the share on the host and /data/source for the same files inside the containers. Replace <project> with your compose project name (openprocessor by default; ./openprocessor passes it for you) and <slug> with the curation project.

1. Mount the share

Mount the share on the Docker host first, read-only. Two common shapes:

# NFS
sudo mkdir -p /srv/nas/photos
sudo mount -t nfs -o ro nas.example.lan:/export/photos /srv/nas/photos

# SMB
sudo mount -t cifs -o ro,uid=1000,credentials=/root/.nas-credentials \
  //nas.example.lan/photos /srv/nas/photos

The containers run as an unprivileged user (uid 1000 in api). It must be able to read every directory and file, so check the mode or mount with a matching uid.

Check from the host:

ls /srv/nas/photos | head

2. Point the stack at it

OpenProcessor reads images from one source root. Set it in .env as the host path:

OP_SOURCE_ROOT_HOST=/srv/nas/photos

Compose mounts that path read-only at /data/source in three services:

• api;
• curation-detection-worker;
• curation-auto-label-worker.

All three need the mount. Without it on the workers, thumbnails return 404 and the VLM stage predicts 0 labels while the job still reports completed. Every path you give an ingest command is the container path, so /srv/nas/photos/2024/a.jpg on the host is /data/source/2024/a.jpg in the commands below.

Recreate the services so they pick up the new value:

./openprocessor start

In a checkout, the same thing without the CLI:

docker compose -p <project> -f docker-compose.yml -f docker-compose.dev.yml \
  up -d api curation-detection-worker curation-auto-label-worker

./openprocessor restart is not enough: docker compose restart does not re-read .env, so the mount stays as it was.

Check what the API sees:

curl -s http://localhost:4603/curation/projects/<slug>/ingest/bulk/config

source_roots must list /data/source. It also lists the project's own upload root, which is where browser and ingest_upload.py uploads are stored. The same response gives the limits: default and maximum batch_size and concurrency, and the default extensions (.jpg, .jpeg, .png).

Check that the container can read the share:

docker compose -p <project> exec api sh -c 'ls /data/source | head'

3. More than one share: OP_SOURCE_PATH_ALIASES

OP_SOURCE_ROOT_HOST is a single root. To ingest from a second share, name it with OP_SOURCE_PATH_ALIASES and mount it yourself. Set the alias in .env, either as JSON or as alias=path pairs:

OP_SOURCE_PATH_ALIASES=archive=/data/archive,nightly=/data/nightly
# or
OP_SOURCE_PATH_ALIASES={"archive": "/data/archive"}

An alias name cannot contain /, and a malformed value is rejected with an error instead of being dropped.

Compose does not mount alias paths. Add the bind mount to the same three services in docker-compose.local.yml, next to docker-compose.yml. ./openprocessor and make load that file after the stock files when it exists, and git ignores it:

services:
  api:
    volumes:
      - /srv/nas/archive:/data/archive:ro
  curation-detection-worker:
    volumes:
      - /srv/nas/archive:/data/archive:ro
  curation-auto-label-worker:
    volumes:
      - /srv/nas/archive:/data/archive:ro

Recreate the services so they pick up the mount:

./openprocessor start

note

Only the name docker-compose.local.yml is read. A docker-compose.override.yml, or any other file name, is not. When you run docker compose yourself, list the file after the base files: -f docker-compose.yml -f docker-compose.local.yml (add -f docker-compose.dev.yml in a checkout, before the local file).

Ingest paths under the alias like any other (--folder /data/archive/2023). Images are served at GET /curation/projects/{project}/images/root/{alias}.

4. Create a fresh project

Ingest into a project of its own so you can test, inspect and discard it without touching other data.

curl -s -X POST http://localhost:4603/curation/projects \
  -H 'content-type: application/json' \
  -d '{"slug": "nas-photos", "display_name": "NAS photos"}'

The slug is 2 to 32 characters: lowercase letters and digits, with single hyphens between parts, starting with a letter (^[a-z][a-z0-9]*(?:-[a-z0-9]+)*$). A few words are reserved (for example new, all, none, projects, settings, vlm, health), and the slug of a deleted project cannot be reused. To copy settings from an existing project, add "clone_settings_from": "<other-slug>". In Cropwright, use the Projects page instead. See Projects.

Now decide what ingest keeps and embeds, before any image goes in. By default every detection is stored and embedded. Read the current policy and try a change on stored data first; see Ingest policy.

curl -s http://localhost:4603/curation/projects/nas-photos/ingest/policy

5. Trial run on 200 to 500 images

Run a small slice first. It shows whether the mount, the detector and the policy do what you expect, and it gives you a measured speed for your hardware.

Preview before you ingest

Before any run, ask the API what the folder or manifest holds. A preview walks the source read-only and ingests nothing: it returns the file count, total bytes, the breakdown by extension, a sample of image sizes (headers only, no pixel decoded), the directories and symlinks it could not follow, and an estimate of the ingest time and the OpenSearch index size. In Cropwright press Preview next to Start bulk ingest on the Ingest page; on the command line add --preview to the same flags:

docker compose -p <project> exec api python scripts/curation/bulk_ingest.py \
  --project nas-photos --folder /data/source/2024-03-sat \
  --api-base http://localhost:8000/curation --preview

The route is POST /curation/projects/{project}/ingest/bulk/preview (the same single source field as a start: folder, manifest, s3 or source_id). An unreadable folder, a path outside the source roots or an S3 prefix outside OP_S3_ALLOWED is refused; nothing is guessed. Output of the command line renderer on the 10-image public COCO sample (this is the service run on that folder in a script, not against a deployed stack):

folder /data/source/coco_sample
  files: 10, 1.7 MiB
    .jpg: 10 files, 1.7 MiB
  image sizes (header sample of 10): <1 MP: 10; 0% at or above 3 MP
  estimated ingest time: about 0.3 s (megapixel_sample)
  estimated index size: 637.7 KiB, about 74 vectors
  basis: measured figures in docs/PERFORMANCE.md, not a promise

What the numbers rest on:

• The walk is bounded. It stops at 200,000 files or 60 seconds, whichever comes first (GET .../ingest/bulk/config serves the limits under preview). A source bigger than that answers partial: true with the reason, and every figure is then a lower bound. Closing the connection (Ctrl-C on the command line, or pressing the button again) stops the walk.
• The estimate uses only measured figures from docs/PERFORMANCE.md, served in the same config with the section each came from: ingest speed by decode route (29.0 images/s for small frames, 27.0 for 12 to 24 MP photos on the CPU path, 35.0 with the GPU decode) from "Decode once and the GPU decode", 7.4 embeddings per image, and 65,298 bytes of index per image from "Storage per image and per vector". They were measured on one RTX A6000 with public COCO and Commons photos, so another card or detector profile will differ: treat the time as an order of magnitude, not a promise. When the image sizes are unknown (an S3 prefix is only listed), the time is the range from the slowest to the fastest measured route.
• Image sizes come from the headers of a fixed-size sample (300 files), shown as a histogram in megapixels and as the share at or above the GPU-decode gate (OP_INGEST_GPU_MIN_MEGAPIXELS, 3.0).
• Skipped entries are counted, not hidden: unreadable directories (with the first few paths), symlinks (not followed), manifest lines that do not exist or lie outside the source roots.

Run a small slice

Then run a slice to get a measured speed for your own hardware. Limit the input yourself:

The simplest trial is a small sub-folder:

docker compose -p <project> exec api python scripts/curation/bulk_ingest.py \
  --project nas-photos --folder /data/source/2024-03-sat \
  --source nas-trial

Or a manifest. It is a text file with one container path per line (or JSON Lines with a path field; blank lines and # lines are skipped). The manifest itself must lie under a source root, because the API checks its path like an image path. A manifest in ./data or /tmp is refused with bulk_ingest_invalid_source. Write it on the host share, or somewhere under the same root:

find /srv/nas/photos -type f -iname '*.jpg' | head -n 300 \
  | sed 's#^/srv/nas/photos#/data/source#' > /srv/nas/photos/trial.txt
wc -l /srv/nas/photos/trial.txt

If the share is read-only for you on the host, use the sub-folder form.

Run it. The output below is from a real run of 300 public COCO photos on the local test stack (project cwlife-nas-trial, one RTX A6000 shared with other work). On that stack the photos sat in the project's upload root rather than /data/source, so the path in the first line differs from yours:

docker compose -p <project> exec api python scripts/curation/bulk_ingest.py \
  --project nas-photos --manifest /data/source/trial.txt \
  --source nas-trial

started run bulk_20261013T231156_e14c70f9 on manifest /var/lib/openprocessor/projects/cwlife-nas-trial/uploads/trial.txt
running                48/300 ingested 48 duplicate 0 failed 0 | 7.9 img/s eta 0m32s
completed              300/300 ingested 300 duplicate 0 failed 0 | 26.6 img/s eta --
run bulk_20261013T231156_e14c70f9: completed
  discovered 300, ingested 300, duplicates 0, failed 0, skipped (already stored) 0
  crops 1926, embedded 1926, not embedded 0 (0 encoder failures)
  26.13 img/s over 12s
  stage seconds: embed 1603.0s, batch_requests 172.9s, opensearch_write 142.5s, ...

The command exits 0. Read three things from this:

• Speed. images / seconds is your real rate (here 300 in 12 s). You use it in step 9.
• Items per image. 1,926 crops from 300 images is 6.4 per image with the full 80-class detector. This number drives the size of the index (step 11).
• Stage seconds. They are summed over all parallel batches, so they add up to far more than the wall time. Compare stages with each other, not with the clock.

Then check the result:

• Open the project in Cropwright and look at the review page. Thumbnails must load. If they 404, the workers do not have the mount (step 2).

• Preview what a different policy would cost on this stored data (read-only):

  curl -s -X POST http://localhost:4603/curation/projects/nas-photos/ingest/policy/preview \
    -H 'content-type: application/json' -d '{"embedding": {"mode": "lazy"}}'

  The answer has would_embed, would_not_embed, a per-class table and estimated_vector_mb. That last number counts raw 1,024-float vectors only (items x 1024 x 4 bytes), not index overhead.

Keep the trial in the project if the result is good. Running the same images again costs almost nothing, because images already stored are recognised by content hash and reported as duplicate. In the same test project a repeat of the 300 images reported duplicate 300. If the trial showed a wrong policy, delete the project from the Projects page and start again, since a policy change does not rewrite stored items.

6. Full run, command line

docker compose -p <project> exec api python scripts/curation/bulk_ingest.py \
  --project nas-photos --folder /data/source

The default --api-base follows where the script runs: http://localhost:8000/curation inside api, where the API listens, and http://localhost:4603/curation on the host (with the repo's Python environment and OPENSEARCH_URL set).

--folder and --manifest are paths inside the API container and must lie under a source root. The script prints a live progress line, then a summary, and exits with the run's outcome.

Flag	Meaning
--folder PATH	Walk this directory (recursive). One of --folder, --manifest, --status, --cancel is required.
--manifest PATH	Text file of image paths.
--preview	Do not ingest: print the file count, bytes, extensions, image sizes, skipped entries and the time and index-size estimate for the source, then exit. Works with --folder, --manifest, --s3 and --source-id.
--status RUN_ID	Print one run's progress and exit.
--cancel RUN_ID	Ask a live run to stop and exit.
--project SLUG	Project to bind. Default $OP_CURATION_PROJECT, else default.
--api-base URL	Curation API mount, no trailing slash.
--source TAG	Provenance tag stored on each image (default bulk_ingest).
--extensions LIST	Comma-separated extensions for --folder (default jpg,jpeg,png).
--batch-size N	Images per request. Server default 16, maximum 64.
--concurrency N	Requests in flight. Server default 16, maximum 32.
--poll-interval S	Seconds between progress reads (default 2).
--no-wait	Start the run and exit; follow it with --status.
--show-failures N	Failed images printed at the end (default 20).

Exit codes: 0 completed, 1 completed with failed images, 2 failed (the run stopped), 130 cancelled.

For a share the server cannot mount at all (a laptop, a remote or very slow share), scripts/curation/ingest_upload.py --root DIR reads the files on the client and uploads the bytes. Those bytes are copied into the project's upload root, so plan disk for them (step 11).

7. Full run, Cropwright

Open the project, go to the Ingest page and use Bulk ingest (folder or manifest). The panel lists the source roots the server reports. Choose Folder or Manifest, enter the container path (for example /data/source), and press Start bulk ingest. Under Advanced you can change extensions, images per batch and batches in flight; the placeholders are the server's defaults.

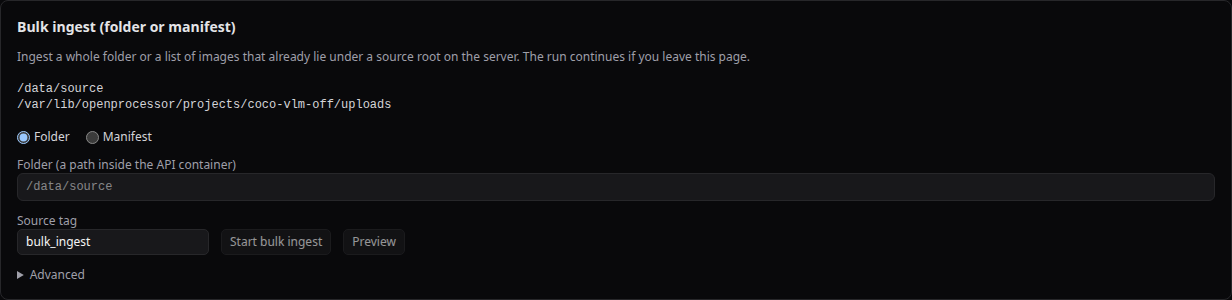

The bulk ingest panel: the server's source roots, folder or manifest, and Start

The page shows what the server reports: images found so far, ingested, duplicate and failed counts, recent and overall speed, time left, and a "Where the time went" table. The run belongs to the server, so it keeps going when you close the page.

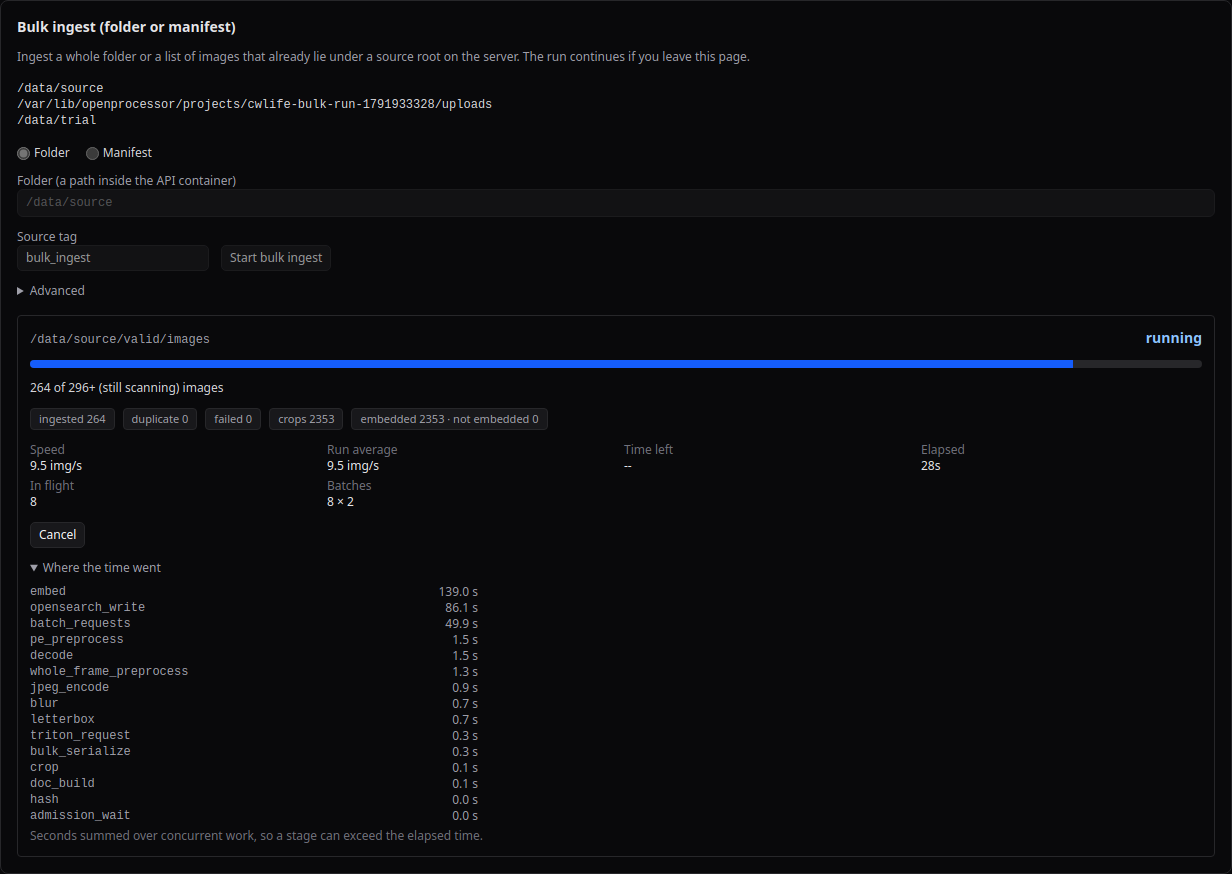

A run in progress

More on the page: Ingest in Cropwright.

8. Progress, cancel, resume, failures

These routes are the same ones the script and Cropwright use:

B=http://localhost:4603/curation/projects/nas-photos/ingest/bulk
curl -s $B                       # list runs
curl -s $B/<run_id>              # one run
curl -s -X POST $B/<run_id>/cancel
curl -s "$B/<run_id>/failures?offset=0&limit=100"

• Progress. A run reports status, progress.discovered, progress.discovery_complete and a table of seconds per stage. A folder is scanned while it ingests, so discovered keeps growing until discovery_complete is true; the script shows it as 120/5000+.

• Cancel. The run stops after the batches in flight. Images already stored stay stored. In the script, Ctrl-C once cancels; Ctrl-C again detaches and leaves the run to the server.

• Resume. There is no resume route. Start the same source again (same kind, same path, same extensions). If the earlier run was interrupted, failed, cancelled or completed with errors, the server continues that run from its ledger and answers resumed: true. A source whose last run completed cleanly starts a new run, and every image already stored shows as a duplicate.

• One run at a time. A second start while a run is live is refused with 409 bulk_ingest_busy.

• Failures. Each failed image has its path, an error kind and the reason. Page through them with offset and limit (up to 1,000). A real example, a manifest with one stored photo and two missing paths, exits with code 1:

  completed_with_errors  3/3 ingested 0 duplicate 1 failed 2 | 13.8 img/s eta --
  run bulk_20261013T231230_78a9e0d7: completed_with_errors
    discovered 3, ingested 0, duplicates 1, failed 2, skipped (already stored) 0
    FAILED .../photos/set-a/missing-1.jpg [decode_failed] [Errno 2] No such file or directory: '...'
    FAILED .../photos/set-a/missing-2.jpg [decode_failed] [Errno 2] No such file or directory: '...'
    start the same source again to resume: images already stored are skipped

• Automatic stop. A run stops as failed after 5 batches in a row in which every image failed (a detector or datastore that is down). Fix the cause and start the same source again.

• What the folder walk skips. It does not follow symbolic links, and a directory it cannot list (permission denied, a broken link, a mount that dropped) is skipped without an error. If the discovered count is lower than the files on the share, look for links and unreadable directories first.

9. How long will it take

Take the rate from your trial, not from a table:

hours = images / (images_per_second x 3600)

For example, 100,000 images at the 21 images per second measured below take 100,000 / (21 x 3,600), about 1.3 hours.

Measured rates, all on an RTX A6000, from docs/PERFORMANCE.md:

What	Rate	Section
Bulk ingest runner, public COCO frames (640 x 480), one A6000, 16 images per request, 16 requests in flight, policy all	21.29 images/s	Bulk ingest runner
Ingest end to end after the stage 2 changes, same kind of frames, one card	28.81 to 29.07 images/s	End to end, before and after
The same, two cards	55.08 images/s	End to end, before and after
12 to 24 MP photos, /ingest/batch, CPU decode, detect and embed	27.0 images/s	Decode once and the GPU decode
The same photos with GPU decode	35.0 images/s	Decode once and the GPU decode
The same photos, GPU decode, detect only	44.0 images/s	Decode once and the GPU decode
100,000 public Open Images (up to 0.7 MP), one A6000, stopped and resumed once	35.96 images/s	Scale ladder: 10k and 100k
100,000 camera-original 20 MP JPEGs on a NAS, one A6000, stopped and resumed once	21.00 images/s	Scale ladder: 10k and 100k

Host CPU per photo at bulk was 1.12 s on the CPU path and 0.34 s with GPU decode.

These are A6000 numbers. The minimal and standard profiles and a 12 GB card were not measured, so expect different rates there and trust your trial.

10. GPU decode for large photos

Phone and camera photos are large. Decoding them on the CPU is the slow part, so ingest can decode JPEGs on the GPU.

• OP_INGEST_GPU_DECODE defaults to on in the code. The installer writes 1 for the full profile and 0 for minimal and standard, so an installed stack may already have it off.
• Only images of at least OP_INGEST_GPU_MIN_MEGAPIXELS (default 3.0) use it. Small frames are faster on the CPU.
• It needs about 8.5 GB more VRAM on the Triton card per model instance (the full profile runs two, 17 GB; the other profiles one), loaded on first use. If the model cannot load, every photo is decoded on the CPU instead.
• A JPEG that is not a baseline 8-bit file falls back to the CPU; the counter op_ingest_decode_total shows how many were taken either way.
• It applies to the /ingest/batch path, which bulk ingest uses.

To see whether it is on and whether the card has room:

./openprocessor gpu plan

Set OP_INGEST_GPU_DECODE=0 or 1 in .env and recreate the services to change it.

11. How much disk

Source images. A folder ingest reads the files in place through a read-only mount and does not copy them. Uploads (the browser, or ingest_upload.py) store a copy under the project's upload root. The index holds metadata and vectors, not your originals.

Index size. docs/PERFORMANCE.md, "Ingest cost per image", gives the cost per 1,000 images for a 1,024-float vector per embedded item and one per image for the whole frame:

Per 1,000 images	Total
Narrow detector (1.37 items per image), every item embedded	22.4 MB
Full 80-class vocabulary (7 items per image), every item embedded	79.8 MB
Full vocabulary, no item embedded	21.0 MB

New projects use the Lucene vector engine, which stores about 4.5 KiB per item with whole documents included, against 8.6 KiB on the older faiss engine. That measurement and a linear extrapolation to a million items (about 4.4 GiB of items and 0.5 GiB of images, labelled there as a guide and not a run) are in the section "Stage 4". The table above predates Lucene, so treat it as an upper bound for new projects.

Use your own numbers. Items per image depend on your photos and detector. Take it from the trial (crops / images), then run the policy preview from step 5: it reports estimated_vector_mb for the stored items.

Memory. Search keeps the vector graph in RAM. The sizing note in docs/design/storage_sizing_and_ingest_baselines.md gives about 4.6 KB per vector for the HNSW graph and says to verify the formula against the OpenSearch documentation. The 100,000-vector runs used an 8 GB OpenSearch heap, and docs/PERFORMANCE.md advises keeping 8 GB for the build buffers and leaving the rest to the page cache. See also Sizing and storage.

Check free space on the Docker data volume before a long run:

df -h /var/lib/docker

Troubleshooting

You see	Cause and fix
503 No detector configured for ingest	Set OP_INGEST_PRIMARY_DETECTOR_MODEL to a Triton model name and restart api.
422 bulk_ingest_invalid_source	The folder or manifest path is not under a source root, or does not exist. Use the container path and check ingest/bulk/config.
Thumbnails 404 and the VLM stage predicts 0	A worker is missing the source mount (step 2) or the alias mount (step 3).
409 bulk_ingest_busy	Another run of the project is live. Watch it with --status, or cancel it.
Fewer files discovered than on the share	Symbolic links are not followed and unreadable directories are skipped (step 8).
Script cannot connect	Check --api-base: the default is localhost:8000 inside api and localhost:4603 on the host. Pass it when the API is elsewhere.
Run failed right after the start	Five all-failed batches in a row. Read error in GET .../ingest/bulk/<run_id>, fix the detector or OpenSearch, start the same source again.
