Keymaps

Every project has its own keyboard shortcut map for the review UI. The backend holds the action registry, validates changes and stores overrides. A frontend such as Cropwright reads the map and binds keys from it.

API=http://localhost:4603 and project cars are assumed.

Concepts

• Action. One bindable operation, with an id such as review.queue.confirm. Each action has a context, a default list of combos, a modifiable flag and available. An action is available set to false when it cannot apply to the project yet. The per-box region actions are unavailable on a project with no region profile.
• Context. Where an action is live: global, review, review.queue, review.region, box_edit, cluster, clusters_search, region_gallery. A context includes others, so a key bound in global collides with the same key in any context that includes it.
• Combo. A key, optionally with modifiers (ctrl, meta, alt, shift), written like shift+enter. At most 3 combos per action.
• Override map. Only actions that differ from the default are stored. A project with no stored document serves the defaults (is_default is true).
• Locked. escape, enter and the four arrow keys are locked keys. Actions marked modifiable: false (for example closing the overlay) cannot be rebound.
• Class hotkeys. A class can carry a single-letter hotkey_letter. A keymap combo that is a bare letter in a context where class hotkeys are live cannot reuse a class letter.
• Revision. Each write bumps revision. Writes must say which revision they were based on.

Routes

Call	Purpose
GET /curation/projects/{project}/keymap	Registry, effective keys and stored overrides
PUT /curation/projects/{project}/keymap	Replace the whole override map
POST /curation/projects/{project}/keymap/validate	Dry run, always 200
POST /curation/projects/{project}/keymap/reset	Drop all overrides, or only listed actions

Read

curl -s "$API/curation/projects/cars/keymap"

The response has:

Field	Content
actions	Every action with id, context, group, label, description, default, keys (effective), locked_keys, modifiable, available
contexts	id, label, includes, class_hotkeys_live
grammar	modifiers, named_keys, printable, locked_keys, browser_reserved, max_combos_per_action
overrides	The stored map, action id to list of combos
reserved_hotkeys	Single letters class hotkeys may not use
revision, etag	etag is keymap:<revision>
is_default	True when nothing is stored
issues	Existing problems, for example a class hotkey shadowed by a binding

Validate

validate uses the same replace semantics as PUT. The body is the whole proposed map, not a patch. A body that validates clean here also passes the real write.

curl -s -X POST "$API/curation/projects/cars/keymap/validate" \
  -H 'Content-Type: application/json' \
  -d '{"overrides": {"review.queue.discard": ["x"], "review.skip": ["s"]}}'

The response has ok, errors, warnings, force_allowed, resolved (effective combos per action), reserved_hotkeys and class_conflicts. Each issue has code, severity, field, message and detail.

Issue codes:

Code	Meaning
keymap_unknown_action	Action id does not exist
keymap_action_locked	Action is not modifiable
keymap_combo_invalid	Combo is malformed, or repeated within an action
keymap_too_many_combos	More than 3 combos
keymap_key_locked	A locked key used elsewhere, or removed from the action that owns it
keymap_browser_reserved	Combo the browser keeps, such as ctrl+w
keymap_focus_key	Combo that shadows focus navigation outside box editing
keymap_context_collision	Same combo bound twice in one context
keymap_overlay_unbound	The shortcuts overlay must keep at least one key
keymap_context_no_confirm	Warning: a context has no key for its confirm action
keymap_class_hotkey_shadowed	A class letter is shared with an action
keymap_class_hotkey_conflict	A combo is bound to a class in this project

Write

PUT replaces the override map. An action missing from the body goes back to its default. The revision comes from expected_revision in the body or from an If-Match: "keymap:<revision>" header. If both are given they must agree.

curl -s -X PUT "$API/curation/projects/cars/keymap" \
  -H 'Content-Type: application/json' \
  -d '{
        "expected_revision": 0,
        "overrides": {"review.queue.discard": ["x"]},
        "unbind_conflicting_class_hotkeys": false
      }'

The response is the same shape as GET, plus unbound_class_hotkeys (classes whose hotkey was cleared in this write).

If a combo clashes with a class hotkey, the write is refused with 409 class_hotkey_conflict and class_conflicts listing the classes. Set unbind_conflicting_class_hotkeys to true to clear those class hotkeys in the same write. They are reported back and never cleared silently.

Reset

# all overrides
curl -s -X POST "$API/curation/projects/cars/keymap/reset" \
  -H 'Content-Type: application/json' \
  -d '{"expected_revision": 1}'

# only some actions
curl -s -X POST "$API/curation/projects/cars/keymap/reset" \
  -H 'Content-Type: application/json' \
  -d '{"expected_revision": 2, "action_ids": ["review.queue.discard"]}'

action_ids omitted or null resets everything. The response is the same as PUT.

Errors

Status	error	When
422	validation_failed	Validation errors (report lists them), a missing revision, a malformed If-Match, or body and header disagree
409	revision_conflict	The stored revision differs; current_revision is returned
409	class_hotkey_conflict	Combo collides with a class hotkey and unbinding was not requested
409	project_archived	The project is archived
404	project_not_found	Unknown project

Cloning

clone_settings with the keymap axis copies the overrides. If any combo collides with a class hotkey in the target, the whole keymap is skipped (the target's keymap stays as it was) and each colliding action is reported in keymap_clone_conflicts. See Settings and configuration.

Cropwright

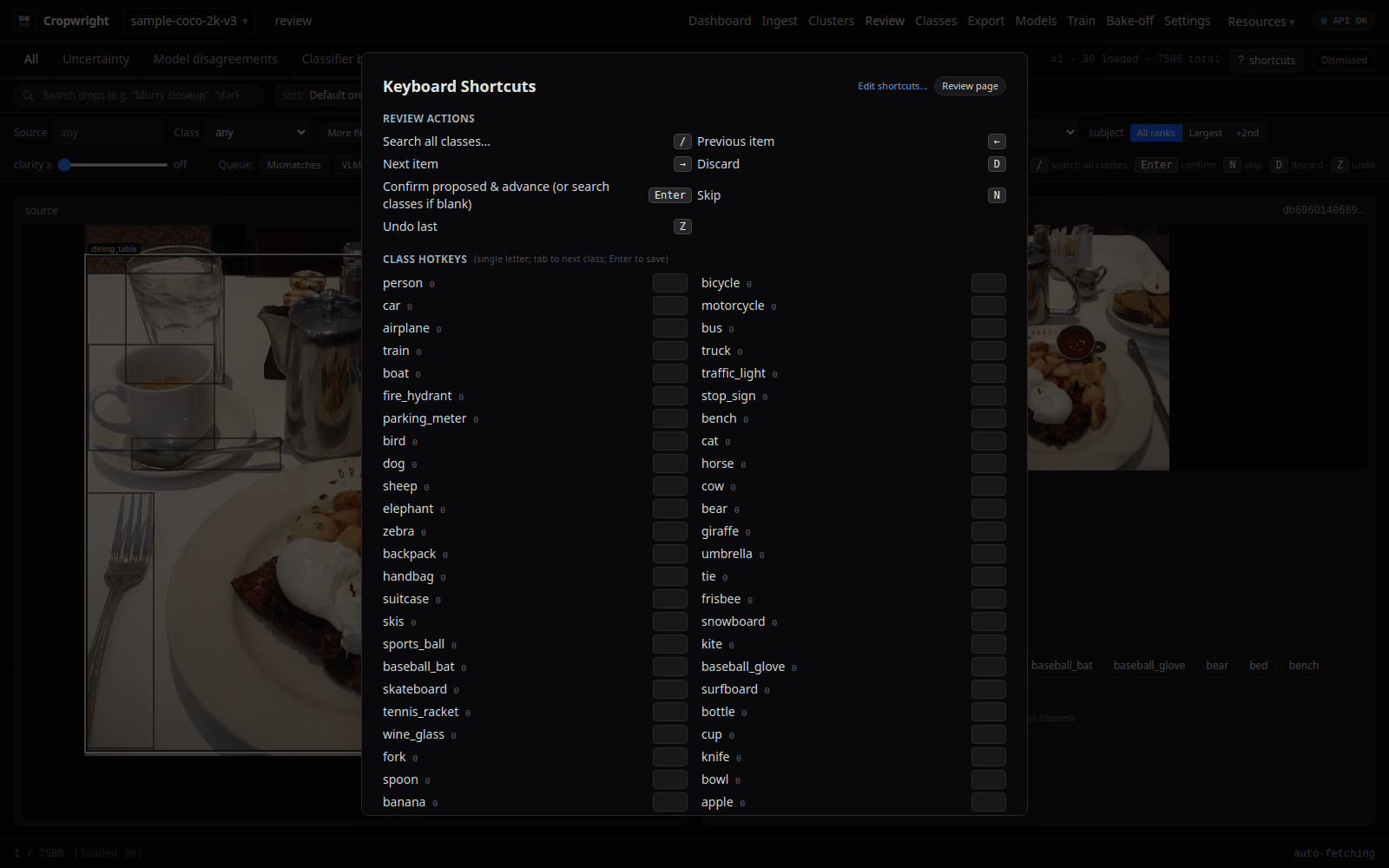

The shortcuts overlay (captured from Cropwright against the public COCO sample projects)

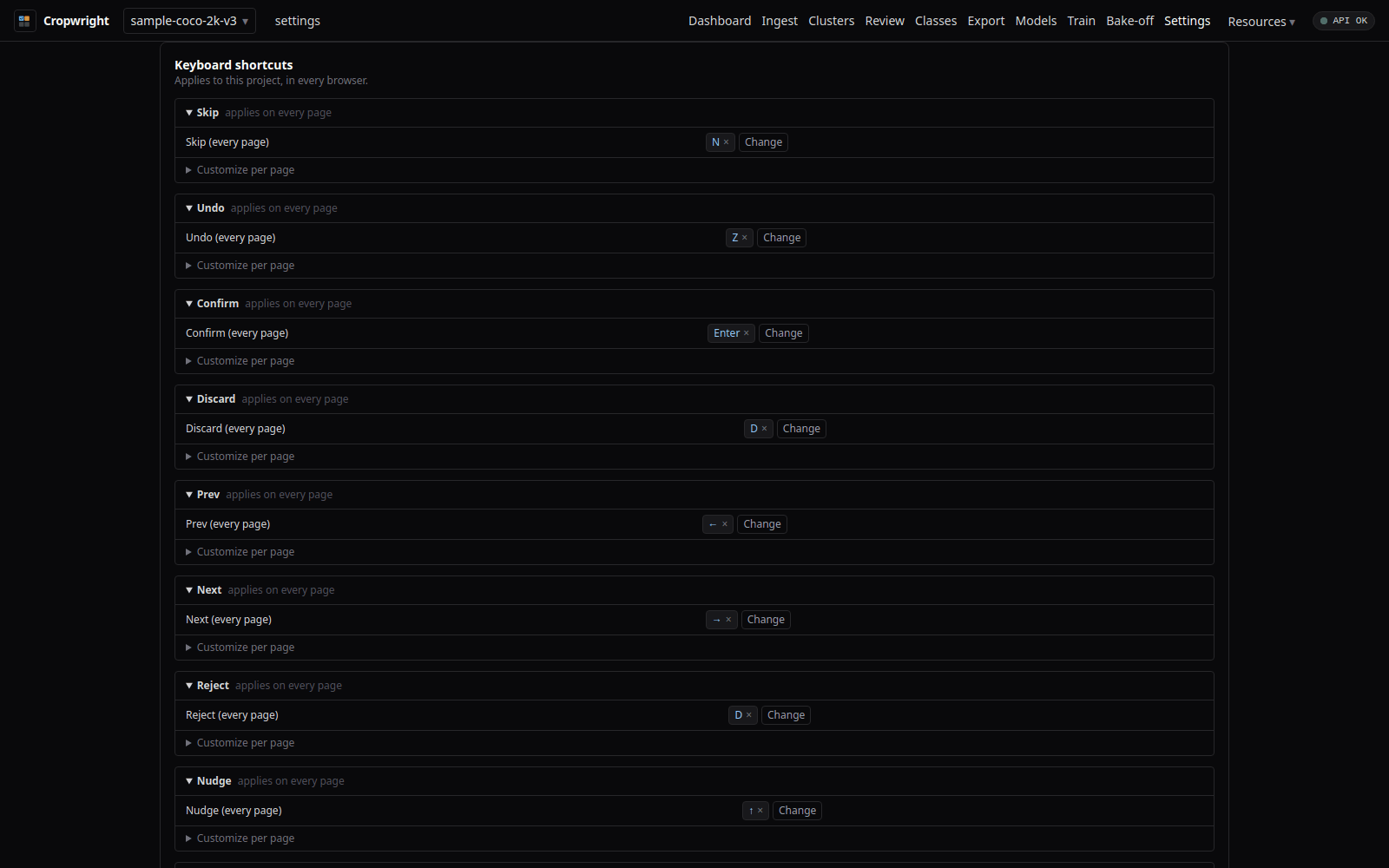

The keymap settings (captured from Cropwright against the public COCO sample projects)

See also

• Settings and configuration
• Multi-box regions
• Projects
