Multi-box regions

An item can have zero, one or many regions. A car crop can hold four wheels. Each box is found, verified, embedded, clustered and labeled on its own. Every item stores its regions as one list, region_boxes. An item with one region has a list of one. There are no single-box fields on the item.

API=http://localhost:4603 and project cars are assumed. Boxes are [x1, y1, x2, y2], normalized to 0..1.

Concepts​

  • Box. An element of region_boxes. Fields: box_id, bbox_norm, bbox_in_parent, state, score, detector, detector_version, source, bbox_correct, confidence, rejection_reason, locked, thumbnail_url, detected_at, text fields (text, text_raw, text_source, text_confidence, text_vlm, text_ocr, text_choice, text_disagreement, text_vlm_invalid, text_engine_version) when the profile reads text, and cluster_id, cluster_subid, cluster_distance.
  • box_id. Stable within an item. An id is never reused after a box is deleted. Ids are per item, so the same id on two items is two boxes.
  • Frames. bbox_norm is in the source image frame. bbox_in_parent is the same box in the item crop frame. A write may send frame: "parent" and the server projects it into the source frame.
  • Box state. proposed (awaiting verification), accepted, rejected and false_positive. Only accepted boxes are exported as positives. A false_positive box is kept as a hard negative for detector training. GET /curation/projects/{project}/regions/statuses serves the vocabulary, including which states each write route accepts.
  • Item status. Derived from the boxes with a fixed precedence: any accepted box makes the item detected, then false_positive, then proposed, then rejected, then empty. A sibling accepted box keeps an item detected when another box is flipped to false positive.
  • Item summary fields. region_count, region_rejected_count, region_max_score, region_set_complete (false when the VLM reported that visible regions are missing from the list), region_revision (an optimistic-concurrency counter).
  • Locked box. A box a human created, verdicted or edited, or one imported from a labeled dataset, is locked. Automated stages never touch it, and reprocessing leaves it alone.
  • Per-item cap. max_regions_per_item in the region profile (default 1, up to 64) limits how many candidates are kept after the score floor and NMS. See Region profiles.
  • Per-write cap. One write may carry at most OP_REGION_MAX_BOXES_PER_WRITE boxes (default 500).

How boxes are produced​

  1. The region stage collects candidates from the detector leg and the segmenter leg of the active profile, applies the score floor, class agnostic NMS and the max_regions_per_item cap.
  2. The VLM sees the crop with each candidate drawn and numbered. It returns one verdict per box, plus whether a region is visible at all. A pack must name the per-box reply keys (region_boxes, box, and the correct and confidence keys) when the profile allows more than one box. See Prompt packs.
  3. Verified boxes become accepted, the rest rejected. When the profile reads text, the text is stored per box.
  4. The embed stage writes one embedding per accepted or false-positive box to region_box_embeddings. A box a human moved is re-embedded because the stored vector records the geometry it was computed from.
  5. Region clustering groups boxes, not items. cluster_id and cluster_subid live on each box.

Human edits​

Replace the whole list. The list is in display order. An element with only box_id leaves that box untouched. box_id with bbox_norm moves it (a moved box is human geometry; the state is kept). box_id with state changes the state. box_id: null with bbox_norm adds a box, default state accepted. A stored box that is omitted is deleted. An empty list is the human answer "no region visible".

curl -s -X PUT "$API/curation/projects/cars/crops/CROP_ID/regions" \
  -H 'Content-Type: application/json' \
  -d '{
        "boxes": [
          {"box_id": "b1"},
          {"box_id": "b2", "state": "rejected"},
          {"box_id": "b3", "bbox_norm": [0.10, 0.55, 0.30, 0.90]},
          {"box_id": null, "bbox_norm": [0.60, 0.55, 0.80, 0.90], "state": "accepted"}
        ],
        "frame": "source",
        "expected_region_revision": 3,
        "region_label_source": "human",
        "region_status": null
      }'

region_status applies a whole-set status in the same write. The values a human may write are detected (accepts every proposed box; fails when that leaves no accepted box), false_positive (flips every box), verify_rejected (rejects every box) and no_region_visible (clears the list; contradictory with a non-empty boxes). The response is the item after the write.

Edit one box. Siblings are untouched:

curl -s -X PATCH "$API/curation/projects/cars/crops/CROP_ID/regions/b2" \
  -H 'Content-Type: application/json' \
  -d '{"state": "accepted", "text": null, "expected_region_revision": 4}'

text is accepted only when the profile reads text.

Ask the VLM to judge boxes with an assist run (POST .../assist/runs, action verify): target {"kind": "boxes", "boxes": [{"crop_id": "CROP_ID", "box_id": "b2"}]} for chosen boxes, or a crops target for every box of those items. A box a human or an import owns is never sent. The same target with action attributes stores the pack's box attributes (for example a wheel's rim material) next to the box, in the item's assist object.

Item-level metadata, without touching box geometry:

curl -s -X PATCH "$API/curation/projects/cars/crops/CROP_ID/region_meta" \
  -H 'Content-Type: application/json' \
  -d '{"region_status": "verify_rejected", "region_rejection_reason": "human"}'

The response has updated_fields and item. Box text and geometry are not accepted here.

Many items at once:

# same new boxes on each crop; [] means none visible. box_id must be null.
curl -s -X PUT "$API/curation/projects/cars/crops/batch_regions" \
  -H 'Content-Type: application/json' \
  -d '{"crop_ids": ["CROP_A", "CROP_B"], "boxes": [], "region_status": null}'

# one state on named boxes across items, siblings untouched
curl -s -X POST "$API/curation/projects/cars/regions/batch_box_state" \
  -H 'Content-Type: application/json' \
  -d '{"state": "false_positive", "targets": [{"crop_id": "CROP_A", "box_id": "b1"}], "expected_region_revisions": {"CROP_A": 4}}'

# one item-level status on every box of many items (max 5000 crops)
curl -s -X POST "$API/curation/projects/cars/regions/batch_status" \
  -H 'Content-Type: application/json' \
  -d '{"crop_ids": ["CROP_A", "CROP_B"], "region_status": "false_positive"}'

The batch responses list updated, conflicts and invalid ids and the post-write rows in items. A row is the full item plus region_box_id (null for an item-level row).

Region thumbnail of one box (128 pixels by default, 32 to 512):

curl -s -o box.jpg "$API/curation/projects/cars/crops/CROP_ID/region_thumbnail?box_id=b1&size=128"

Undo​

Each human region write can be undone. Calls step back through successive writes.

curl -s -X POST "$API/curation/projects/cars/crops/CROP_ID/region/undo"

curl -s -X POST "$API/curation/projects/cars/crops/region/undo_batch" \
  -H 'Content-Type: application/json' -d '{"crop_ids": ["CROP_A", "CROP_B"]}'

The single call returns the restored item. The batch call returns items, undone, and the id lists nothing_to_undo, conflicts and not_found.

Browse, cluster, false positives​

All box routes return rows. One row per matching box, with region_box_id. All box filters apply to the same box.

CallPurpose
GET /curation/projects/{project}/regionsBrowse rows. Filters: detector, min_score, max_score, text, region_cluster_id, region_cluster_subid, box_state, status, class_id, verified, max_rank
GET /curation/projects/{project}/regions/statusesItem statuses, box states and the states each write route accepts
GET /curation/projects/{project}/regions/vocabularyRegion vocabulary and write limits
POST /curation/projects/{project}/regions/clusterCluster accepted boxes as a background job
GET /curation/projects/{project}/regions/cluster/statusJob status
GET /curation/projects/{project}/regions/clustersCluster cards: size (items), box_count (boxes), representatives
POST /curation/projects/{project}/regions/clusters/refine/{cluster_id}Split one cluster into sub-clusters
POST /curation/projects/{project}/regions/fp_centroids/buildBuild false-positive centroids from false_positive boxes
GET /curation/projects/{project}/regions/fp_centroids/statusBuild status
GET /curation/projects/{project}/regions/suspected_false_positivesBoxes ranked by distance to a false-positive sub-centroid
GET /curation/projects/{project}/regions/training_candidatesTraining cohorts. mode is detector_blind_spots, low_conf_correct, disagreement, human_corrected or false_positives

A page has items, page, page_size, total (items) and total_rows (rows). rows_truncated is true when an item matched more boxes than the index returns per item.

curl -s "$API/curation/projects/cars/regions?box_state=accepted&min_score=0.5&page_size=50"
curl -s -X POST "$API/curation/projects/cars/regions/cluster?auto_fp_threshold=0.2"
curl -s "$API/curation/projects/cars/regions/cluster/status"

Clustering rebuilds false-positive sub-centroids, flips tight matches to false_positive (and re-derives the item status), then partitions the good boxes. Human-final items and locked boxes are never changed by these automated steps. After marking more false positives, rebuild the centroids with the build call.

Errors​

StatuserrorWhen
409region_conflictexpected_region_revision is stale. The body has current_region_revision, current_box_ids and the current item
409(undo)The crop has no human region write left to undo
422too_many_boxesMore than OP_REGION_MAX_BOXES_PER_WRITE boxes; limit and requested returned
422region_text_disabledA text value on a profile that reads no text
422box_id_in_batchA batch element with a box_id
422box_id_required, 404 unknown_box_idThumbnail without a box_id, or an id the crop does not hold
422(message)bbox_norm out of range or degenerate, a new box without bbox_norm, an unknown box_id, a state the route does not accept, no_boxes or no_accepted_box for a whole-set detected

Cropwright​

Region review panel: numbered boxes, per-box state and accept/reject keys (captured from Cropwright against the public COCO sample projects)

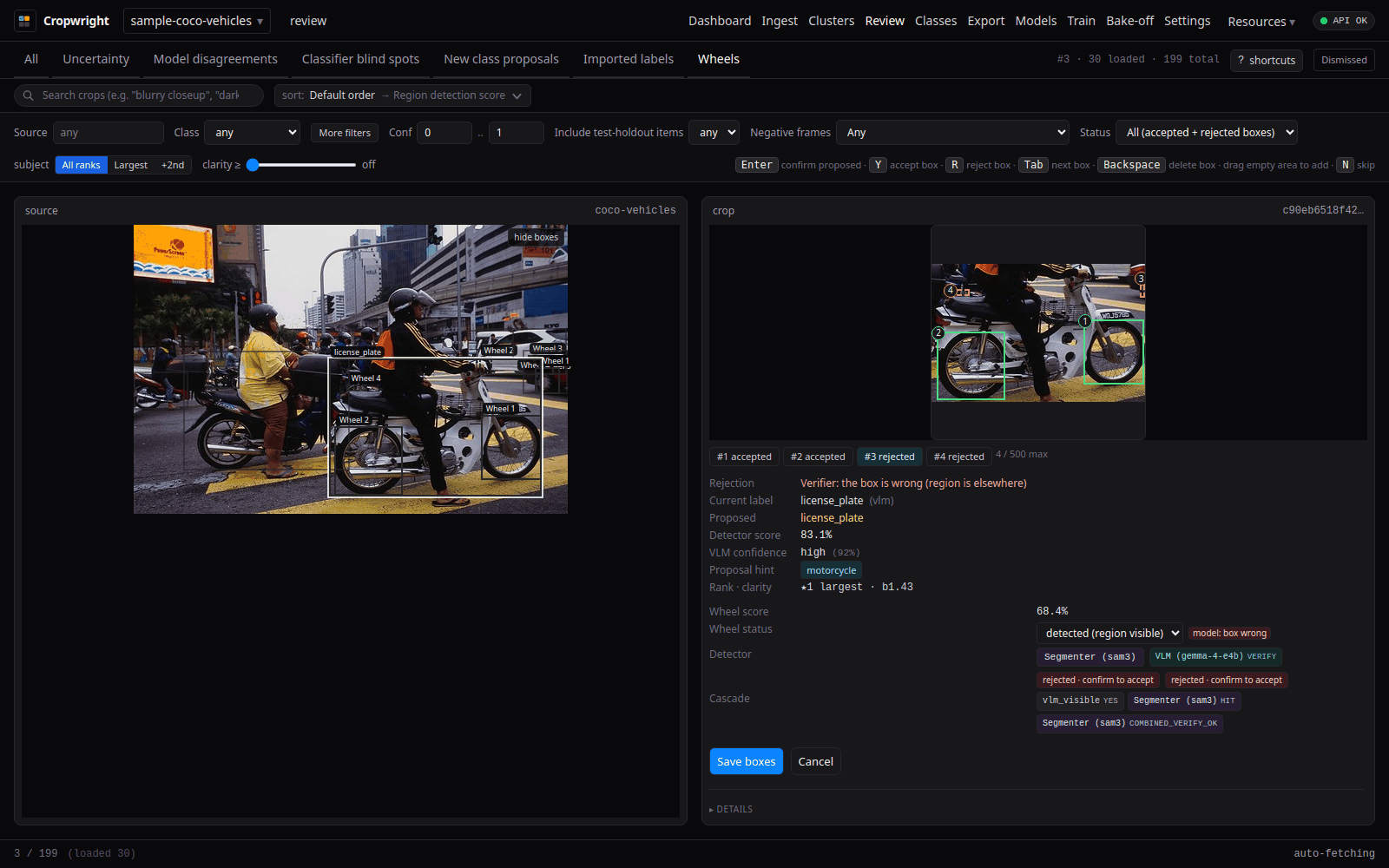

The box editor (editing is not saved in this capture) (captured from Cropwright against the public COCO sample projects)
