Region profiles

A region profile defines what counts as a region of interest inside an item: which detector and segmenter find candidates, how many boxes an item may carry, which items get the region stage, and whether text is read from the region. A car crop with wheels, a plate on a vehicle, a defect on a part: each is one profile. The configuration is data, not code. It is editable per project, versioned and revertible.

API=http://localhost:4603 and project cars are assumed.

Concepts

Item and region. An item is a crop from the primary detector. The region stage looks for sub-regions inside an item. With no active profile, region detection is off.
Legs. Candidates come from a detector leg (a Triton model named by detector_model) and a segmenter leg (a text prompt for the segmenter, segmenter_text_prompt). A profile needs at least one. With the segmenter as the only leg, the prompt is mandatory.
Scope. parent_classes lists the item class names that get the region stage. Empty means every item.
Count. max_regions_per_item (1 to 64) is the most boxes kept per item after selection. The default 1 is single-box. See Multi-box regions.
Text. text_reader is none (a text-free region), vlm, ocr, vlm_then_ocr (OCR when the VLM read nothing) or both (store both readings and flag a disagreement). The text_* fields tune normalization and validity rules.
Display. display_name and display_name_singular are the labels a frontend shows ("Wheels", "Wheel"). region_class_name is the registry class name the profile's detections are treated as.
Sources and revisions. Same model as prompt packs: builtin, file (from OP_REGION_PROFILE_PATH), template (shipped under examples/region_profiles/) and stored. Only stored profiles are editable. Each save is a numbered revision.
Activation. One profile is active per project, and it can be switched off. Activation passes a gate that pairs it with the active prompt pack and VLM. Activation never rewrites existing items. The impact route counts what is stale and suggests an explicit reprocess.

Routes

Call	Purpose
`GET /curation/projects/{project}/region_profiles`	List profiles; `include_templates=true` adds shipped templates
`POST /curation/projects/{project}/region_profiles`	Create a stored profile
`GET /curation/projects/{project}/region_profiles/schema`	Field list with ranges and choice sources
`POST /curation/projects/{project}/region_profiles/validate`	Validate a draft; never writes
`POST /curation/projects/{project}/region_profiles/validate_segmenter_prompt`	Check one segmenter prompt
`POST /curation/projects/{project}/region_profiles/test`	Dry run on a crop, see Test on a crop
`GET /curation/projects/{project}/region_profiles/active`	The active profile and what workers applied
`GET /curation/projects/{project}/region_profiles/active/impact`	What activation means for existing items
`POST /curation/projects/{project}/region_profiles/active/rollback`	Re-activate the previous profile
`POST /curation/projects/{project}/region_profiles/deactivate`	Switch region detection off
`GET /curation/projects/{project}/region_profiles/{name}`	One profile
`PUT /curation/projects/{project}/region_profiles/{name}`	Save a new revision
`DELETE /curation/projects/{project}/region_profiles/{name}`	Delete a stored profile
`POST /curation/projects/{project}/region_profiles/{name}/activate`	Activate
`POST /curation/projects/{project}/region_profiles/{name}/clone`	Copy into a new stored profile
`GET /curation/projects/{project}/region_profiles/{name}/revisions`	Revision history
`GET /curation/projects/{project}/region_profiles/{name}/revisions/{revision}`	One past revision

List and inspect

curl -s "$API/curation/projects/cars/region_profiles?include_templates=true"
curl -s "$API/curation/projects/cars/region_profiles/vehicle_wheel"

The list has profiles (name, detector_model, segmenter_text_prompt, parent_classes, max_regions_per_item, text_reader, reads_text, region_class_name, display_name, read_only, revision, active), templates, active and config_revision. A profile document adds body (every field), description, etag, cloned_from and effective. effective states which legs run, whether the segmenter is enabled, whether text is read, and whether the OCR text-hint re-pass is active.

Profile fields

Defaults are in parentheses. The full list with ranges is returned by the schema route. Field names with no default listed here are tuning values whose defaults are in src/config/detection_profile.py.

Group	Fields
Identity and scope	`display_name`, `display_name_singular`, `region_class_name`, `parent_classes`
Detector leg	`detector_model` (empty = none), `detector_version`, `input_size` (640), `confidence_floor` (0.4), `batch_limit` (16), `letterbox_fill`
Segmenter leg	`segmenter_name` (`sam3`), `segmenter_version`, `segmenter_text_prompt` (empty = off)
Segmenter gating	`gate_hit_rate` (false), `gate_hit_window` (20), `gate_hit_miss_threshold` (15), `gate_hit_sample_floor` (0.1): skip the segmenter for an item class that keeps missing, still sampling it; skipped items are stamped `region_gate_skip` and re-run through the reprocess filter `region_gate_skipped`. Never applies to an item whose class a human owns or validated
Selection	`max_regions_per_item` (1), `region_nms_iou` (0.5), `auto_confirm_aspect`, `auto_confirm_area_frac`
Text reading	`text_reader` (`vlm_then_ocr`), `text_pattern`, `text_format`, `text_charset`, `text_uppercase`, `text_join`, `text_len_min`, `text_len_max`, `text_stopwords`, `text_min_confidence`, `text_placeholders`, `text_reject_sequences`, `text_crop_margin`, `text_crop_min_height`, `text_min_height_ratio`, `text_border_margin`
OCR models	`ocr_pipeline_model`, `ocr_rec_model`, `ocr_rec_version`
OCR text hint	`text_hint_enabled` (true), `text_hint_aspect_min`, `text_hint_aspect_max`, `text_hint_len_min`, `text_hint_len_max`, `text_hint_rec_floor`, `text_hint_require_letters_and_digits`
Other	`human_detector_name`, `human_detector_version`, `feature_output`, `secondary_shape_groups`, `assigns_class`, `labels_path`

The segmenter prompt is plain text. At most 200 characters, at most 8 phrases separated by commas, one line.

Validate

curl -s -X POST "$API/curation/projects/cars/region_profiles/validate?for_activation=true" \
  -H 'Content-Type: application/json' \
  -d '{
        "name": "vehicle_wheel_v2",
        "body": {
          "segmenter_text_prompt": "wheel",
          "parent_classes": ["car"],
          "max_regions_per_item": 4,
          "text_reader": "none",
          "text_hint_enabled": false,
          "ocr_pipeline_model": "",
          "region_class_name": "wheel",
          "display_name": "Wheels",
          "display_name_singular": "Wheel"
        }
      }'

The body may be partial; missing fields take their defaults. With for_activation=true the unreachable and not-ready dependency checks are errors instead of warnings, which is what an activation would see. The response is {ok, errors, warnings, force_allowed}.

Code	Severity	Meaning
`profile_name_invalid`, `profile_name_reserved`	error	Name must match `^[a-z0-9][a-z0-9_.-]{1,63}$`; `off`, `none` and `default` are reserved
`name_conflict`	error	Name already used
`profile_field_unknown`, `profile_field_type`, `profile_field_range`	error	Unknown field, wrong type, or value out of range. `input_size` must be a multiple of 32
`region_class_name_invalid`	error	Not a valid class name
`text_reader_invalid`, `text_regex_invalid`	error	Unknown reader mode, or a bad regular expression
`no_candidate_source`	error	Neither a detector model nor a segmenter prompt
`segmenter_prompt_empty`	error when the segmenter is the only leg, else warning	Empty prompt
`segmenter_prompt_too_long`, `segmenter_prompt_too_many_phrases`, `segmenter_prompt_multiline`	error	Prompt over the limits above
`detector_model_not_found`	error	Model is not in the Triton repository
`detector_model_not_ready`	warning, error for activation; bypassable	Model is not READY
`detector_model_unusable`	warning on save, error for activation	The loaded model has no `output0` tensor (for example a YOLO end-to-end model), or its configuration cannot be read from Triton; every item would end `no_region_box`
`detector_model_not_shared`, `detector_model_other_project`	error, warning	The model belongs to another project and is not shared, or is shared
`detector_model_classes_unmapped`	warning	A shared model has classes with no match by name in this project
`triton_unreachable`, `segmenter_unreachable`, `ocr_model_not_ready`	warning, error for activation; bypassable	Dependency down
`segmenter_not_configured`	warning	`OP_SEGMENTER_URL` is not set
`ocr_model_not_found`	error	OCR model not in Triton
`vlm_not_configured`	warning	A text mode needs a VLM and none is configured; it falls back to OCR
`text_fields_ignored`	warning	`text_reader` is `none` and text fields were changed
`text_hint_inactive_no_ocr`	warning	Text hint on with no OCR pipeline
`display_name_missing`	warning	The UI will say "Regions" and "Region"
`parent_class_unknown`	warning	The class is not in the registry (a proposal name is allowed)
`pack_multi_region_keys_missing`	error on activation	The active prompt pack lacks the per-box reply keys

Check a segmenter prompt alone:

curl -s -X POST "$API/curation/projects/cars/region_profiles/validate_segmenter_prompt" \
  -H 'Content-Type: application/json' \
  -d '{"text_prompt": "wheel", "sole_leg": true}'

Create, edit, clone

curl -s -X POST "$API/curation/projects/cars/region_profiles/vehicle_wheel/clone" \
  -H 'Content-Type: application/json' \
  -d '{"new_name": "cars_wheels", "description": "Wheels on car crops"}'

curl -s -X POST "$API/curation/projects/cars/region_profiles" \
  -H 'Content-Type: application/json' \
  -d '{"name": "cars_wheels", "description": "", "body": { ...fields... }}'

curl -s -X PUT "$API/curation/projects/cars/region_profiles/cars_wheels" \
  -H 'Content-Type: application/json' \
  -d '{"expected_revision": 1, "description": "allow 6 wheels", "body": { ...fields... }}'

Clone takes optional revision and from_project. Create and save answer with the profile document and validation. They refuse a profile with validation errors with 422. Warnings do not block.

Activate, impact, roll back, deactivate

curl -s -X POST "$API/curation/projects/cars/region_profiles/cars_wheels/activate" \
  -H 'Content-Type: application/json' \
  -d '{"revision": null, "force": false, "expected_active": null}'

curl -s "$API/curation/projects/cars/region_profiles/active/impact"

curl -s -X POST "$API/curation/projects/cars/region_profiles/active/rollback" \
  -H 'Content-Type: application/json' -d '{"expected_active": null}'

curl -s -X POST "$API/curation/projects/cars/region_profiles/deactivate" \
  -H 'Content-Type: application/json' -d '{"expected_active": null}'

force bypasses only the bypassable codes in the table (a dependency that is down or not ready). It never bypasses a structural error. The activate response has the same fields as for prompt packs (active, previous, applied) plus impact and validation.

impact has:

Field	Meaning
`items_total`	Items in the project
`by_profile`	Item counts per profile name and revision that produced their regions
`validated_items`	Items with human-validated regions
`unseeded_items`	Items with no region profile stamp
`pending_items`, `pending_not_matching`	Items waiting for detection, and those outside the new profile's scope
`stale_items`	Machine-written items the active profile revision did not produce
`suggested_reprocess`	A dry-run reprocess request that selects the stale items, or null

Nothing is rewritten by activation. To apply the new profile to old items, post suggested_reprocess to the reprocess route; see Reprocess. Workers switch to a newly activated profile at a quiet point.

Revisions

curl -s "$API/curation/projects/cars/region_profiles/cars_wheels/revisions"
curl -s "$API/curation/projects/cars/region_profiles/cars_wheels/revisions/1"
curl -s -X DELETE "$API/curation/projects/cars/region_profiles/cars_wheels?expected_revision=2"

Delete answers 204 and is refused while the profile is active.

Errors

Status	`error`	When
404	`not_found`	Unknown or not-stored profile
404	`unknown_revision`	No such revision
403	`read_only`	Save or delete of a built-in, file or template profile
409	`name_conflict`	Create or clone onto a used name
409	`revision_conflict`	`expected_revision` is stale
409	`in_use`	Delete of the active profile
409	`active_conflict`	Another writer changed the activation; `current` is returned
409	`no_previous`, `previous_deleted`	Nothing to roll back to
422	`validation_failed`	Validation errors; `report` lists them

An assist run with the segment action (POST .../assist/runs) re-runs the segmenter on chosen items and waits in status waiting_region while the region worker handles them. It answers 409 region_profile_required with no active profile, 409 no_segmenter_leg when the active profile has no segmenter_text_prompt, 409 region_stage_paused while the region stage is paused, and 409 verify_endpoint_mismatch when segment.verify is vlm but the run names another endpoint than the project's.

Cropwright

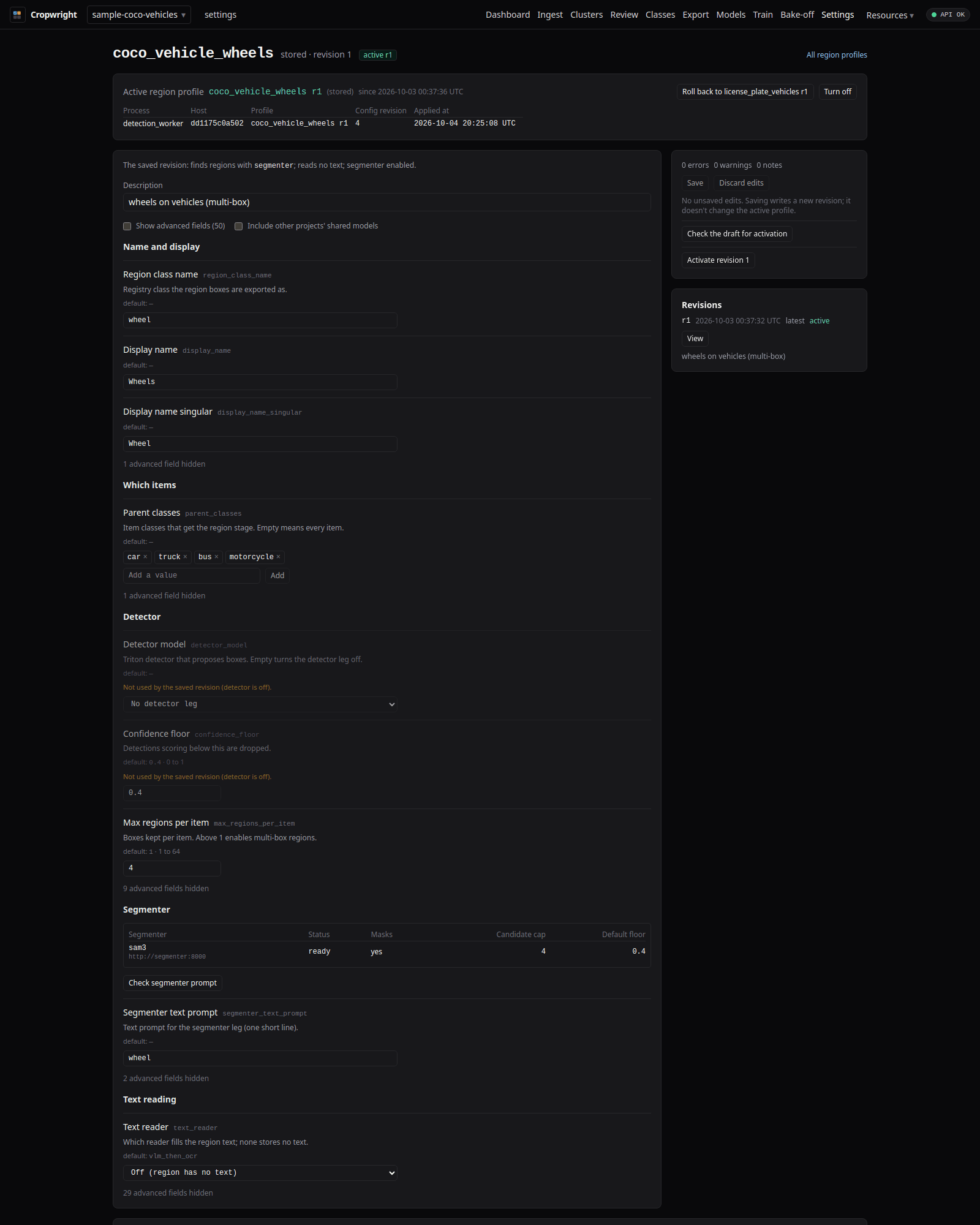

The region profile editor: grouped fields, the segmenter, and the revision list (captured from Cropwright against the public COCO sample projects)
