Settings and configuration
Domain behavior is data, not code. A project keeps its own configuration in its configs index, and the API reads and writes it. This page covers the project settings document, the config store behind it, the vocabulary route that lists every model choice, and cloning settings between projects.
API=http://localhost:4603 and project cars are assumed.
Concepts
- Config store. A per-project set of versioned documents: prompt packs, region profiles, the keymap, and one activation document per axis. Every save makes a new numbered revision. Activating a document points the project at one revision. See Prompt packs, Region profiles and Keymaps.
- Three activation axes.
prompt_pack,detection_profileandvlm. The VLM axis names an endpoint from the global registry; see VLM selection. A new activation is checked as a set: the pack, the profile and the VLM must agree with each other. - Settings document. One shared document per project. It holds default strategy ids for UI-facing axes. It is not the place for secrets or deployment values.
- Deployment configuration. Values in
.env, such as the ingest detectors and the segmenter service. They change only with a restart.

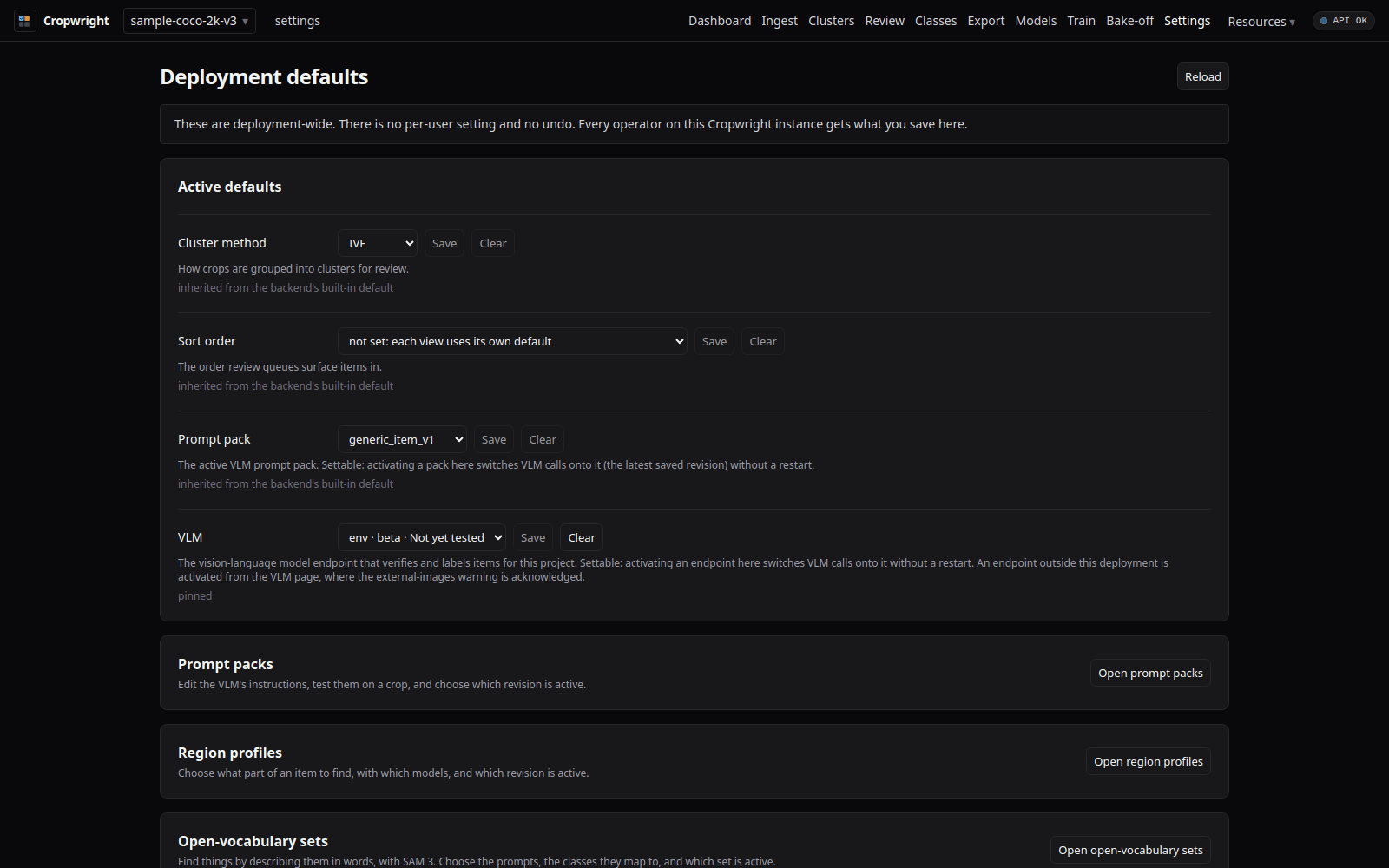

Read and write settings
curl -s "$API/curation/projects/cars/settings"
{
"defaults": {"prompt_pack": "vehicle_wheel", "detection_profile": "vehicle_wheel", "vlm": "env"},
"updated_at": null,
"updated_by": null
}
defaults is an open map from axis id to a strategy id. No document yet
means defaults is empty. prompt_pack, detection_profile and vlm are
read from the config store's activations, not from the settings document.
updated_by is always null: there is no user-account system.
Update with a partial body. Only the axes present are changed:
curl -s -X PUT "$API/curation/projects/cars/settings" \
-H 'Content-Type: application/json' \
-d '{"defaults": {"sort": "uncertainty", "detection_profile": "vehicle_wheel"}}'
A null value clears that axis. Settable axes are cluster, sort,
prompt_pack, detection_profile and vlm. For cluster and sort,
each id must be currently listed by
GET /curation/projects/{project}/methods, and an id that orders by a
field no item has is refused. For prompt_pack and detection_profile,
the id must be a known pack or profile (detection_profile also accepts
off). null deactivates the axis. A combined body that changes several
config-store axes is checked as one set and applied only if every part
passes, so a PUT is never half applied.
Errors:
| Status | error | When |
|---|---|---|
| 422 | (plain message) | Unsettable axis, id not advertised, or a sort field with no coverage |
| 422 | unknown_vlm | The vlm default names an endpoint that does not exist |
| 422 | unknown_pack, unknown_profile | The pack or profile id does not exist; valid_ids is returned |
| 422 | validation_failed | The activation gate refused the pack, profile and VLM combination; report lists the issues |
| 409 | active_conflict | Another writer changed the activation first |
| 409 | project_archived | The project is archived |
Vocabulary
The vocabulary route returns every choice a configuration form needs in one call.
curl -s "$API/curation/projects/cars/config/vocabulary"
curl -s "$API/curation/projects/cars/config/vocabulary?include_other_projects=true"
The response contains:
| Field | Content |
|---|---|
detectors | Detector models in Triton and promoted models, with ready and source |
segmenters | Configured segmenter services with endpoint, status, masks, default score |
vlm | active endpoint and every registered endpoint with locality and status |
ocr | OCR detection, recognition and pipeline models |
text_reader_modes | Valid text reader modes, and whether each needs OCR or a VLM |
prompt_pack_calls | The VLM call ids a prompt pack must cover |
registry_classes | Active (not deprecated) classes of this project |
model_choices | The table below |
include_other_projects=true adds detector models other projects have
opted to share.

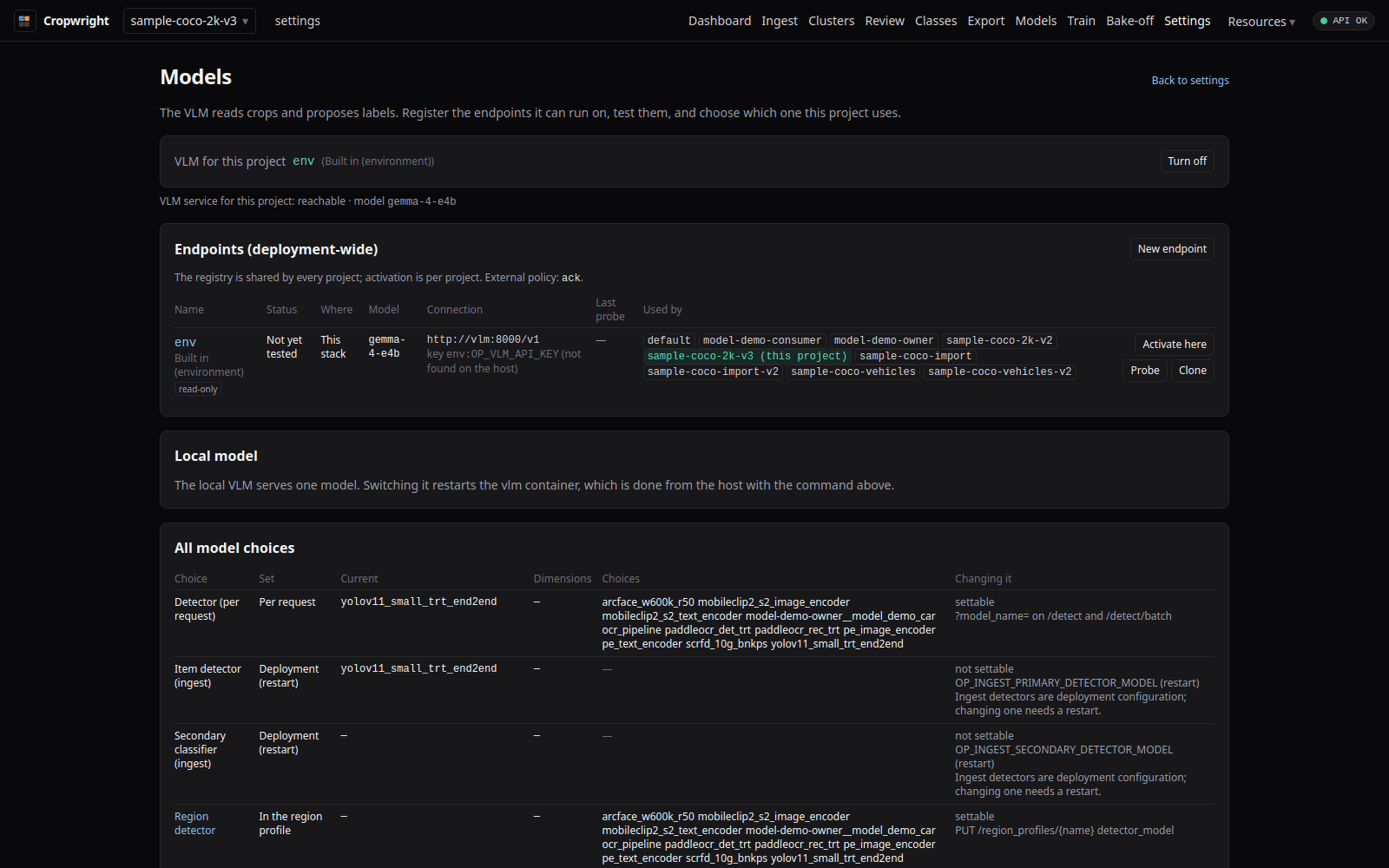

What can be set, and where
Each row of model_choices has role, scope, current, settable,
settable_via and, when not settable, reason.
| Role | Scope | Settable | How |
|---|---|---|---|
detect_model | per request | yes | model_name query parameter on the detect routes |
item_detector | deployment | no | OP_INGEST_PRIMARY_DETECTOR_MODEL, then restart |
secondary_classifier | deployment | no | OP_INGEST_SECONDARY_DETECTOR_MODEL, then restart |
region_detector | region profile | yes | detector_model in the region profile |
region_segmenter | deployment | no | OP_SEGMENTER_URL or OP_SEGMENTER_URLS; the prompt is per profile |
region_ocr | region profile | yes | OCR model fields in the region profile |
vlm | config store | yes | Activate an endpoint, or pass vlm per run |
local_vlm_model | deployment | only with an in-compose VLM | Select a catalog entry, then run the host command |
item_embedding, search_embedding | deployment | no | Changing them changes vector size and needs a re-index (future work) |
face_models | deployment | no | Fixed pipeline |
training_size | per run | yes | model_size when starting a training run |
Clone settings between projects
Copy configuration from one project into an existing active project
that has nothing in the way. A clone is a starting point, never a merge:
curl -s -X POST "$API/curation/projects/cars/clone_settings" \
-H 'Content-Type: application/json' \
-d '{"from": "default", "axes": ["classes", "prompt_packs", "keymap"], "expected_revision": 2}'
axes is optional. Valid axes are settings_defaults, classes,
activations, keymap, prompt_packs and vlm_activation. Omitted or
empty means all of them. The response is the project lifecycle envelope.
If a copied keymap action collides with a class hotkey in the target, the
whole keymap is skipped (the target's keymap is left unchanged) and each
colliding action is listed in keymap_clone_conflicts
(action_id, combo, class_id, class_name). Nothing is unbound
silently. The same options exist at create time through
clone_settings_from and clone_axes; see Projects.
Errors:
| Status | error | When |
|---|---|---|
| 404 | project_not_found | Target or source unknown |
| 409 | clone_source_not_ready | Source is not active or archived |
| 409 | target_not_empty | classes: target already has items. prompt_packs: target has stored packs. activations: target already has an active pack or profile, or a stored one with the same name |
| 409 | revision_conflict | expected_revision is stale |
| 422 | combine_invalid | Unknown axis, or source equals target |
| 422 | validation_failed | A copied activation fails its gate in the target |
Related environment values
Values that decide where per-project data lives are OP_PROJECTS_DATA_ROOT,
OP_PROJECT_INDEX_PREFIX and OP_STATE_DIR. VLM policy values are
OP_VLM_EXTERNAL_POLICY, OP_VLM_SECRETS_DIR and OP_LOCAL_VLM_ENDPOINT.
See Basic configuration and
Advanced configuration.
