Test on a crop
Before activating a prompt pack or region profile, run it against stored crops and read the result. Both test routes are dry runs: they write to no index, bump no revision and change no item. They return what the production code path would have produced.
API=http://localhost:4603 and project cars are assumed.
Concepts
- Draft or saved. The subject can be a saved pack or profile (by name and optional revision), a draft sent in the request body, or, when neither is given, the active one. Name and draft together are refused.
- VLM source. A pack test and a profile test with
verifycall a VLM. Usevlm_name(and optionalvlm_revision), avlm_draftendpoint body, or neither for the project's active endpoint. A draft or saved endpoint outside this deployment sends a real crop to a third party, so it needsacknowledge_external: true. The same URL policy and secret handling as VLM selection apply. - Bounded. At most 64 crop ids per pack test. Concurrent runs are capped per process (2 VLM runs and 4 segmenter runs); an over-cap request is refused at once, not queued. A run is stopped after 60 seconds.
- A parse failure is a result. When the model answers but the reply does
not parse, the call returns 200 with
parse_ok: false.
Routes
| Call | Purpose |
|---|---|
POST /curation/projects/{project}/prompt_packs/test | Run one VLM call of a pack over stored crops |
POST /curation/projects/{project}/region_profiles/test | Run a profile's detector and segmenter legs over one stored crop |

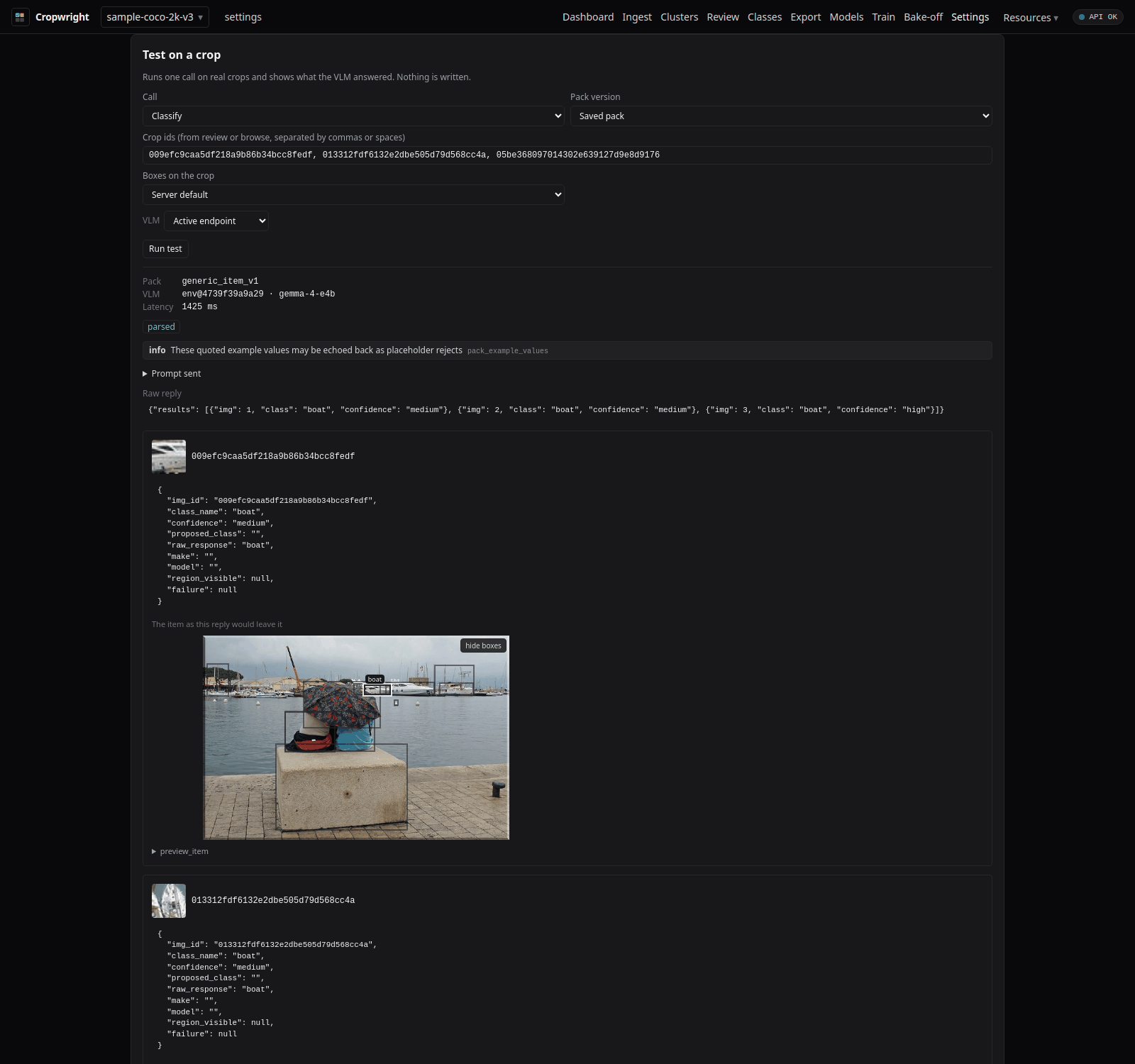

Test a prompt pack
curl -s -X POST "$API/curation/projects/cars/prompt_packs/test" \
-H 'Content-Type: application/json' \
-d '{
"pack_name": "vehicle_wheel",
"pack_revision": null,
"draft": null,
"call": "combined",
"crop_ids": ["CROP_A", "CROP_B"],
"use_region_box": "current",
"class_names": null,
"profile_name": "vehicle_wheel",
"vlm_name": null,
"vlm_revision": null,
"vlm_draft": null,
"acknowledge_external": false
}'
call is one of:
call | What it runs |
|---|---|
classify | Classify items into the class names |
open_classify | Classify, with a proposal for a new class when none fits |
combined | Classify and verify every stored region box in one call. Needs a region profile (the active one, or profile_name) |
region_verify | Verify one stored box per crop |
region_visible | Ask whether a region is visible at all (no write) |
assist | Classify and report the pack's item attributes. Needs a pack that declares item attributes (422 pack_declares_no_attributes) |
attributes | Report the pack's item attributes without classifying |
use_region_box applies to combined. current draws every stored box as
the numbered overlay, and none sends the crop with no boxes.
class_names overrides the class list; the default is the project's
registry. profile_name selects the profile that gates region text
(default: the active one).
The response has:
| Field | Content |
|---|---|
call, pack | What ran. pack is {name, revision, draft} |
vlm | {endpoint, model, name, revision, draft} of the endpoint that answered |
prompt | The system and user_text that were sent |
raw_reply, reasoning | The model's reply and its reasoning channel when it has one |
latency_ms | Round trip time |
parse_ok, parse_error | Whether the production parser accepted the reply |
results | One entry per crop: crop_id, box_id (for region_verify), parsed, preview_item, skipped |
validation | The pack's validation report against the profile |
preview_item is the item as the production write would leave it, in the
shared item wire format. It is null for region_visible, assist and
attributes (their answers are suggestions stored apart from the item, so
parsed is the whole result) and for a skipped item. skipped gives the reason, for example class_locked.

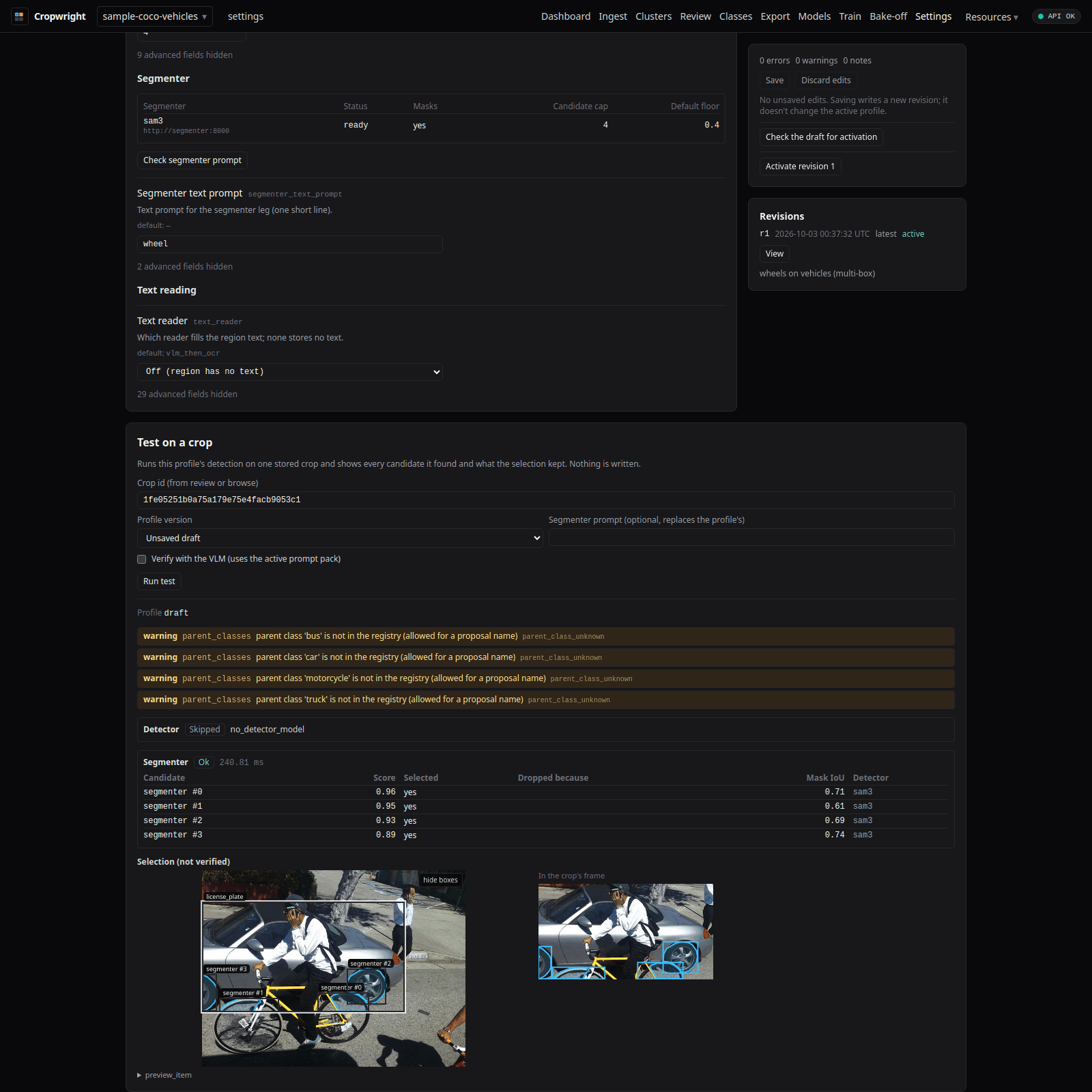

Test a region profile
curl -s -X POST "$API/curation/projects/cars/region_profiles/test" \
-H 'Content-Type: application/json' \
-d '{
"crop_id": "CROP_A",
"profile_name": "vehicle_wheel",
"profile_revision": null,
"draft": null,
"segmenter_text_prompt": "wheel, tire",
"verify": true,
"prompt_pack_name": "vehicle_wheel",
"prompt_pack_revision": null,
"prompt_pack_draft": null,
"vlm_name": null,
"acknowledge_external": false
}'
segmenter_text_prompt is a quick override of the profile's prompt for
this run, validated like any prompt. With verify true, the combined VLM
call also runs over the selected boxes, using the pack named by
prompt_pack_name, a prompt_pack_draft, or the active pack.
The response has:
| Field | Content |
|---|---|
profile | {name, revision, draft} |
item_eligible | True when the profile has no parent_classes, or the crop's class is one of them |
legs | One entry per leg (detector, segmenter) with status (ok, skipped, error), reason, elapsed_ms and candidates |
preview_item | The item as the worker would leave it |
preview_basis | selection_accepted (no VLM) or vlm_verdicts |
verify | The VLM call, when verify was true: prompt, reply, parse result and endpoint |
validation | The profile's validation report |
Each candidate is a complete region box (box_id is null, since ids are
assigned on write) with bbox_norm, bbox_in_parent, score,
detector, state, text fields and mask_polygon. It also says what the
selection did with it: selected, and a drop_reason of below_min_score,
nms or over_max. A leg that fails is reported on that leg with status
200. Only when no leg ran at all is the answer 502.
Errors
| Status | error | When |
|---|---|---|
| 404 | crop_not_found | A crop id the project does not have; crop_ids lists them |
| 404 | image_not_found | The crop's image cannot be read |
| 409 | no_active_profile | combined, or a profile test without a name or draft, and no profile is active |
| 409 | vlm_not_configured | No VLM is available for the call |
| 422 | validation_failed | No crop ids, or both a saved subject and a draft |
| 422 | too_many_crop_ids | More than 64 crop ids; limit is returned |
| 422 | too_many_crops | More crops than one VLM request carries |
| 422 | unknown_pack, unknown_revision, unknown_profile, unknown_vlm | The named subject does not exist |
| 422 | pack_invalid, profile_invalid | A draft with errors; report lists them |
| 422 | vlm_external_not_acknowledged | External endpoint without acknowledge_external |
| 422 | no_box_to_verify | region_verify on a crop with no stored box |
| 422 | no_class_names | classify on a project whose registry has no classes and no class_names in the request |
| 429 | test_busy | All run slots are taken; retry shortly |
| 502 | vlm_transport_error | The VLM endpoint failed |
| 502 | detector_error, segmenter_error | No leg of the profile ran |
| 504 | test_timeout | The run exceeded 60 seconds |
