Use your own domain

OpenProcessor is not tied to one image domain. Vehicles, medical imaging, biology, wildlife and industrial inspection use the same pipeline. You configure it with classes, a region profile, a prompt pack and a VLM endpoint instead of changing code. This page is the whole path for a new domain. The wheel example is the same path with real files, and this page uses it for its snippets. Replace the names with yours.

API=http://localhost:4603/curation/projects/<project> is assumed in the calls below, with the project you create in step 1.

Before you start​

You bring the models. At a minimum:

  • An item detector in Triton that proposes the objects you curate. A stock 80-class COCO YOLO works to start and keeps its full vocabulary (every detection is stored as an unlabeled proposal; do not set a class-id filter). Set OP_INGEST_PRIMARY_DETECTOR_MODEL. See Model export.
  • The PE image encoder (make export-pe). Without it, ingest writes no embeddings, and search, near-duplicate detection and clustering have nothing to work on.
  • Optional, for a region stage: the segmenter service (OP_SEGMENTER_URL), or a region detector you train yourself.
  • Optional: a VLM for verification and labeling.

1. Create a project​

curl -s -X POST http://localhost:4603/curation/projects \
  -H 'Content-Type: application/json' \
  -d '{"slug": "wheels", "display_name": "Wheels"}'
API=http://localhost:4603/curation/projects/wheels

Add clone_settings_from (and clone_axes) to start from another project's settings. See Projects.

2. Define classes​

Items are classed by name. Add only the classes you care about. A name matches ^[a-z0-9_]+$, and a duplicate is a 409.

for name in car wheel; do
  curl -s -X POST "$API/classes" -H 'Content-Type: application/json' \
    -d "{\"name\": \"$name\", \"group\": \"vehicle\"}"
done
curl -s "$API/classes"

Each class entry reports class_id, kind (item or region), sample_count, validated_count and trainable. A class can carry a hotkey_letter for the review UI; see Keymaps. POST /curation/projects/{project}/classes/seed_from_detector seeds the registry from the ingest detector's own label space (dry run by default, by name, idempotent). scripts/curation/seed_class_registry.py --model <detector.onnx> is the id-aligned variant for a model trained on your registry. A class is its name everywhere: import, combine, export, train and promote never carry a raw class index across a boundary.

3. Write a region profile (optional)​

Skip this step if your items are the whole object and need no sub-regions. A region profile says where to look inside an item. Start from examples/region_profiles/vehicle_wheel.json. Its key fields:

FieldWheel exampleMeaning
parent_classes["car"]The region stage runs only on items of these class names
segmenter_text_promptwheelWhat the segmenter is asked to find
detector_modelemptyNo detector leg until you train and promote one
max_regions_per_item4The box cap per item
text_readernoneA text-free region
region_class_namewheelThe class name used on export

Validate a draft, save it, and activate it:

BODY=$(jq '{name: "wheel_example", body: del(._comment, .name)}' \
  examples/region_profiles/vehicle_wheel.json)
curl -s -X POST "$API/region_profiles/validate" -H 'Content-Type: application/json' -d "$BODY"
curl -s -X POST "$API/region_profiles" -H 'Content-Type: application/json' -d "$BODY"
curl -s -X POST "$API/region_profiles/wheel_example/activate" \
  -H 'Content-Type: application/json' -d '{"expected_active": null}'

See Region profiles and Multi-box regions.

4. Write a prompt pack​

The pack holds what the VLM is told to look for and how to answer. Start from examples/prompt_packs/vehicle_wheel.json (or general_objects.json, the same with three plain item attributes), or from the built-in generic packs. The reply keys the pack must keep are listed by GET /curation/projects/{project}/prompt_packs/schema.

BODY=$(jq '{name: "wheel_example", body: del(._comment, .name)}' \
  examples/prompt_packs/vehicle_wheel.json)
curl -s -X POST "$API/prompt_packs" -H 'Content-Type: application/json' -d "$BODY"
curl -s -X POST "$API/prompt_packs/wheel_example/activate" \
  -H 'Content-Type: application/json' -d '{"expected_active": null}'

Before activating, try the pack on a few stored crops without writing anything. See Prompt packs and Test on a crop.

5. Choose a VLM endpoint​

Register one, probe it, and activate it for the project. Without an active endpoint the worker keeps the segmenter's boxes unverified.

curl -s -X POST http://localhost:4603/curation/vlm/endpoints \
  -H 'Content-Type: application/json' \
  -d '{"name": "host-vlm", "body": {"base_url": "http://host.docker.internal:8012/v1", "model": "my-vision-model"}}'
curl -s -X POST http://localhost:4603/curation/vlm/endpoints/host-vlm/probe
curl -s -X POST "$API/vlm/endpoints/host-vlm/activate" \
  -H 'Content-Type: application/json' -d '{}'

The built-in env endpoint (OP_VLM_URL, OP_VLM_MODEL) is one a project opts into by activating it; a new project calls no VLM until then. See VLM selection.

6. Ingest or import​

Put images where the API and the detection worker can read them. Both mount OP_SOURCE_ROOT_HOST at /data/source.

curl -s -X POST "$API/ingest/batch" -H 'Content-Type: application/json' \
  -d '{"items": [{"path": "/data/source/my_images/001.jpg", "source": "my_images"}]}'
curl -s "$API/ingest/region_drain"     # repeat until "drained" is true

GET /curation/projects/{project}/ingest/config lists the accepted source roots. scripts/curation/bulk_ingest.py ingests a whole folder or a manifest as a resumable run.

If you already have a labeled YOLO or COCO dataset, or an OpenProcessor export, import it instead. Classes are mapped by name. See Dataset import. To merge several projects, see Combine projects.

After you change a profile or pack, apply it to existing items with Reprocess.

7. Review​

Open the project in a frontend such as Cropwright, or use the routes:

curl -s "$API/review/tabs"
curl -s "$API/review/<tab>?page_size=50"
curl -s -X PUT "$API/crops/CROP_ID/label" -H 'Content-Type: application/json' \
  -d '{"class_id": 0}'

GET /curation/projects/{project}/review/tabs lists every tab with its filters. Confirm, move, add or reject region boxes with the multi-box region routes. Cluster the items to label many at once, and mark false positives. Every human edit is locked: automated stages never overwrite it.

8. Export and train​

Freeze a test holdout first, so models are scored on items they never train on:

curl -s -X POST "$API/test_holdout/freeze" -H 'Content-Type: application/json' \
  -d '{"percent": 10}'

Then export. A multi-class dataset:

curl -s -X POST "$API/export/yolo" -H 'Content-Type: application/json' -d '{}'

Or one class or a subset. For a region class, positives are the accepted region boxes, cropped to their parent item:

curl -s -X POST "$API/export/single_class" -H 'Content-Type: application/json' \
  -d '{"profile_name": "wheels", "box_source": "region", "region_class_name": "wheel",
       "image_mode": "item_crop", "class_ids": []}'

Train with the trainer service (docker compose --profile training up -d curation-trainer), after a preflight check:

curl -s -X POST "$API/train/preflight" -H 'Content-Type: application/json' -d '{}'
curl -s -X POST "$API/train/start" -H 'Content-Type: application/json' -d '{
  "model_family": "yolo26", "model_size": "s", "profile": "small",
  "hyperparameters": {"epochs": 70, "imgsz": 640, "batch": 16}
}'
curl -s "$API/train/runs"

start returns 201 with job_id and the preflight report. A blocking preflight check is a 422 unless force=true. Copy the profile defaults from GET /curation/projects/{project}/train/profiles into hyperparameters. When the run finishes, promote it to Triton:

curl -s --max-time 300 -X POST "$API/train/promote/JOB_ID?wait=true" -H 'Content-Type: application/json' \
  -d '{"triton_name": "wheel_detector", "force": false}'

Promote is gated on the run's metrics; force bypasses the gate and goes in the JSON body (as above) or as ?force=true on the URL. A subset or single-class run needs its class remap, and promote refuses rather than serve the full registry as if it were the trained subset. After promoting a region detector, set detector_model in the region profile to its Triton name, then reprocess. To compare detectors, use the bake-off routes under /curation/projects/{project}/bakeoff/. See Training and promote and Curation workflow.

Cropwright​

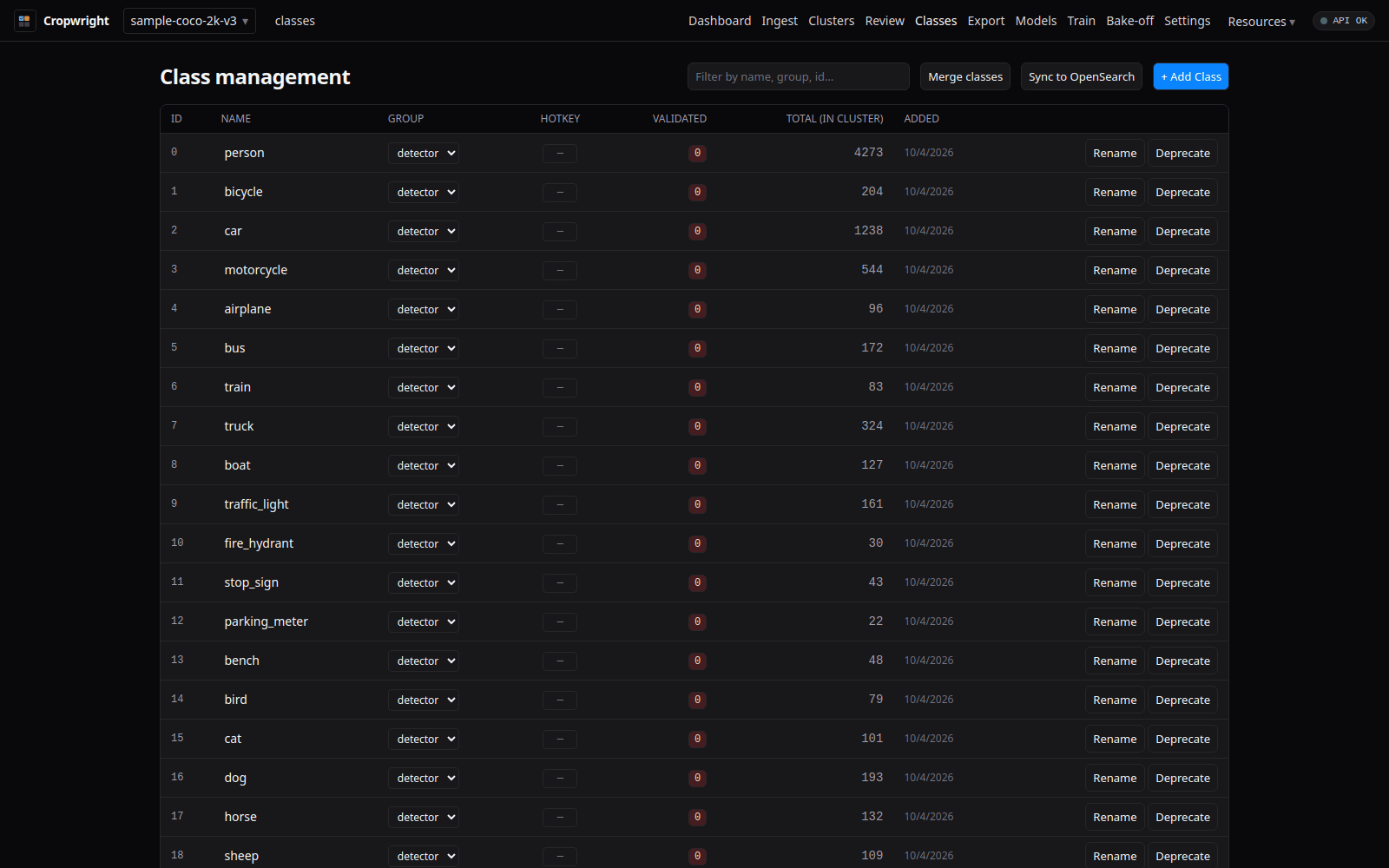

The class list (captured from Cropwright against the public COCO sample projects)

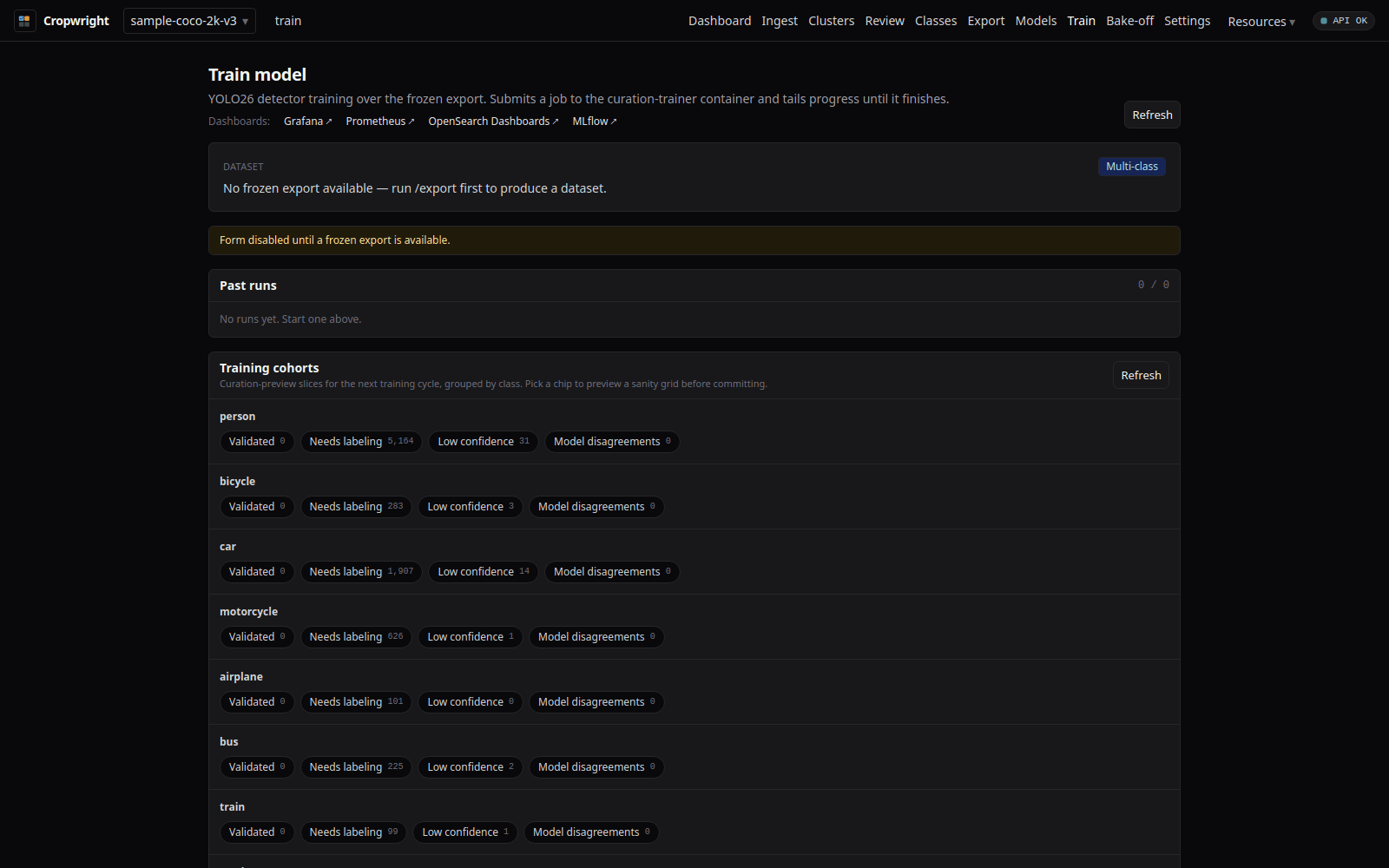

The training page (captured from Cropwright against the public COCO sample projects)

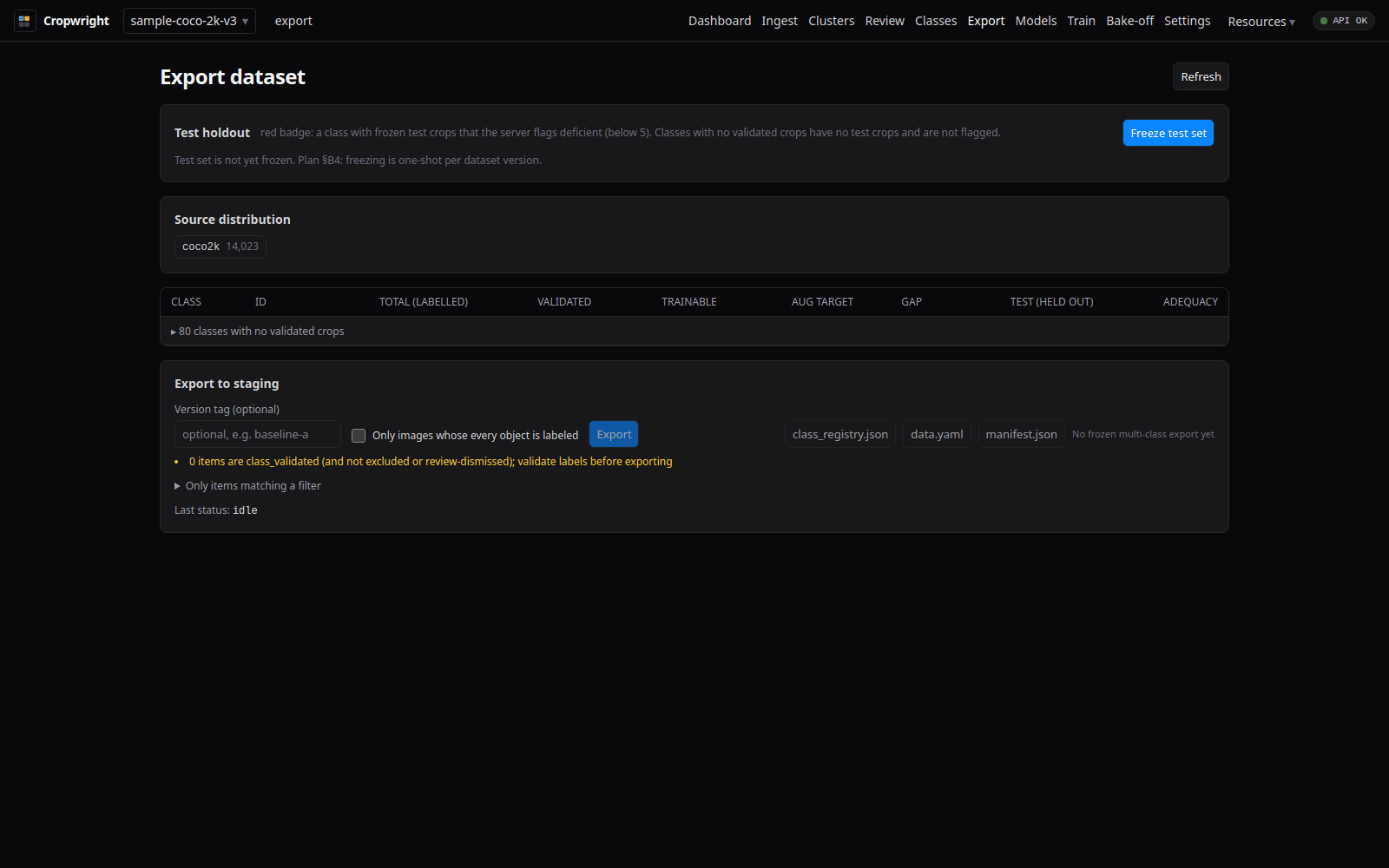

The export page (captured from Cropwright against the public COCO sample projects)
