Worked example: wheels on cars

A complete public example of the whole pipeline. The primary detector finds cars in public photos. The region stage then finds the wheels on each car, each wheel on its own. Everything it needs ships in the repository, and the photos come from COCO (CC BY).

COCO has no wheel labels. The output is machine-proposed wheel boxes that a person reviews. That is the point of the example.

What each file does

File	Role
examples/region_profiles/vehicle_wheel.json	Region profile. The segmenter is prompted with wheel inside each item whose class name is car (parent_classes). detector_model is empty, so there is no detector leg until you train and promote one. max_regions_per_item is 4 and text_reader is none (a text-free region). region_class_name is wheel, and the display names are Wheels and Wheel. auto_confirm_area_frac is [0.005, 0.5], and the text hint is off
examples/prompt_packs/vehicle_wheel.json	Prompt pack. It asks the VLM to classify a car crop and to verify each numbered candidate box as a wheel (tire plus rim). Nothing in it asks the VLM to read text. It names the per-box reply keys a multi-box profile needs
examples/bakeoff/vehicle_wheel/profile.json	Bake-off profile, for comparing wheel detectors you train later. class_names is ["wheel"], and the COCO car class (id 2) is the context class, so wheels are scored only inside detected cars. triton_model is empty: set it to your promoted wheel detector
scripts/examples/wheel_example_live.py	A runnable walk through the steps below against a live stack
tests/integration/test_wheel_example_e2e.py	The same walk offline, with fakes at the OpenSearch, Triton, segmenter and VLM boundaries
Makefile target sample-coco-cars	Fetches the 60 car photos

The profile selects items by class name. parent_classes (car) matches an item's class_name, or the detector's own label (proposal_name). A raw class index is never used.

Prerequisites

• The core stack and the curation workers are up, the PE encoders are built, and the primary detector is loaded in Triton. A stock COCO YOLO is enough. See Quick start.
• The segmenter service is running (OP_SEGMENTER_URL).
• A VLM endpoint is registered and activated for the project, unless you accept the segmenter's boxes unverified. See VLM selection. Without an active endpoint the boxes stay unverified.
• The image folder is mounted read-only at the same path in api and in the detection worker. By default OP_SOURCE_ROOT_HOST (default ./data/source) is mounted at /data/source. If only the API has the mount, ingest succeeds but every later worker read fails.

Run it with the script

make sample-coco-cars      # 60 CC BY car images into data/samples/coco_car
.venv/bin/python scripts/examples/wheel_example_live.py \
    --api http://localhost:4603 --project wheels \
    --container-dir /data/source/coco_car/images

--container-dir is the image folder as the API container sees it. It must be reachable through OP_SOURCE_ROOT_HOST; for example, set OP_SOURCE_ROOT_HOST=./data/samples so that data/samples/coco_car/images appears as /data/source/coco_car/images. --host-dir (default data/samples/coco_car/images) is where the script lists the files on the host. Other flags: --api-prefix (default /curation) and --drain-timeout (seconds to wait for the region queue, default 1800).

The script performs these steps, and each is also a plain HTTP call:

1. Create project wheels and the classes car and wheel.
2. Save the example profile and the example prompt pack under the name wheel_example and activate both.
3. Ingest the images in batches of 16. The primary detector proposes the cars.
4. Poll the region queue until it is drained.
5. Export the wheel boxes, cropped to their car.

The same steps by hand

API=http://localhost:4603/curation/projects/wheels

curl -s -X POST http://localhost:4603/curation/projects \
  -H 'Content-Type: application/json' \
  -d '{"slug": "wheels", "display_name": "Wheels"}'

for name in car wheel; do
  curl -s -X POST "$API/classes" -H 'Content-Type: application/json' \
    -d "{\"name\": \"$name\"}"
done

BODY=$(jq '{name: "wheel_example", body: del(._comment, .name)}' \
  examples/region_profiles/vehicle_wheel.json)
curl -s -X POST "$API/region_profiles" -H 'Content-Type: application/json' -d "$BODY"
curl -s -X POST "$API/region_profiles/wheel_example/activate" \
  -H 'Content-Type: application/json' -d '{"expected_active": null}'

BODY=$(jq '{name: "wheel_example", body: del(._comment, .name)}' \
  examples/prompt_packs/vehicle_wheel.json)
curl -s -X POST "$API/prompt_packs" -H 'Content-Type: application/json' -d "$BODY"
curl -s -X POST "$API/prompt_packs/wheel_example/activate" \
  -H 'Content-Type: application/json' -d '{"expected_active": null}'

curl -s -X POST "$API/ingest/batch" -H 'Content-Type: application/json' \
  -d '{"items": [{"path": "/data/source/coco_car/images/IMAGE.jpg", "source": "coco_car"}]}'

curl -s "$API/ingest/region_drain"

curl -s -X POST "$API/export/single_class" -H 'Content-Type: application/json' \
  -d '{"profile_name": "wheels", "box_source": "region", "region_class_name": "wheel",
       "image_mode": "item_crop", "class_ids": []}'

The jq expression drops _comment and name, which are not part of the body. Activation fails with 422 if the pack and profile do not pair. The profile allows up to 4 boxes per item, so the pack must name the per-box reply keys; the example pack does. Run POST /curation/projects/{project}/region_profiles/validate and POST /curation/projects/{project}/prompt_packs/validate on a draft before saving it. The routes are described in Region profiles and Prompt packs.

GET /curation/projects/{project}/ingest/region_drain returns drained, pending_detection, pending_verification, total_unfinished, stable_for_s and stall_reason. Repeat until drained is true.

To try the profile on one stored crop before ingesting everything, use the test routes in Test on a crop.

Re-run the segmenter on chosen crops

To re-segment three crops and verify the new boxes with the run's own VLM:

curl -s -X POST "$API/assist/runs" -H 'Content-Type: application/json' \
  -d '{"target": {"kind": "crops", "crop_ids": ["car_1", "car_2", "car_3"]},
       "actions": ["segment", "verify"], "segment": {"verify": "none"}, "dry_run": false}'

The run is waiting_region while the region worker segments, then judges the new boxes.

What you should see

• Items proposed as car carry a region_boxes list of up to four wheel boxes, each with its own state, score and detector. With a VLM, a verified box is accepted and a wrong one rejected. See Multi-box regions.
• Wheel boxes have no text fields, since the profile is text-free.
• The export call answers with export_dir, positive_images, split_counts and the integrity envelope. Positives are the accepted wheel boxes. Each is cropped to its car (image_mode: item_crop). Rejected boxes are not exported. Boxes a person marked as false positives become hard negatives.
• The wheel boxes are for review. Confirm, move, add or reject them in a frontend, or with the region routes, then export again.

Run the offline version

The same walk runs in CI with fakes at the boundary and needs no GPU or stack:

.venv/bin/python -m pytest tests/integration/test_wheel_example_e2e.py -v

It creates the project through the lifecycle route, imports a small synthetic fixture, runs the region worker against the example profile and exports. At every step it asserts that a sibling project (default) is never touched, and that class identity is the name, never an index.

Next steps

Review and correct the wheel boxes, export, and train a wheel detector. After promoting it, set detector_model in the profile to its Triton name to add the detector leg, and compare it with others using the bake-off profile. See Use your own domain and Training and promote.

Cropwright

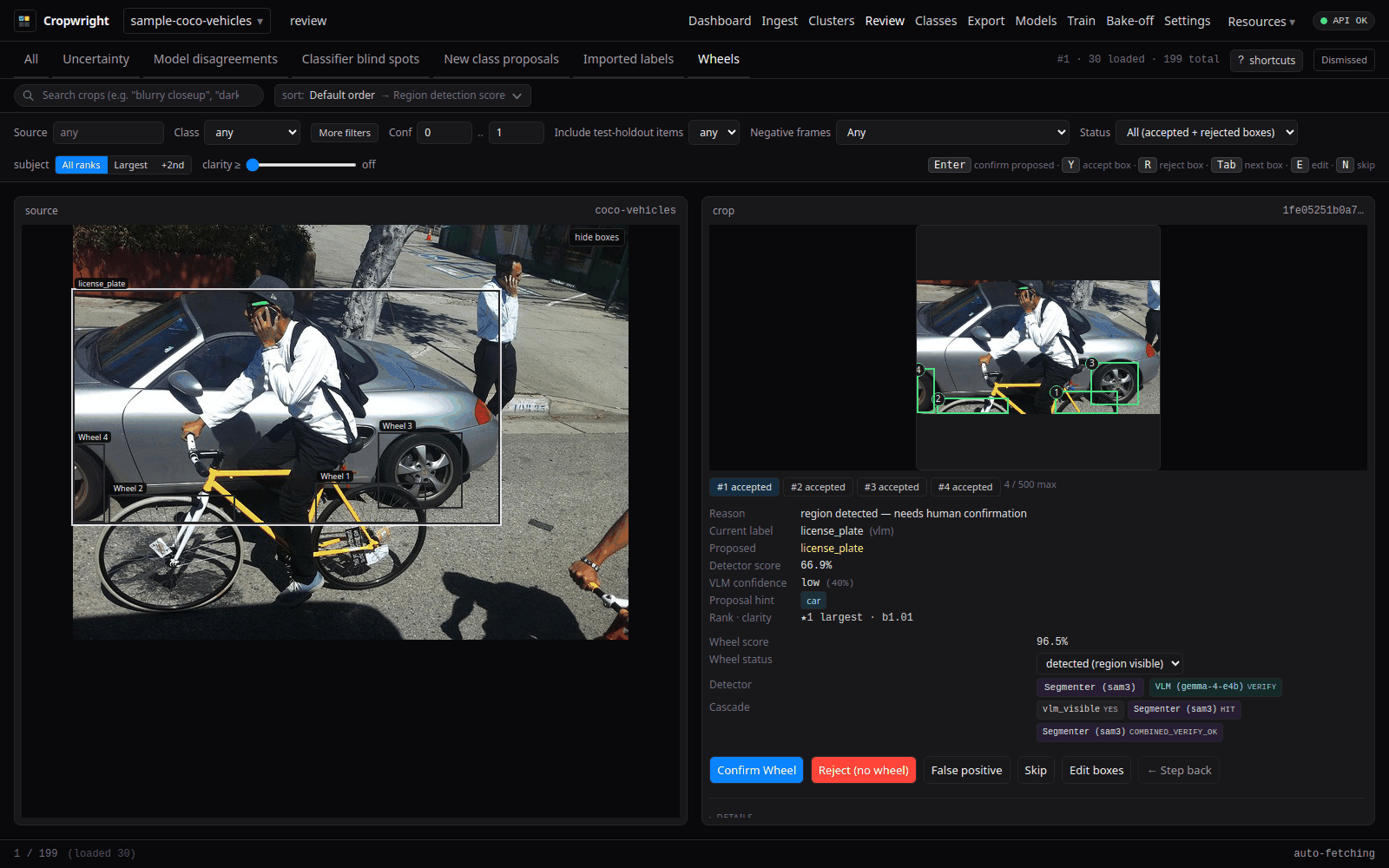

The Wheels review tab with numbered wheel boxes on a vehicle crop (captured from Cropwright against the public COCO sample projects)

See also
